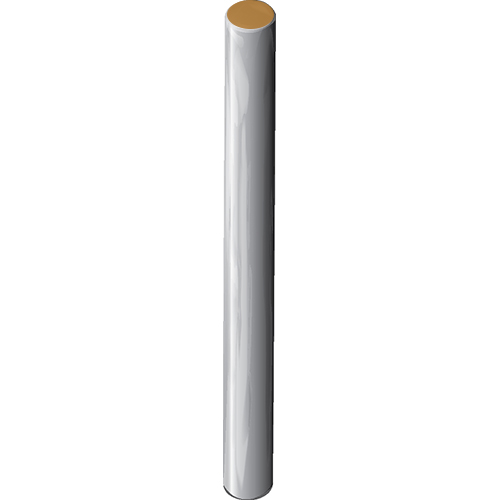

Bus Bar Wire, #22 Sol TC
Bus Bar Wire, 22AWG (Solid) Tinned Copper, QQ-W-343G
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
8021 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 8021 000100 | None | Reel | 100 ft | 612825194347 | Order online |
| 8021 0001000 | None | Reel | 1,000 ft | 612825194354 | Order online |
Specifications
Product Overview
| Suitable Applications | bus bar |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.025 in (0.64 mm) |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 22 AWG |
| Stranding | Solid |
| Material | TC - Tinned Copper |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 16.3 Ohm/1000ft |
|---|---|
| Max. Current | Single conductor in free air @ 30oC: 18 A |
Voltage
| UL Voltage Rating | 600 V RMS |
|---|
Mechanical Characteristics
| Max. Pull Tension | 5 lbs (2.3 kg) |
|---|---|
| Bulk Cable Weight | 2 lbs/1000ft |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -40°C To +80°C |
Bend Radius
| Stationary Min. | 0.25 in (6.4 mm) |
|---|---|
| Installation Min. | 0.25 in (6.4 mm) |
Standards and Compliance
| Environmental Suitability | Outdoor |
|---|---|
| Sustainability | CA Prop 65 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
History
| Update and Revision | Revision Number: 0.453 Revision Date: 02-20-2026 |
|---|
