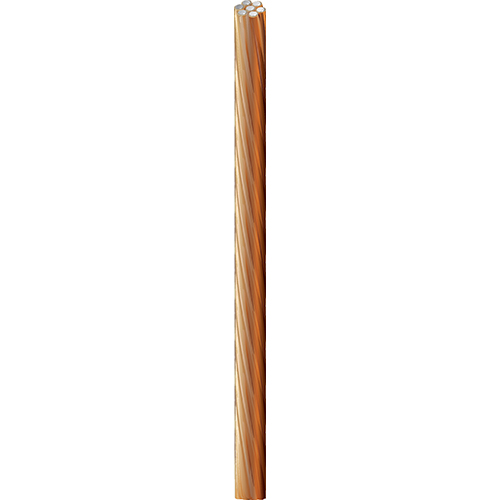

Antenna Wire, #14 Str BCCS
Antenna Wire, 14AWG (7x22) Bare Copper Covered Steel
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
8000 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Put-Up Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 8000 000100 | None | Reel | 100 ft | 612825192633 | Order online |
| 8000 0001000 | None | Reel | 1,000 ft | 612825192640 | Order online |
Specifications
Product Overview
| Suitable Applications | antenna |
|---|
Physical Characteristics (Overall)
| Conductor Count | 1 |
|---|
Conductor
| AWG | 14 |
|---|---|
| Stranding | 7x22 |
| Material | BCCS - Bare Copper Covered Steel |
| No. of Conductors | 1 |
Mechanical Characteristics
| Bulk Cable Weight | 13.3 lbs/1000ft |
|---|---|
| Maximum Recommended Pulling Tension | 180 lbs |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| CA Prop 65 | Yes |
| MII Order #39 (China RoHS) | Yes |
Plenum/Non-Plenum
| Plenum (Y/N) | No |
|---|
History
| Update and Revision | Revision Number: 0.344 Revision Date: 02-03-2025 |
|---|
