Product Number: 39110

Lead Wire, #10 Str TC, PPO Ins, AWM 11028

Name: Belden 39110
Brand: Belden
SKU: 39110

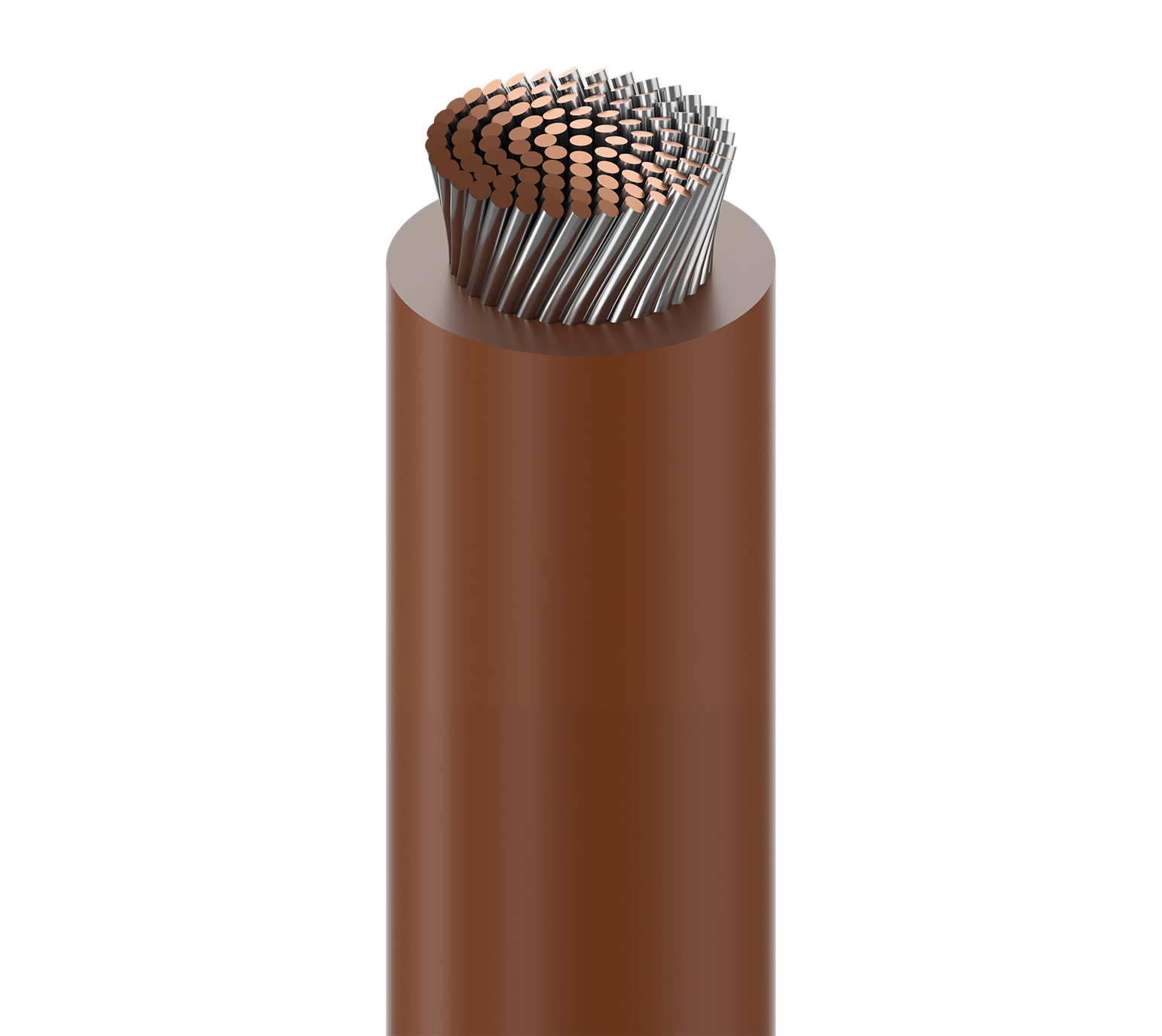

Low Temp Plastic Lead Wire, 10AWG (105x30) Tinned Copper, PPO Insulation, AWM 11028 600V 105C VW-1

Ships from and sold by A5 IT.

Part numbers

39110 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
39110 010100	Black	Reel	100 ft	612825148128	C	Order online
39110 0101000	Black	Reel	1,000 ft	612825148135	C	Order online
39110 0105000	Black	Reel	5,000 ft	612825148142	C	Order online
39110 013100	Blue, Dark	Reel	100 ft	612825148159	C	Order online
39110 0135000	Blue, Dark	Reel	5,000 ft	612825148173	C Z	Order online
39110 001100	Brown	Reel	100 ft	612825147886	—	Order online
39110 0011000	Brown	Reel	1,000 ft	612825147893	C	Order online
39110 0015000	Brown	Reel	5,000 ft	612825147909	C Z	Order online
39110 008100	Gray	Reel	100 ft	612825148067	C	Order online
39110 0085000	Gray	Reel	5,000 ft	612825148081	C Z	Order online
39110 0051000	Green, Dark	Reel	1,000 ft	612825148012	C	Order online
39110 0055000	Green, Dark	Reel	5,000 ft	612825148029	C Z	Order online
39110 189100	Green, Yellow Stripe	Reel	100 ft	612825148180	C	Order online
39110 1895000	Green, Yellow Stripe	Reel	5,000 ft	612825148203	C Z	Order online
39110 003100	Orange	Reel	100 ft	612825147947	C	Order online
39110 0035000	Orange	Reel	5,000 ft	612825147961	C Z	Order online
39110 002100	Red	Reel	100 ft	612825147916	C	Order online
39110 0021000	Red	Reel	1,000 ft	612825147923	C	Order online
39110 0025000	Red	Reel	5,000 ft	612825147930	C	Order online
39110 007100	Violet	Reel	100 ft	612825148036	C	Order online
39110 0075000	Violet	Reel	5,000 ft	612825148050	C Z	Order online
39110 009100	White	Reel	100 ft	612825148098	C	Order online
39110 0095000	White	Reel	5,000 ft	612825148111	C Z	Order online
39110 004100	Yellow	Reel	100 ft	612825147978	—	Order online
39110 0045000	Yellow	Reel	5,000 ft	612825147992	C Z	Order online

Suitable Applications	Electrical panel builders, Electrical/electronic manufacturers, Appliance manufacturers, Furniture, Computer manufacturers, Automotive companies and their sub-suppliers

Overall Cable Diameter (Nominal)	0.134 in (3.40 mm)

Nom. Conductor DCR	1.05 Ohm/1000ft (3.44 Ohm/km)
Max. Current	Single conductor in free air @ 30oC: 67 A

UL Voltage Rating	600 V RMS

Max. Pull Tension	99 lbs (45 kg)
Bulk Cable Weight	37 lbs/1000ft (55 kg/km)

UL Temperature	105°C
Operating	-40°C To +105°C Dry

Stationary Min.	1.34 in (34.0 mm)
Installation Min.	1.34 in (34.0 mm)

Environmental Suitability	Indoor, Outdoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	VW-1
AWM Compliance	AWM 11028
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Notes	Halogen-free.

Update and Revision	Revision Number: 0.643 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
