Product Number: 37501

Lead Wire, #1 Str TC, EPDM Ins, AWM 3499

Name: Belden 37501
Brand: Belden
SKU: 37501

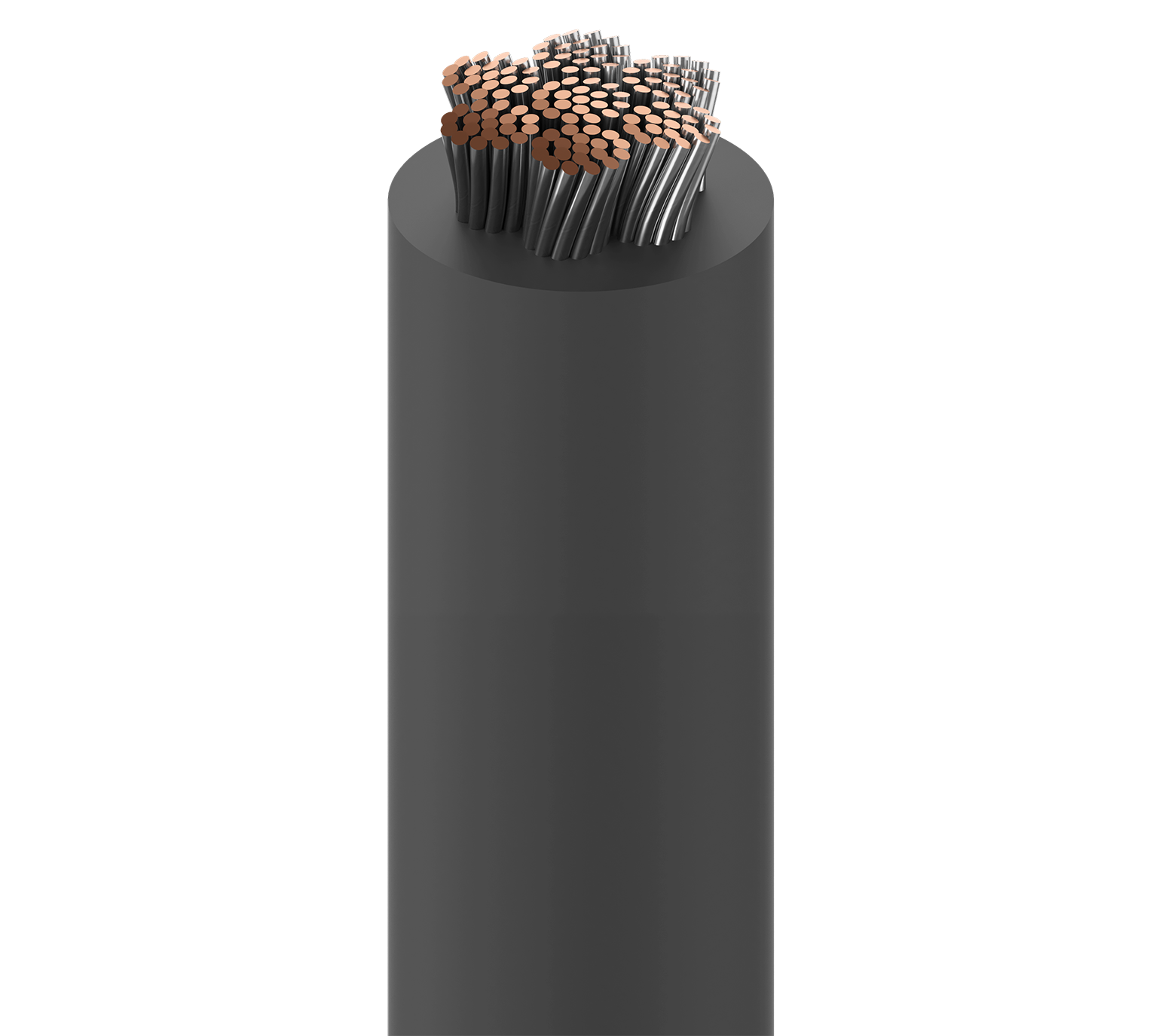

Rubber Lead Wire, 1AWG (210x24) Tinned Copper, EPDM Insulation, AWM 3499 7500V 150C

Ships from and sold by A5 IT.

Part numbers

37501 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
37501 01050	Black	Reel	50 ft	612825147244	C	Order online
37501 010500	Black	Reel	500 ft	612825147251	C F	Order online

Suitable Applications	internal wiring of appliances, high voltage and high temperature applications

Overall Cable Diameter (Nominal)	0.638 in (16.2 mm)

Material	EPDM - Ethylene Propylene Diene Monomer
Nom. Thickness	0.131 in (3.33 mm)
Nom. Insulation Diameter	0.638 in (16.2 mm)

Nom. Conductor DCR	0.143 Ohm/1000ft
Max. Current	297.6 Amps per Conductor at 30oC

UL Voltage Rating	7500 V (AWM 3499)

Max. Pull Tension	1085 lbs (492.1 kg)
Bulk Cable Weight	391 lbs/1000ft

UL Temperature	150°C
Operating	-55°C To +150°C

Stationary Min.	6.38 in (162 mm)
Installation Min.	6.38 in (162 mm)

Environmental Suitability	Indoor, Outdoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	Horizontal flame
AWM Compliance	AWM 3499
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Notes	Separator material over conductor.

Update and Revision	Revision Number: 0.484 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
