Product Number: 34414

Lead Wire, #14 Str TC, CSPE Ins, AWM 3191

Name: Belden 34414
Brand: Belden
SKU: 34414

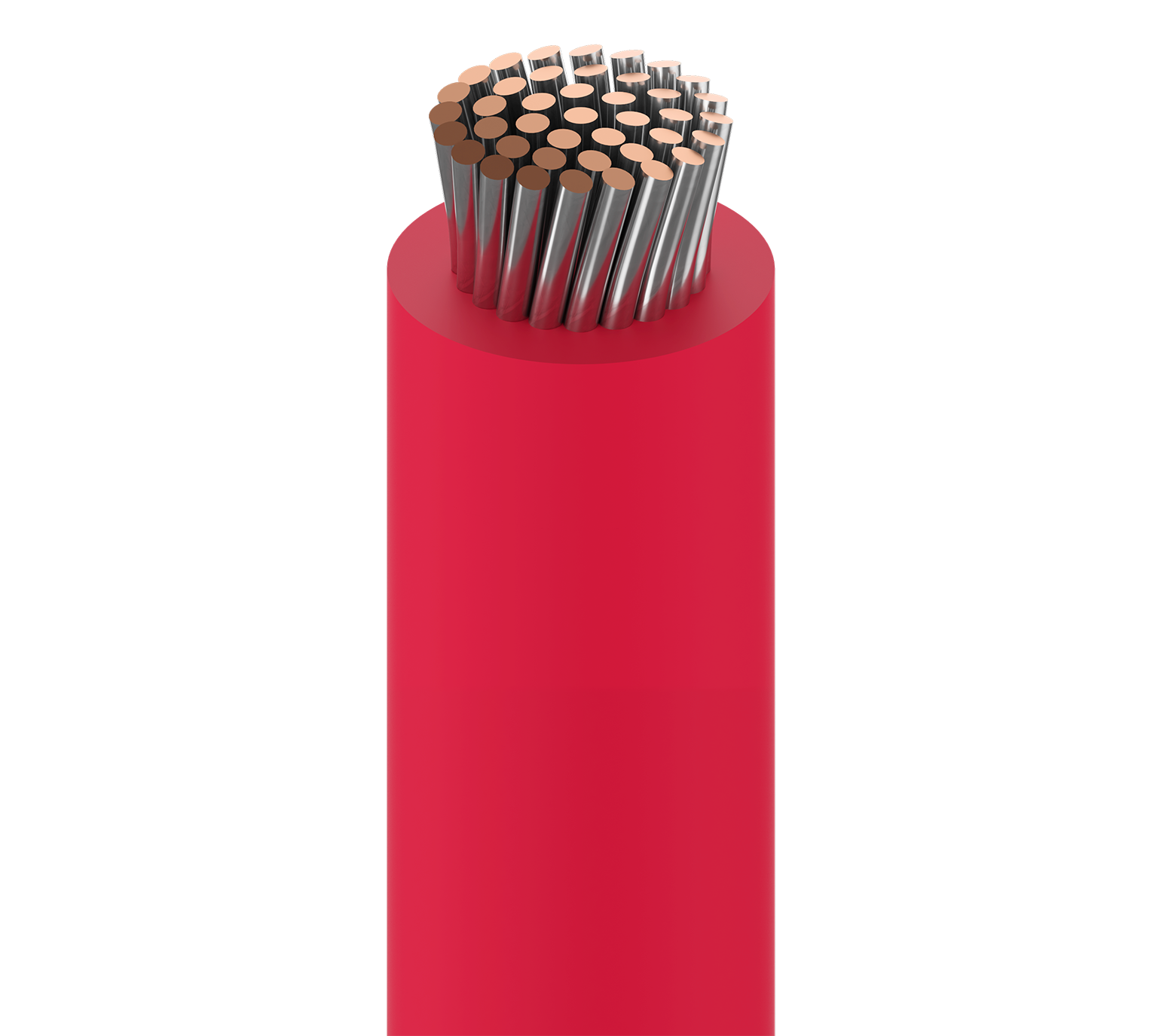

Low Temp Rubber Lead Wire, 14AWG (41x30) Tinned Copper, CSPE Insulation, AWM 3191 CSA TYPE CL1053 600V 105C

Ships from and sold by A5 IT.

Part numbers

34414 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
34414 010100	Black	Reel	100 ft	612825143956	Order online
34414 010500	Black	Reel	500 ft	612825143970	Order online
34414 0104000	Black	Reel	4,000 ft	612825143963	Order online
34414 008500	Gray	Reel	500 ft	612825143949	Order online
34414 0084000	Gray	Reel	4,000 ft	612825143932	Order online
34414 005500	Green, Dark	Reel	500 ft	612825143925	Order online
34414 002500	Red	Reel	500 ft	612825143918	Order online

Suitable Applications	Class 130(B) motor lead systems, internal wiring of appliances, oil resistance applications

Overall Cable Diameter (Nominal)	0.170 in (4.32 mm)

Material	CSPE - Chlorosulphonated Polyethylene
Nom. Thickness	0.048 in (1.2 mm)
Nom. Insulation Diameter	0.17 in (4.3 mm)

Nom. Conductor DCR	2.73 Ohm/1000ft
Max. Current	46.4 Amps per Conductor at 30oC

UL Voltage Rating	600 V (AWM 3191)

Max. Pull Tension	53.3 lbs (24.2 kg)
Bulk Cable Weight	26 lbs/1000ft

UL Temperature	105°C
Operating	-30°C To +105°C

Stationary Min.	1.7 in (43 mm)
Installation Min.	1.7 in (43 mm)

Environmental Suitability	Indoor, Outdoor, Oil Resistance
Sustainability	CA Prop 65
Flammability / Reaction to Fire	Horizontal flame
AWM Compliance	AWM 3191
CEC / C(UL) Compliance	CL-1053.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Notes	Separator material over conductor.

Update and Revision	Revision Number: 0.467 Revision Date: 02-20-2026
Footnote	F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'., C - CRATE REEL PUT-UP., I - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'., U - TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10,000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE)
