Product Number: 34408

Lead Wire, #8 Str TC, CSPE Ins, AWM 3192

Name: Belden 34408
Brand: Belden
SKU: 34408

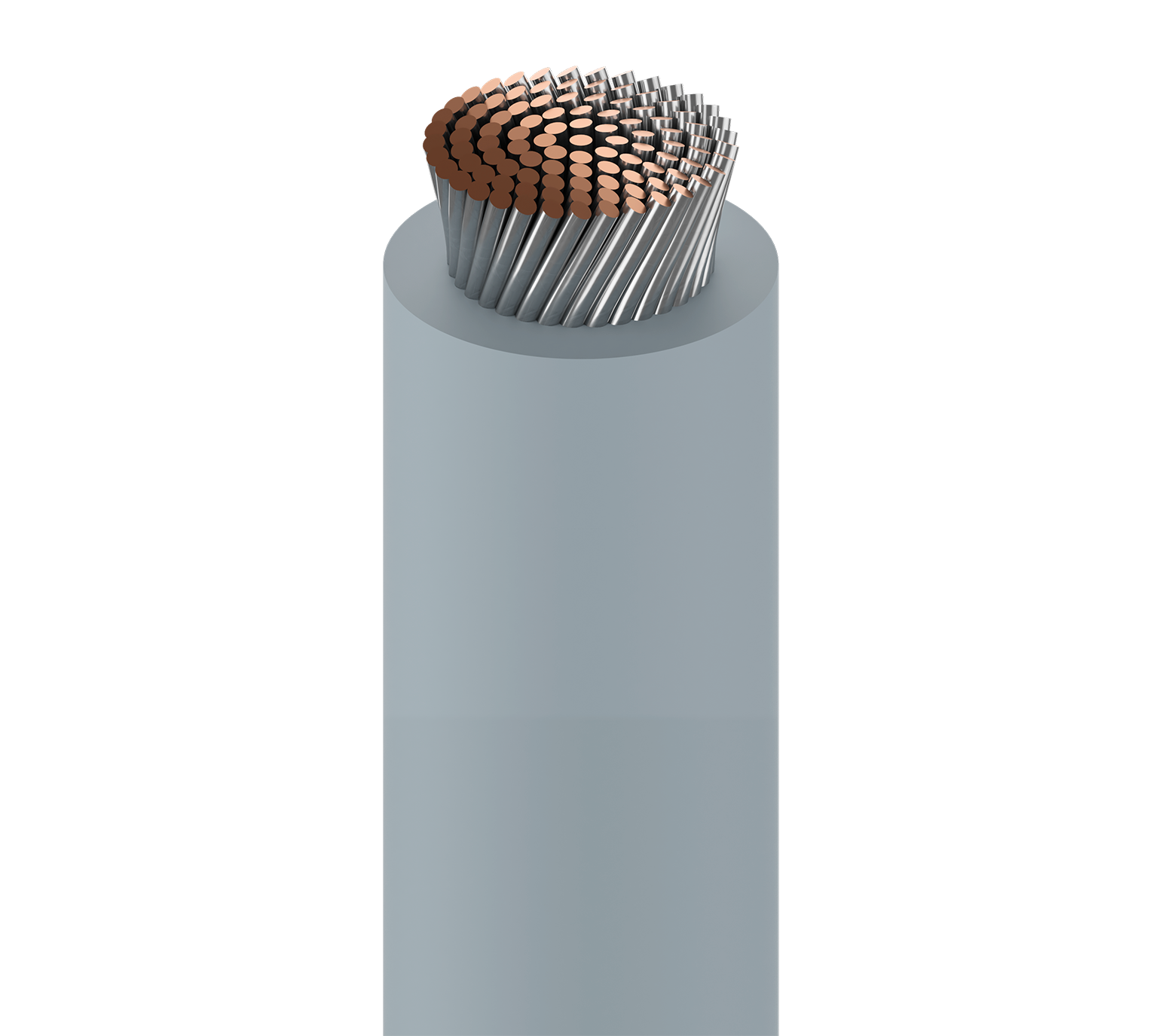

Low Temp Rubber Lead Wire, 8AWG (84x27) Tinned Copper, CSPE Insulation, AWM 3192 CSA TYPE CL1052 600V 105C

Ships from and sold by A5 IT.

Part numbers

34408 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
34408 010100	Black	Reel	100 ft	612825143802	Order online
34408 010250	Black	Reel	250 ft	612825143819	Order online
34408 008250	Gray	Reel	250 ft	612825143796	Order online

Suitable Applications	Class 130(B) motor lead systems, internal wiring of appliances, oil resistance applications

Overall Cable Diameter (Nominal)	0.290 in (7.37 mm)

Material	CSPE - Chlorosulphonated Polyethylene
Nom. Thickness	0.067 in (1.7 mm)
Nom. Insulation Diameter	0.29 in (7.4 mm)

Nom. Conductor DCR	0.708 Ohm/1000ft
Max. Current	102.4 Amps per Conductor at 30oC

UL Voltage Rating	600 V (AWM 3192)
Voltage Rating	300 V (CSA CL-1052)

Max. Pull Tension	210 lbs (95 kg)
Bulk Cable Weight	83 lbs/1000ft

UL Temperature	105°C
Operating	-30°C To +105°C

Stationary Min.	2.9 in (74 mm)
Installation Min.	2.9 in (74 mm)

Environmental Suitability	Indoor, Outdoor, Oil Resistance
Sustainability	CA Prop 65
Flammability / Reaction to Fire	Horizontal flame
AWM Compliance	AWM 3192
CEC / C(UL) Compliance	CL-1052.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
