Product Number: 34401

Lead Wire, #1 Str TC, CSPE Ins, AWM 3193

Name: Belden 34401
Brand: Belden
SKU: 34401

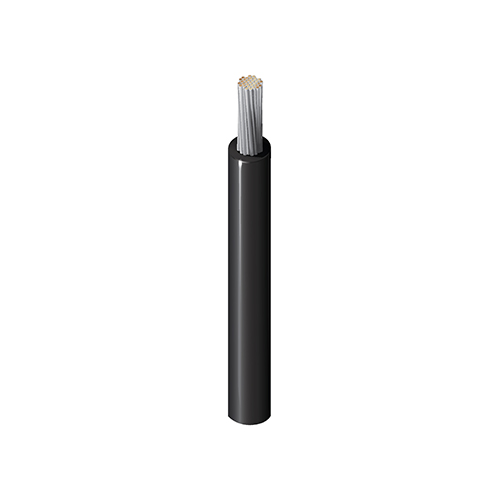

Low Temp Rubber Lead Wire, 1AWG (210x24) Tinned Copper, CSPE Insulation, AWM 3193 CSA TYPE CL1052 600V 105C

Ships from and sold by A5 IT.

Part numbers

34401 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
34401 01050	Black	Reel	50 ft	612825143673	Order online
34401 010100	Black	Reel	100 ft	612825143659	Order online
34401 010250	Black	Reel	250 ft	612825143666	Order online

Suitable Applications	Class 130(B) motor lead systems, internal wiring of appliances, oil resistance applications

Overall Cable Diameter (Nominal)	0.557 in (14.1 mm)

Material	CSPE - Chlorosulphonated Polyethylene
Nom. Thickness	0.091 in (2.3 mm)
Nom. Insulation Diameter	0.557 in (14.1 mm)

UL Voltage Rating	600 V RMS (UL AWM 3193), 300 V RMS (CSA CL1052)

Max. Pull Tension	1303 lbs (591.0 kg)
Bulk Cable Weight	368 lbs/1000ft

UL Temperature	105°C
Operating	-30°C To +105°C

Stationary Min.	2.23 in (56.6 mm)
Installation Min.	2.23 in (56.6 mm)

Sustainability	CA Prop 65
AWM Compliance	AWM 3193
CEC / C(UL) Compliance	CL-1052.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Notes	Separator material over conductor.

Update and Revision	Revision Number: 0.453 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
