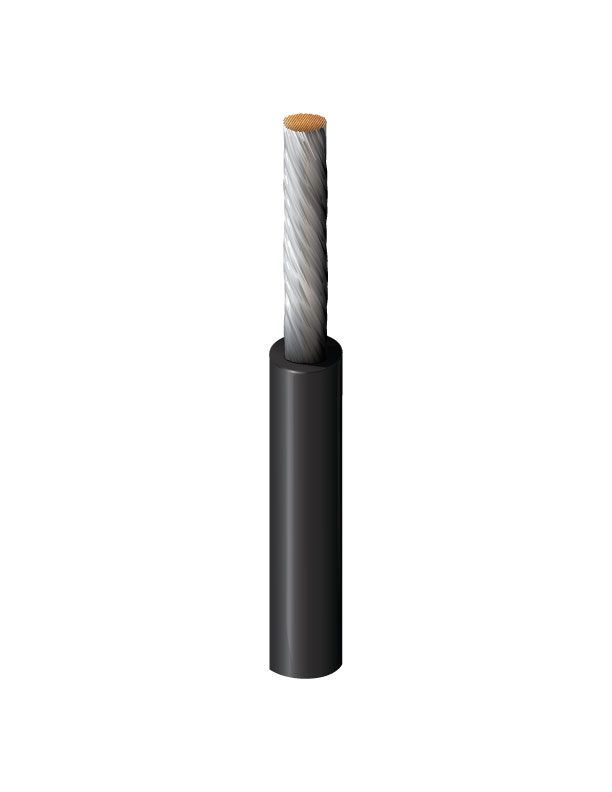

Lead Wire, #17 Str TC, Silicone Ins, AWM 3123
Low Temp Rubber Lead Wire, 17AWG (210x40) Tinned Copper, Silicone Insulation, AWM 3123 600V 150C
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
34017 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Put-Up Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 34017 0082000 | Gray | Reel | 2,000 ft | 612825143598 | Order online |
Specifications
Product Overview
| Suitable Applications | mercury switches, internal wiring of appliances, high temperature applications, flexing applications |
|---|
Physical Characteristics (Overall)
| Conductor Count | 1 |
|---|
Conductor
| AWG | 17 |
|---|---|
| Stranding | 210x40 |
| Material | TC - Tinned Copper |
| No. of Conductors | 1 |
Insulation
| Material | Silicone Rubber |
|---|---|
| Nominal Wall Thickness | 0.03 in |
Electrical Characteristics
Voltage
| UL Voltage Rating | 600 V RMS |
|---|
Temperature Range
| Non-UL Temp Rating | 150°C |
|---|---|
| UL Temperature Rating | 150°C |
Mechanical Characteristics
| Bulk Cable Weight | 12 lbs/1000ft |
|---|---|
| Minimum Minor Axis Bend Radius | 0.48 in |
Standards
| UL AWM Style Compliance | AWM 3123 |
|---|
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| CA Prop 65 | Yes |
| MII Order #39 (China RoHS) | Yes |
Flammability, LS0H, Toxicity Testing
| UL voltage rating | 600 V RMS |
|---|
Plenum/Non-Plenum
| Plenum (Y/N) | No |
|---|
Related Part Numbers
| Footnote | C - CRATE REEL PUT-UP. |
|---|
History
| Update and Revision | Revision Number: 0.371 Revision Date: 02-03-2025 |
|---|
