Product Number: 32822

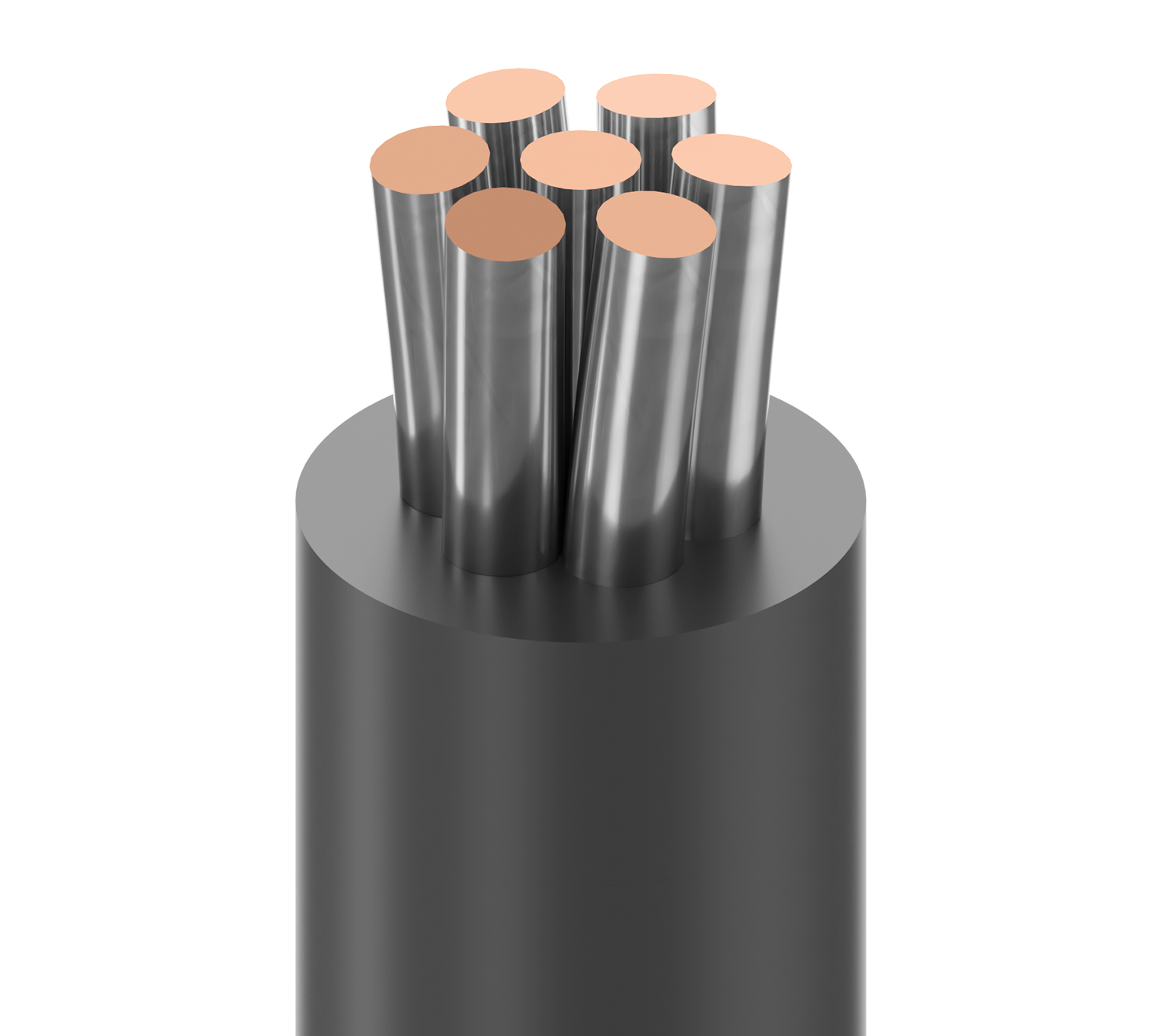

Lead Wire, #22 Str TC UNISTRAND, PVC Ins, AWM 1007 CSA TYPE TR-64TEW

Name: Belden 32822
Brand: Belden
SKU: 32822

Low Temp Plastic Lead Wire, 22AWG (7x30) Tinned Copper Unistrand, PVC Insulation, AWM 1007 CSA TYPE TR-64 300V 90C VW-1

Ships from and sold by A5 IT.

Part numbers

32822 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
32822 0105000	Black	Reel	5,000 ft	612825143307	C I U Z	Order online
32822 0055000	Green, Dark	Reel	5,000 ft	612825143284	I U Z	Order online
32822 0035000	Orange	Reel	5,000 ft	612825143277	I U Z	Order online
32822 0025000	Red	Reel	5,000 ft	612825143260	I U Z	Order online
32822 0095000	White	Reel	5,000 ft	612825143291	C I U Z	Order online

Suitable Applications	inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances

Overall Cable Diameter (Nominal)	0.062 in (1.6 mm)

UL Voltage Rating	300 V
Voltage Rating	300 V

Max. Pull Tension	9.1 lbs (4.1 kg)
Bulk Cable Weight	3.6 lbs/1000ft

UL Temperature	80°C

Stationary Min.	0.07 in (1.8 mm)
Installation Min.	0.07 in (1.8 mm)

Flammability / Reaction to Fire	VW-1
AWM Compliance	AWM 1007 (300 V 80°C), TR-64
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Update and Revision	Revision Number: 0.473 Revision Date: 02-20-2026
Footnote	I - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'., U - TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10,000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE), Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN., C - CRATE REEL PUT-UP.
