Product Number: 32516

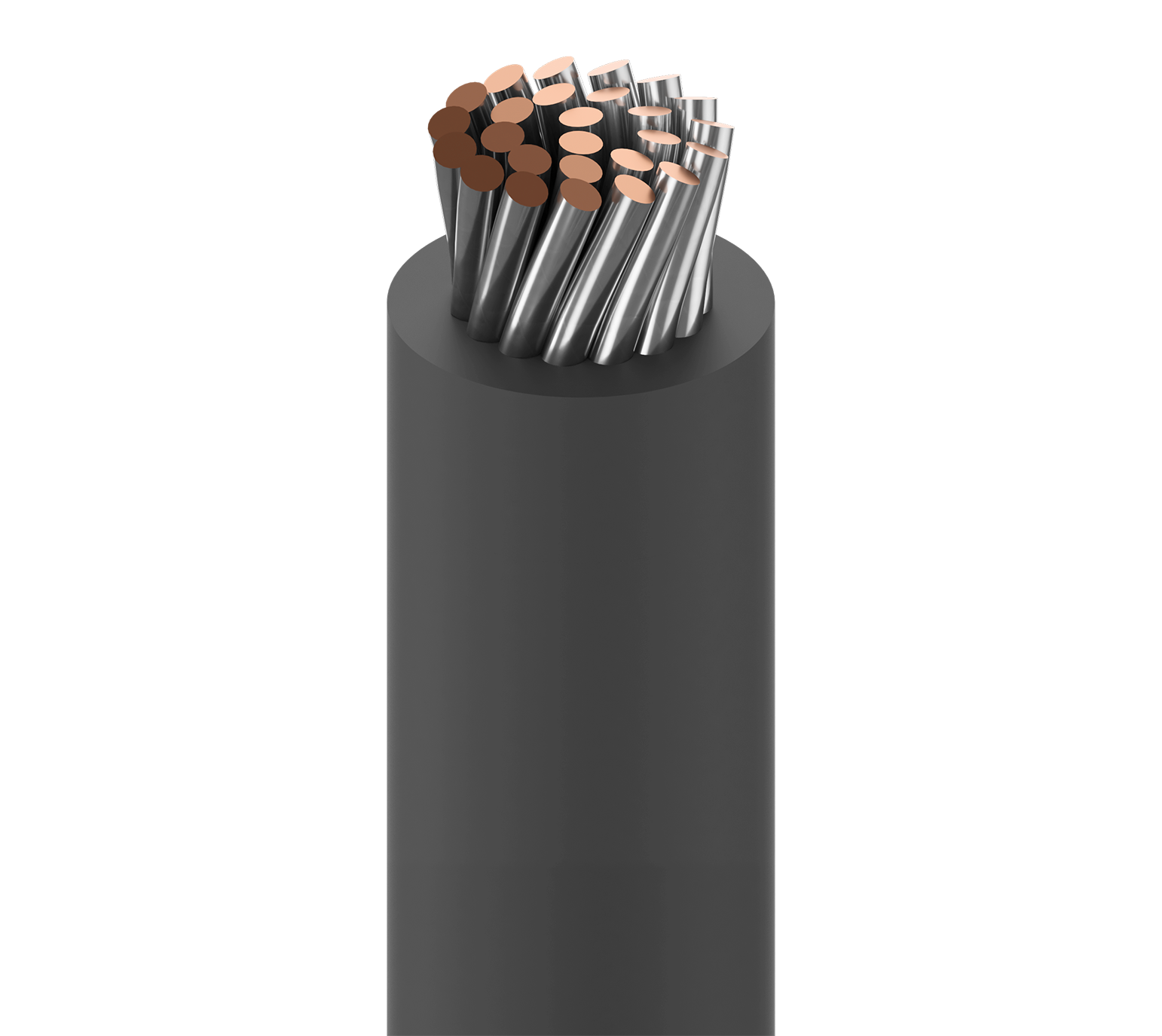

Lead Wire, #16 Str TC, Neoprene Ins, AWM 3046

Name: Belden 32516
Brand: Belden
SKU: 32516

Low Temp Rubber Lead Wire, 16AWG (26x30) Tinned Copper, Neoprene Insulation, AWM 3046 CSA TYPE CL903600V 90C

Ships from and sold by A5 IT.

Part numbers

32516 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
32516 010500	Black	Reel	500 ft	612825142898	F	Order online
32516 0105000	Black	Reel	5,000 ft	612825142904	I U Z	Order online
32516 004500	Yellow	Reel	500 ft	612825142881	F	Order online

Suitable Applications	internal wiring of appliances, oil resistance applications, motor lead systems

Overall Cable Diameter (Nominal)	0.155 in (3.94 mm)

Material	Neoprene
Nom. Thickness	0.048 in (1.2 mm)

UL Voltage Rating	600 V RMS

Bulk Cable Weight	20 lbs/1000ft (30 kg/km)

UL Temperature	90°C

Sustainability	CA Prop 65
AWM Compliance	AWM 3046
CEC / C(UL) Compliance	CL-903.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Notes	Recommended Maximum Baking Cycles: 24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C)

Update and Revision	Revision Number: 0.419 Revision Date: 02-20-2026
Footnote	F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'., I - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'., U - TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10,000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE), Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
