Product Number: 32410

Lead Wire, #10 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3075

Name: Belden 32410
Brand: Belden
SKU: 32410

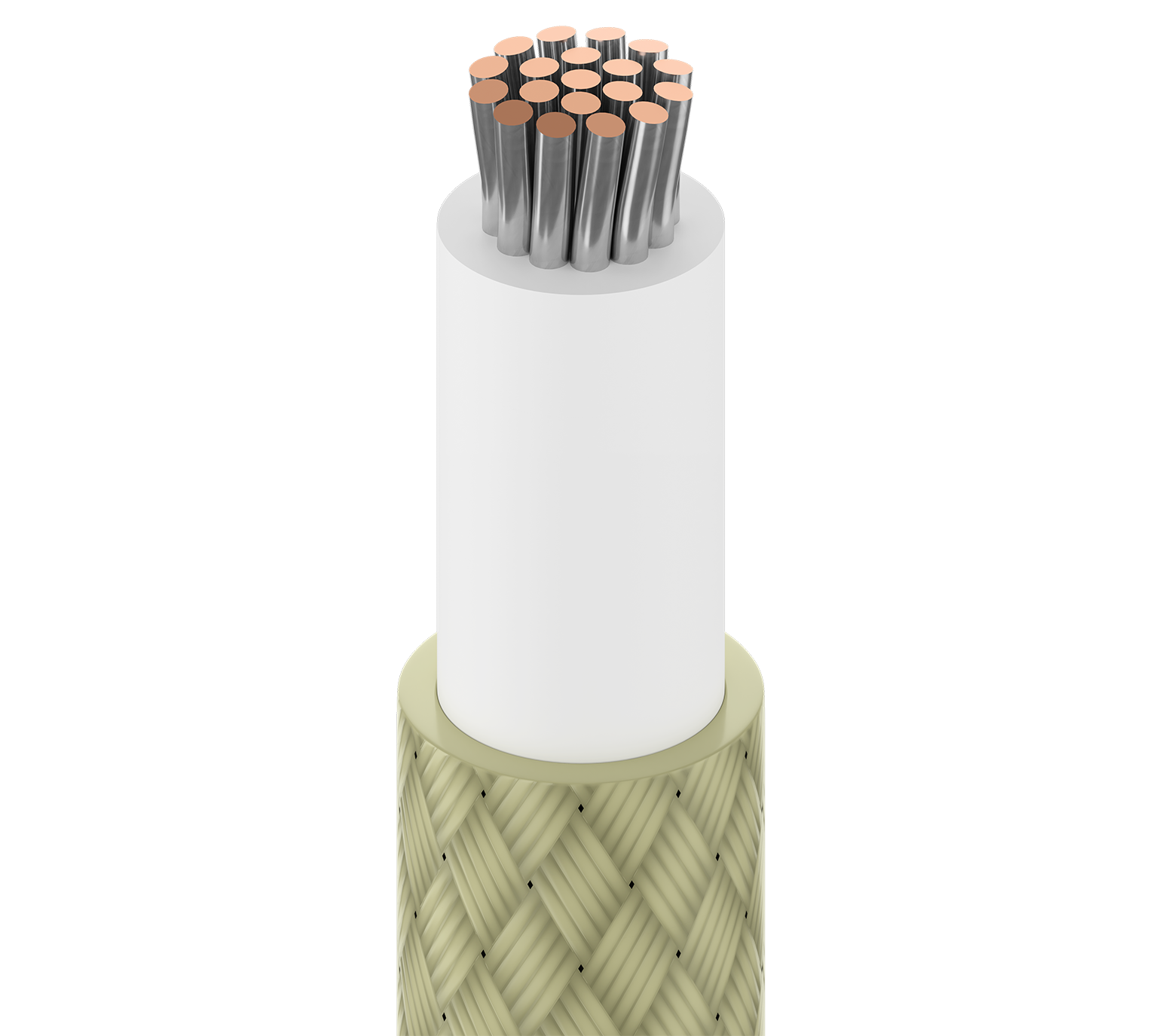

Rubber Lead Wire, 10AWG (19x22H) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3075 CSA SEW-2 600V 200C

Ships from and sold by A5 IT.

Part numbers

32410 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
32410 010500	Black	Reel	500 ft	612825142690	C	Order online
32410 009500	White	Reel	500 ft	612825142683	C	Order online

Suitable Applications	Class 130(B), 155(F) or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications

Overall Cable Diameter (Nominal)	0.238 in (6.05 mm)

Material	Silicone Rubber
Nom. Thickness	0.045 in (1.1 mm)

Material	Lacquered Glass Braid Covering
Nom. Diameter	0.238 in (6.05 mm)

UL Voltage Rating	600 V RMS

Bulk Cable Weight	56 lbs/1000ft (83 kg/km)

UL Temperature	200°C

Sustainability	CA Prop 65
Flammability / Reaction to Fire	Horizontal
AWM Compliance	AWM 3075
CEC / C(UL) Compliance	SEW-2.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
