Product Number: 31514

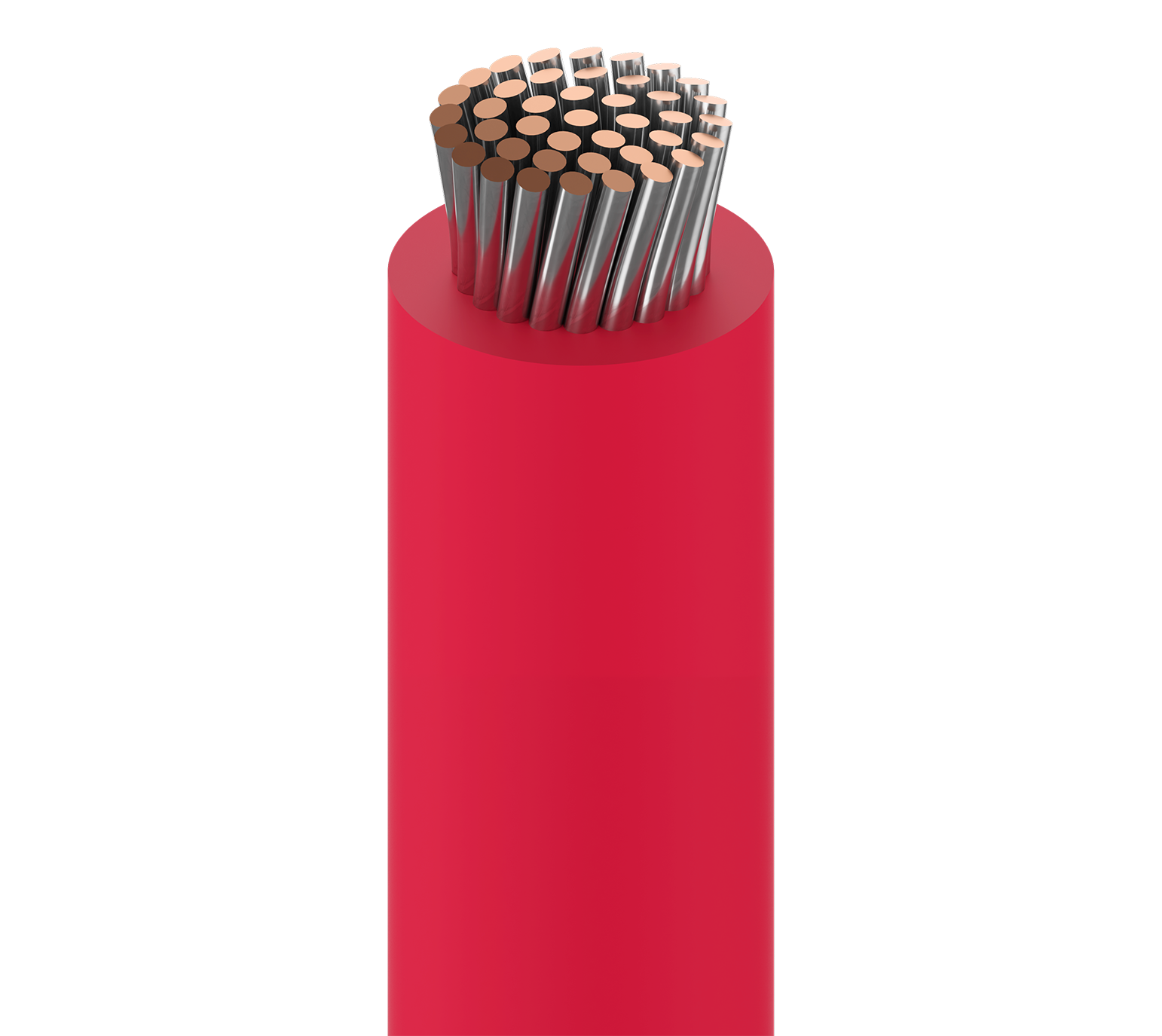

Lead Wire, #14 Str TC, Neoprene Ins, AWM 3046

Name: Belden 31514
Brand: Belden
SKU: 31514

Low Temp Rubber Lead Wire, 14AWG (41x30) Tinned Copper, Neoprene Insulation, AWM 3046 CSA TYPE CL903600V 90C

Ships from and sold by A5 IT.

Part numbers

31514 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
31514 010500	Black	Reel	500 ft	612825142256	F	Order online
31514 0104000	Black	Reel	4,000 ft	612825142249	C I U	Order online
31514 005500	Green, Dark	Reel	500 ft	612825142225	F	Order online
31514 0024000	Red	Reel	4,000 ft	612825142201	C I U	Order online
31514 009500	White	Reel	500 ft	612825142232	F	Order online
31514 0044000	Yellow	Reel	4,000 ft	612825142218	C I U	Order online

Suitable Applications	internal wiring of appliances, oil resistance applications, motor lead systems

Overall Cable Diameter (Nominal)	0.169 in (4.29 mm)

Nom. Conductor DCR	2.82 Ohm/1000ft
Max. Current	40 Amps per Conductor at 30oC

UL Voltage Rating	600 V (AWM 3046)

Max. Pull Tension	53.3 lbs (24.2 kg)
Bulk Cable Weight	26 lbs/1000ft

UL Temperature	90°C
Operating	-30°C To +90°C

Stationary Min.	1.69 in (42.9 mm)
Installation Min.	1.69 in (42.9 mm)

Environmental Suitability	Indoor, Outdoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	Horizontal flame
AWM Compliance	AWM 3046
CEC / C(UL) Compliance	CL-903.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Notes	Recommended Maximum Baking Cycles: 24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C)

Update and Revision	Revision Number: 0.482 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., I - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'., U - TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10,000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE), F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
