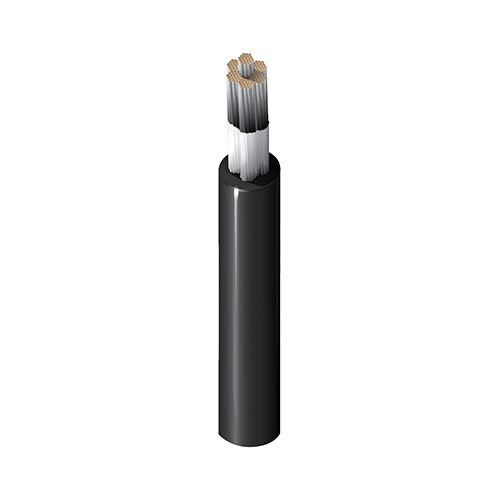

Lead Wire, #10 Str TC, XLPO Ins, UL TYPE SIS 600V
Low Temp Rubber Lead Wire, 10AWG (65x28) Tinned Copper, XLPO Insulation, UL TYPE SIS 600V 90C
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
31010N is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Order |
|---|---|---|
| 31010N 0082500 | Gray | Order online |
Specifications
Product Overview
| Suitable Applications | for wiring switchboards, panelboards , distribution boards |
|---|
Construction Details
Conductor
| Size | 10 |
|---|---|
| Stranding | 65x28 |
| Material | TC - Tinned Copper |
Insulation
| Material | XLP, XLPO, XLPE (Thermoset) |
|---|---|
| Nom. Thickness | 0.033 in (0.84 mm) |
| Nom. Insulation Diameter | 0.184 in (4.67 mm) |
Electrical Characteristics
Voltage
| UL Voltage Rating | 600 V |
|---|
Mechanical Characteristics
Temperature
| UL Temperature | 90°C |
|---|
Standards and Compliance
| NEC / UL Compliance | SIS |
|---|---|
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Separator material over conductor. |
|---|
History
| Update and Revision | Revision Number: 0.123 Revision Date: 09-07-2025 |
|---|
