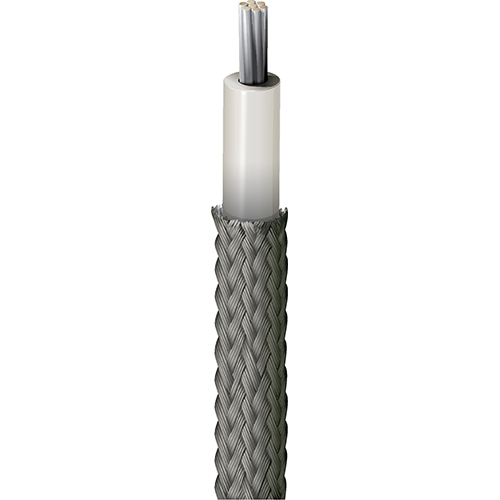

Lead Wire, #6 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3125
Rubber Lead Wire, 6AWG (84x25) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3125 CSA SEW-2 600V 200C
- Availability
- Global
- Status
- Active
- Orderable items
- 5
Part numbers
30806 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Put-Up Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 30806 010100 | Black | Reel | 100 ft | 612825140597 | Order online |
| 30806 010500 | Black | Reel | 500 ft | 612825140610 | Order online |
| 30806 0102000 | Black | Reel | 2,000 ft | 612825140603 | Order online |
| 30806 009100 | White | Reel | 100 ft | 612825140573 | Order online |
| 30806 009500 | White | Reel | 500 ft | 612825140580 | Order online |
Specifications
Product Overview
| Suitable Applications | Class 130(B), 155(F) or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications |
|---|
Physical Characteristics (Overall)
| Conductor Count | 1 |
|---|
Conductor
| AWG | 6 |
|---|---|
| Stranding | 84x25 |
| Material | TC - Tinned Copper |
| No. of Conductors | 1 |
Insulation
| Material | Silicone Rubber |
|---|---|
| Nominal Wall Thickness | 0.063 in |
| Min. Average Wall Thickness | 0.06 in |
Outer Jacket
| Material | Lacquered Glass Braid Covering |
|---|---|
| Nominal Diameter | 0.368 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | 0.40 Ohm/1000ft |
|---|
Current
| Element | Single Conductor in Free Aair @ 30C Ambient |
|---|---|
| Max. Recommended Current [A] | Single conductor in free air @ 30oC: 165 A |
Voltage
| UL Voltage Rating | 600 V RMS |
|---|
Temperature Range
| UL Temperature Rating | 200°C |
|---|---|
| Operating Temperature Range | -70°C To +200°C |
Mechanical Characteristics
| Recommended Maximum Baking Cycles | 24 Hours @ 410°F (210°C) |
|---|---|
| Bulk Cable Weight | 142 lbs/1000ft |
| Minimum Minor Axis Bend Radius | 1.48 in |
Standards
| UL AWM Style Compliance | AWM 3125 |
|---|---|
| CSA Rating | 600 V, 200°C |
| CSA Type | SEW-2 |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| CA Prop 65 | Yes |
| MII Order #39 (China RoHS) | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability | Horizontal |
|---|---|
| CSA Flammability | FT1 |
| UL voltage rating | 600 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N) | No |
|---|
Related Part Numbers
| Footnote | C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'. |
|---|
History
| Update and Revision | Revision Number: 0.391 Revision Date: 02-03-2025 |
|---|
