Product Number: 30804

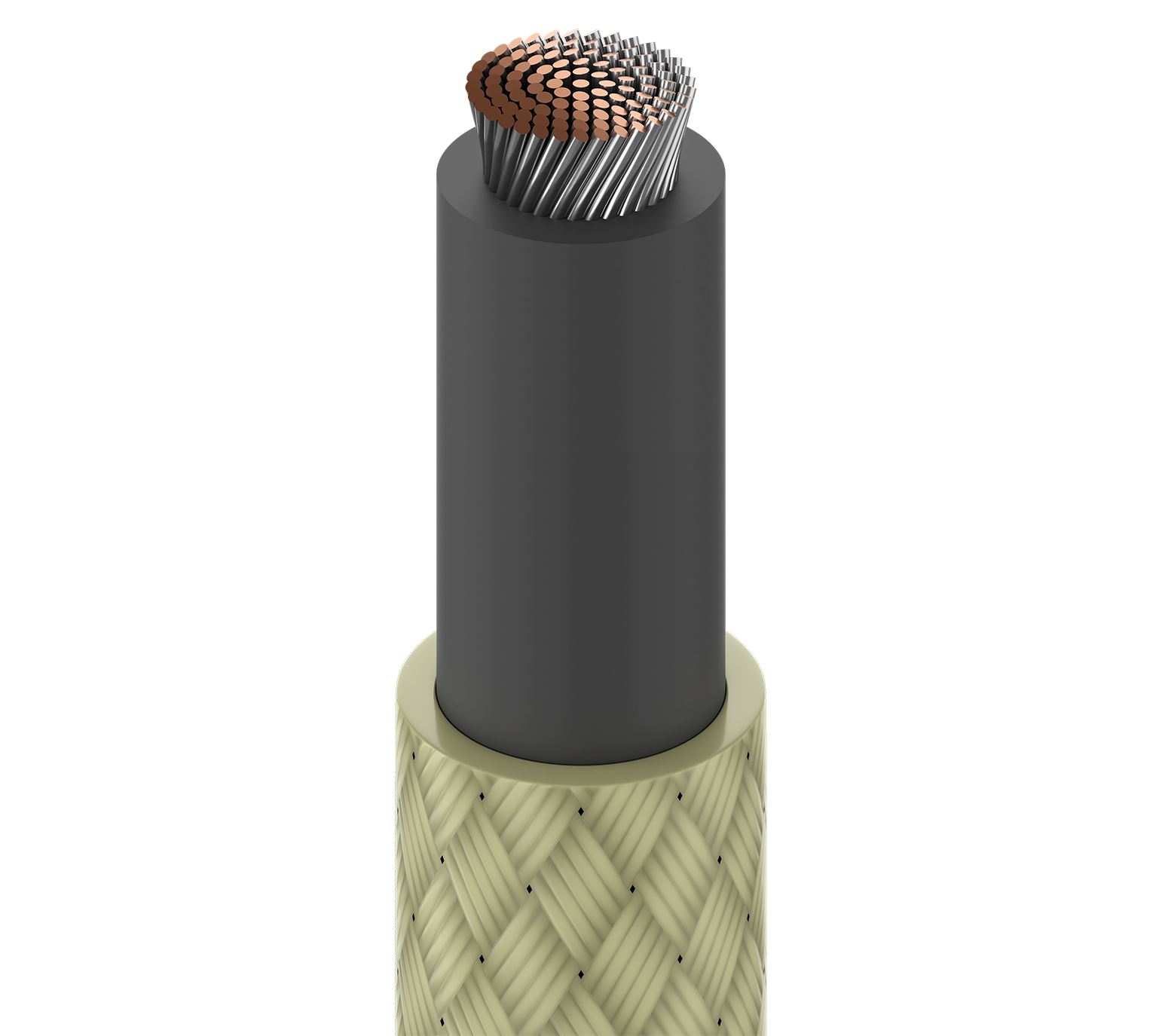

Lead Wire, #4 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3125

Name: Belden 30804
Brand: Belden
SKU: 30804

Rubber Lead Wire, 4AWG (105x24) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3125 CSA SEW-2 600V 200C

Ships from and sold by A5 IT.

Part numbers

30804 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
30804 010250	Black	Reel	250 ft	612825140566	C F	Order online
30804 009250	White	Reel	250 ft	612825140559	C F	Order online

Suitable Applications	Class 130(B), 155(F) or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications

Overall Cable Diameter (Nominal)	0.424 in (10.8 mm)

Material	Lacquered Glass Braid Covering
Nom. Diameter	0.424 in (10.8 mm)

Nom. Conductor DCR	0.279 Ohm/1000ft
Max. Current	200 Amps per Conductor at 30oC

UL Voltage Rating	600 V (AWM 3125)
Voltage Rating	600 V (CSA SEW-2)

Max. Pull Tension	532 lbs (241 kg)
Bulk Cable Weight	189 lbs/1000ft

UL Temperature	200°C
Operating	-70°C To +200°C

Stationary Min.	4.24 in (108 mm)
Installation Min.	4.24 in (108 mm)

Environmental Suitability	Indoor, Outdoor
Sustainability	CA Prop 65
AWM Compliance	AWM 3125
CEC / C(UL) Compliance	SEW-2.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Update and Revision	Revision Number: 0.493 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
