Product Number: 30802

Lead Wire, #2 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3125

Name: Belden 30802
Brand: Belden
SKU: 30802

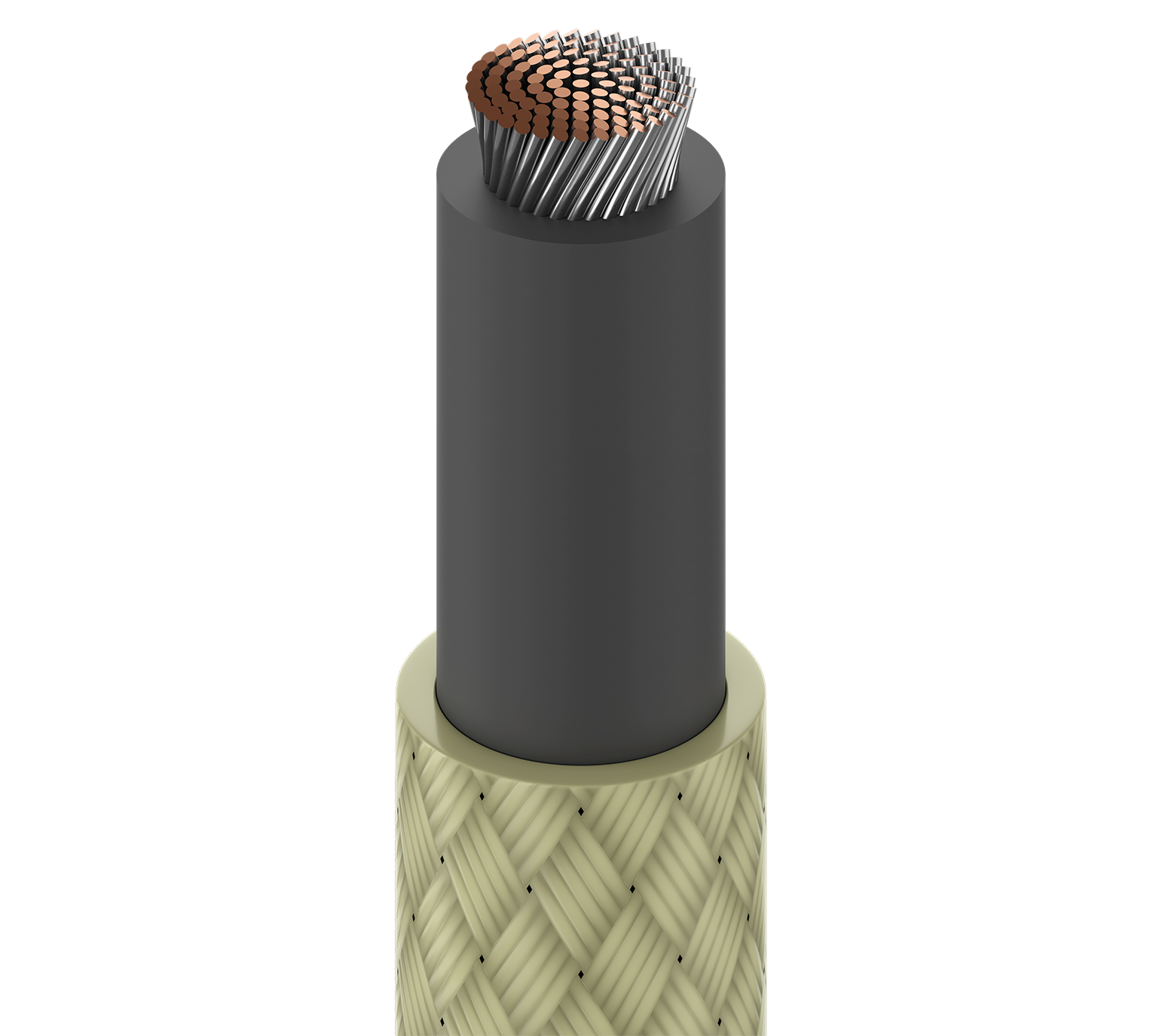

Rubber Lead Wire, 2AWG (163x24) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3125 CSA SEW-2 600V 200C

Ships from and sold by A5 IT.

Part numbers

30802 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
30802 010250	Black	Reel	250 ft	612825140542	C F	Order online
30802 009250	White	Reel	250 ft	612825140535	C F	Order online

Suitable Applications	Class 130(B), 155(F) or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications

Overall Cable Diameter (Nominal)	0.496 in (12.6 mm)

Material	Lacquered Glass Braid Covering
Nom. Diameter	0.496 in (12.6 mm)

Nom. Conductor DCR	0.180 Ohm/1000ft
Max. Current	273.6 Amps per Conductor at 30oC

UL Voltage Rating	600 V (AWM 3125)
Voltage Rating	600 V (CSA SEW-2)

Max. Pull Tension	824.6 lbs (374.0 kg)
Bulk Cable Weight	278 lbs/1000ft

UL Temperature	200°C
Operating	-70°C To +200°C

Stationary Min.	4.96 in (126 mm)
Installation Min.	4.96 in (126 mm)

Environmental Suitability	Indoor, Outdoor
Sustainability	CA Prop 65
AWM Compliance	AWM 3125
CEC / C(UL) Compliance	SEW-2.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Update and Revision	Revision Number: 0.501 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
