Product Number: 30801

Lead Wire, #1 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3126

Name: Belden 30801
Brand: Belden
SKU: 30801

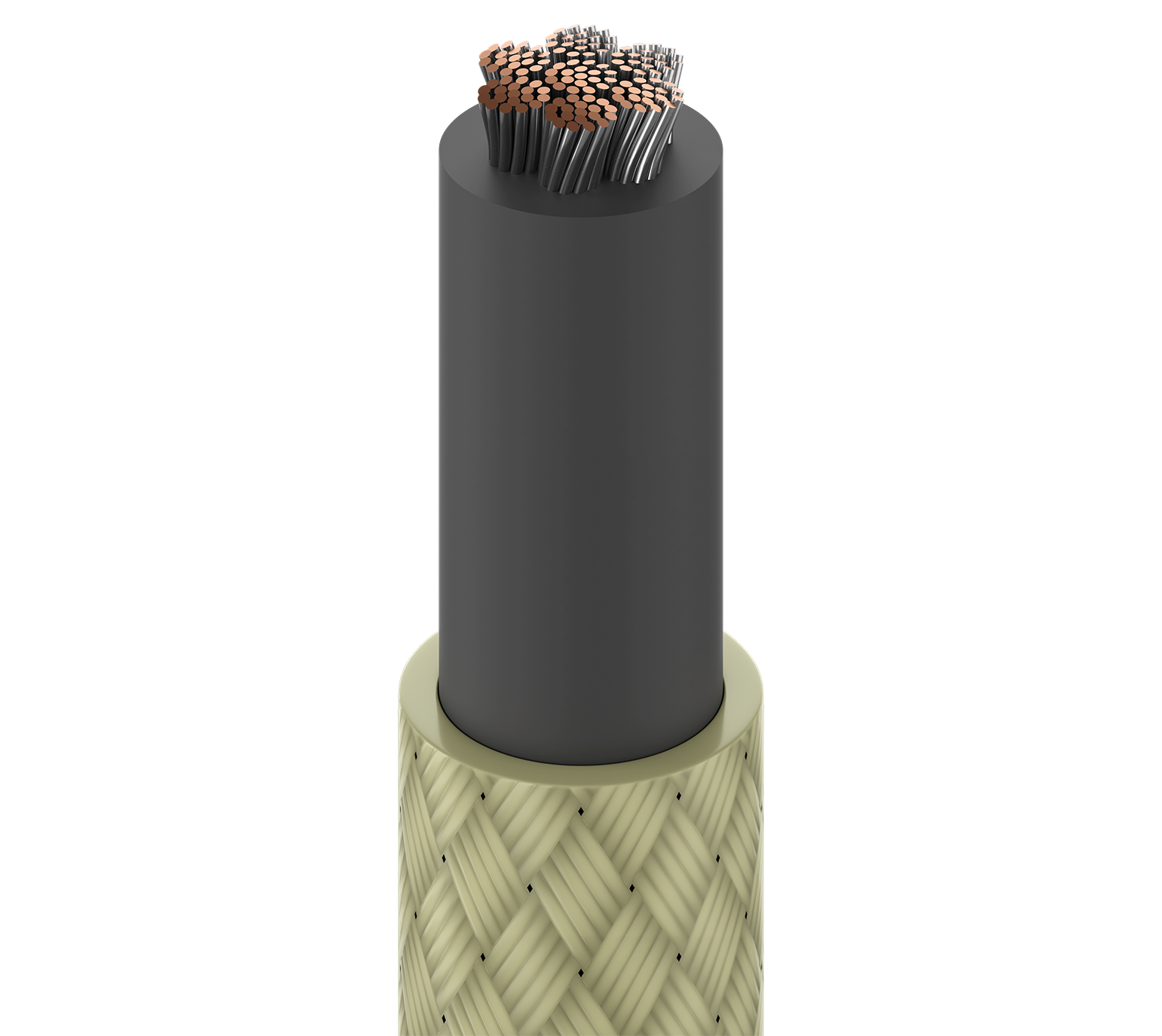

Rubber Lead Wire, 1AWG (210x24) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3126 CSA SEW-2 600V 200C

Ships from and sold by A5 IT.

Part numbers

30801 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
30801 010100	Black	Reel	100 ft	612825140511	C	Order online
30801 010250	Black	Reel	250 ft	612825140528	C F	Order online
30801 009100	White	Reel	100 ft	612825140498	C	Order online
30801 009250	White	Reel	250 ft	612825140504	C F	Order online

Suitable Applications	Class 130(B), 155(F) or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications

Overall Cable Diameter (Nominal)	0.622 in (15.8 mm)

Material	Lacquered Glass Braid Covering
Nom. Diameter	0.622 in (15.8 mm)

Nom. Conductor DCR	0.143 Ohm/1000ft
Max. Current	315.2 Amps per Conductor at 30oC

UL Voltage Rating	600 V (AWM 3126)
Voltage Rating	600 V (CSA SEW-2)

Max. Pull Tension	1085 lbs (492.1 kg)
Bulk Cable Weight	382 lbs/1000ft

UL Temperature	200°C
Operating	-70°C To +200°C

Stationary Min.	6.22 in (158 mm)
Installation Min.	6.22 in (158 mm)

Environmental Suitability	Indoor, Outdoor
Sustainability	CA Prop 65
AWM Compliance	AWM 3126
CEC / C(UL) Compliance	SEW-2.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Update and Revision	Revision Number: 0.486 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
