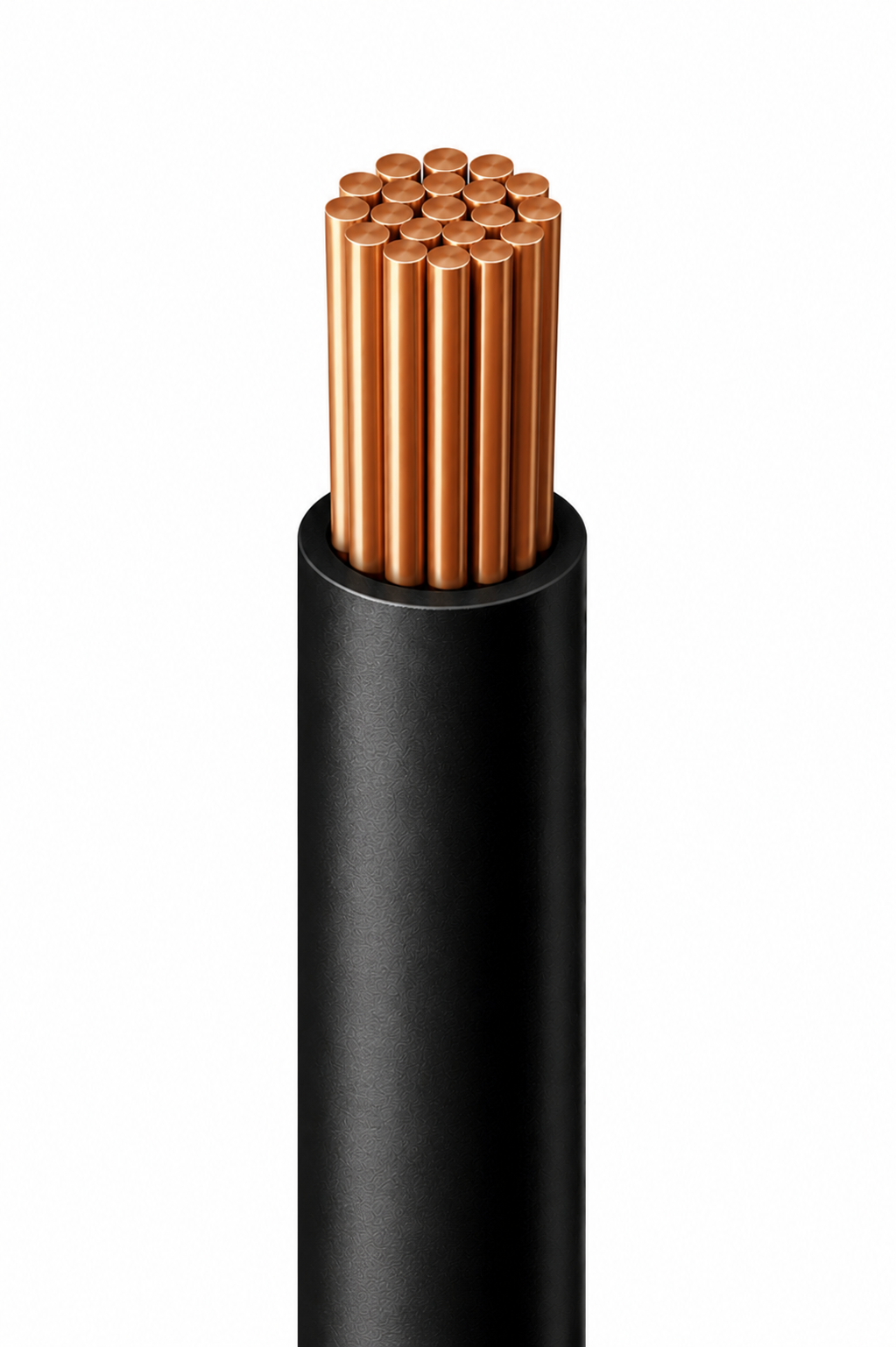

TW-75 600V, 1 AWG 19 str Bare copper, PVC insulation , 75C , CSA HMF SUN RES
TW-75 600V, 1/19 str AWG Bare copper, PVC insulation , 75C Wet Dry, CSA HMF SUN RES
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | CEC Power and Control Applications |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.480 in (12.2 mm) |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Stranding | 19x14 |
| Material | BC - Bare Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.080 in (2.0 mm) |
| Nom. Insulation Diameter | 0.480 in (12.2 mm) |
| Color Code | black |
Outer Jacket
| Nom. Thickness | 0.065 in (1.7 mm) |
|---|---|
| Nom. Diameter | 0.465 in (11.8 mm) |
Electrical Characteristics
Electricals
| Element | Conductor(s) |
|---|---|
| Max. Current | 130 Amps per Conductor at 30oC |
Voltage
| Voltage Rating | 600 V (600v) |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 317 Lbs/1000ft |
|---|
Temperature
| Operating | -25°C To +75°C |
|---|---|
| Installation | -25°C To +75 |
Standards and Compliance
| Environmental Suitability | Indoor, Sunlight Resistance |
|---|---|
| CEC / C(UL) Compliance | C22.2 No. 75. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.15 Revision Date: 05-22-2026 |
|---|
