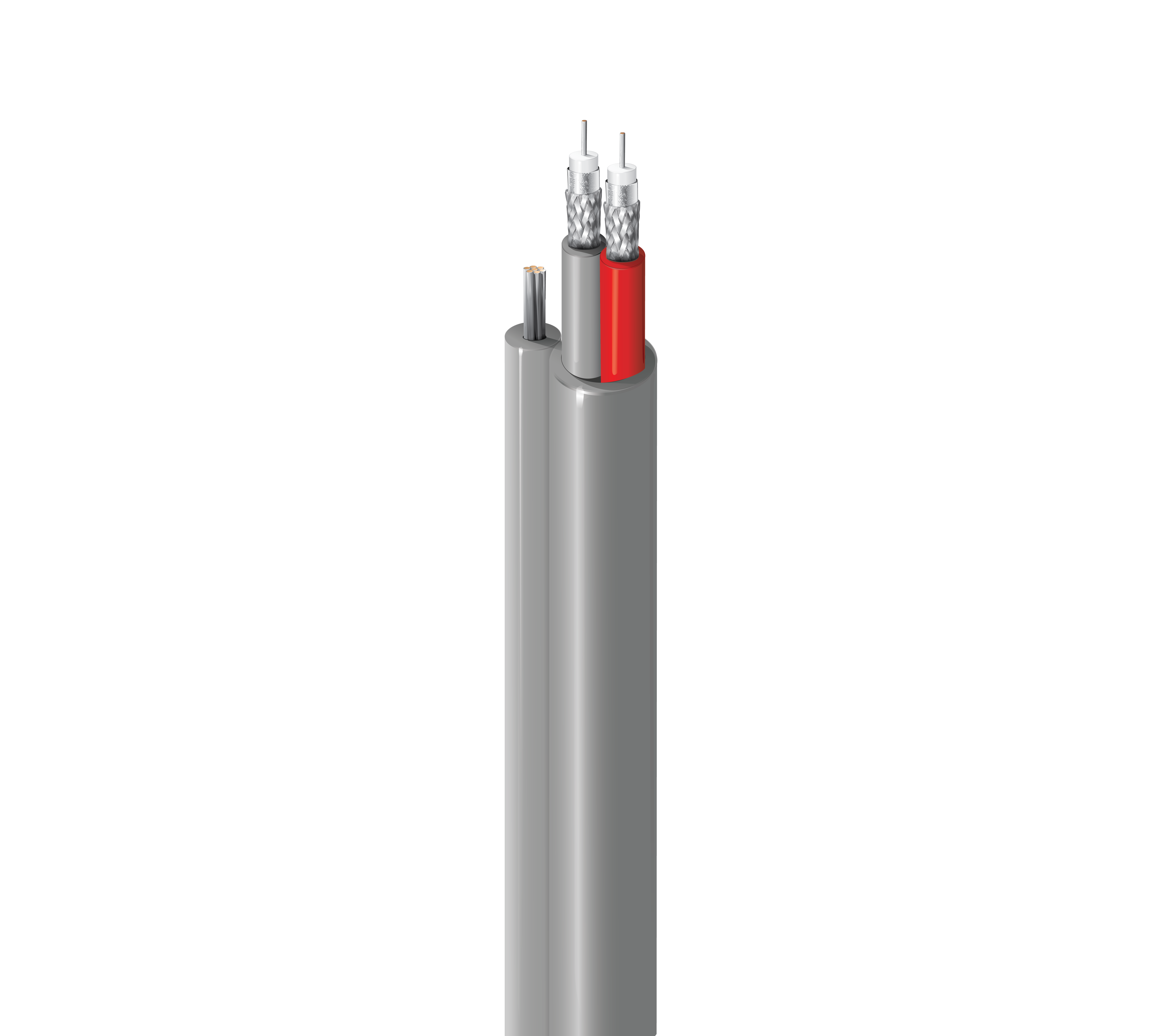

DS3/DS4 Central Office Coax, 2 x Sub-miniature RG-59, 26 AWG, Solid SC, Foil + 95% TC Braids, PVC Inner & Outer Jkts, Tracer, CMR
DS3/DS4 Central Office Coax, 2 Coaxes, Sub-miniature RG-59, 26 AWG, Solid Silvered Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shields, PVC Inner and Outer Jackets, Tracer Wire, CMR
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
735O2T is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 735O2T 0081000 | Gray | Reel | 1,000 ft | 612825185055 | C | Order online |
Specifications
Product Overview
| Suitable Applications | Central office wiring, DS3/DS4 interconnect, 734/735 telecommunications systems, switchboard communications |
|---|
Construction Details
| RG Type | Sub-miniature 59 |
|---|---|
| Inner Jacket Table Notes | One red, one gray |
| Outer Jacket1 Table Notes | 0.308 in x 0.179 in, 22 AWG tracer wire on side |
Conductor
| Size | 26 AWG |
|---|---|
| Stranding | Solid |
| Nom. Diameter | 0.016 in |
| Material | SC - Silvered Copper |
Insulation
| Material | PE - Polyethylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 0.077 in (2.0 mm) |
Inner Shield
| Layer | Shield Type | Material | Material Trade Name | Coverage |
|---|---|---|---|---|
| 1 | Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% |
| 2 | Braid | Tinned Copper (TC) | 95% |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.129 in (3.28 mm) |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|
Electrical Characteristics
Return Loss
| Frequency | 15 - 95 MHz |
|---|---|
| Min. Return Loss | 30 dB |
Electricals
| Nom. Conductor DCR | 41 Ohm/1000ft (130 Ohm/km) |
|---|---|
| Nom. Capacitance Cond-to-Shield | 17.7 pF/ft (58.1 pF/m) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 76% |
Voltage
| UL Voltage Rating | 300 V (CMR, CMG) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 37 lbs (17 kg) |
|---|---|
| Bulk Cable Weight | 36 lbs/1000ft |
Temperature
| Operating | -20°C to +75°C |
|---|
Bend Radius
| Installation Min. | 3.1 in |
|---|
Standards and Compliance
| Environmental Suitability | Indoor - Riser, Indoor |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL1666 Vertical Shaft |
| NEC / UL Compliance | CMR |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.192 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
