88232

Product Number: 88232

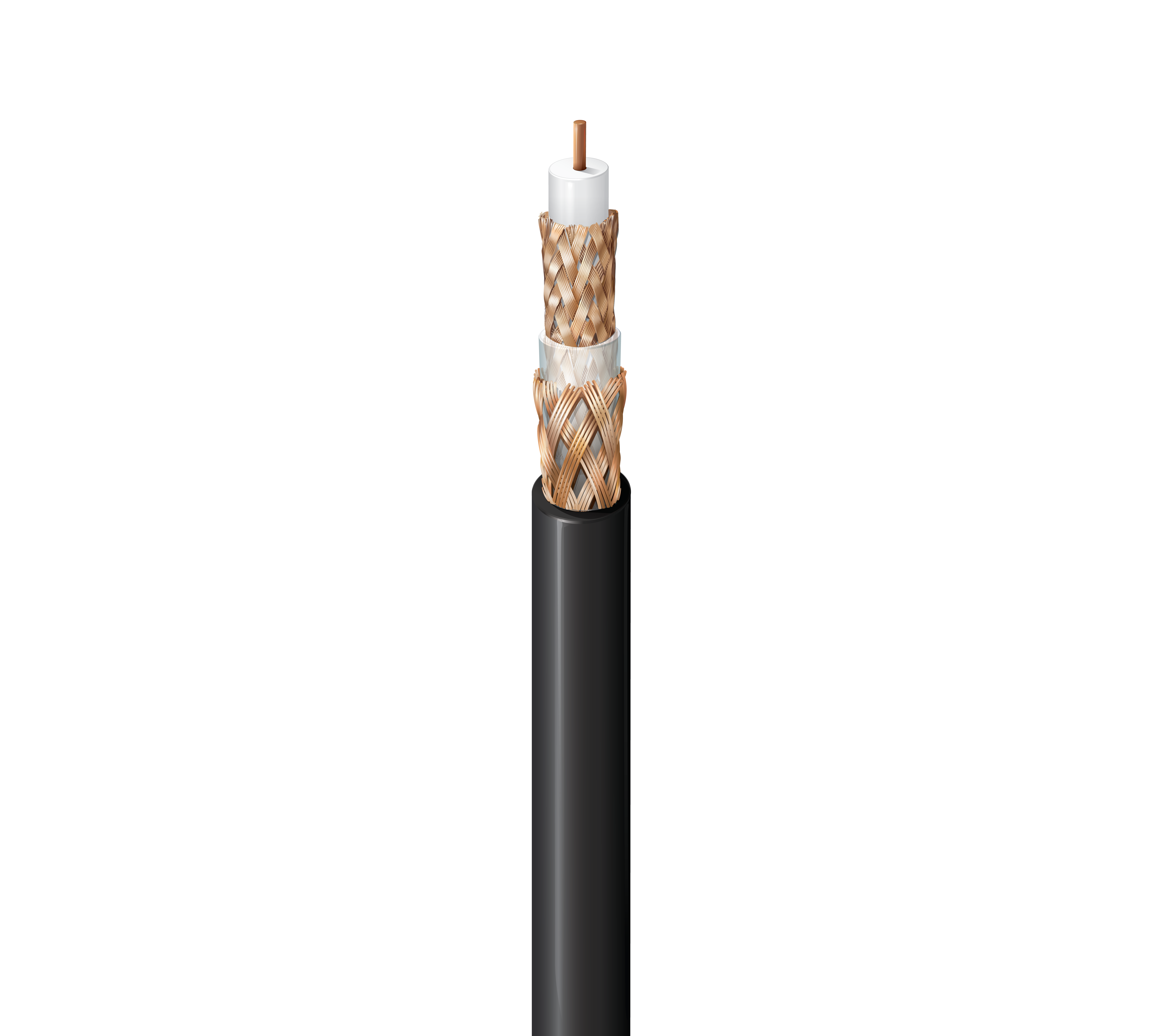

Triax, RG59, 20 AWG Solid BC, Double 95% BC Braids, FEP Jkt, CMP

Triax, RG59 20 AWG, Solid Bare Copper Conductor, FEP Insulation, 95% Bare Copper Braid Shield, FEP Insulation, 95% Bare Copper Braid Shield, FEP Jacket, CMP

Availability
Global
Status
Active
Orderable items
2
Request a quoteOrder options (2)

Ships from and sold by A5 IT.

Part numbers

88232 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorPutup TypeLengthUPCFootnoteOrder
88232 010500BlackReel500 ft612825216902COrder online
88232 0101000BlackReel1,000 ft612825216889COrder online

Specifications

Product Overview

Suitable ApplicationsAnalog Video; Interconnect camera to CCU (camera control unit)

Construction Details

RG Type59
Overall Cable Diameter (Nominal)0.245 in (6.22 mm)

Conductor

Size20 AWG
StrandingSolid
Nom. Diameter0.034 in
MaterialBC - Bare Copper

Insulation

MaterialFEP - Fluorinated Ethylene Propylene (Foam)
Nom. Insulation Diameter0.140 in (3.56 mm)
Color CodeWhite

Inner Shield

Layer1
Shield TypeBraid
MaterialBare Copper (BC)
Coverage95%

Inner Jacket

MaterialFEP - Fluorinated Ethylene Propylene
Nom. Diameter0.188 in (4.78 mm)

Outer Shield

Layer1
Outer Shield TypeBraid
MaterialBare Copper (BC)
Coverage95%

Outer Jacket

MaterialFEP - Fluorinated Ethylene Propylene
Nom. Diameter0.245 in (6.22 mm)

Electrical Characteristics

Return Loss

FrequencyMin. Return Loss
5 - 850 MHz21 dB
850 - 3000 MHz15 dB

Attenuation

FrequencyNom. Attenuation
1 MHz0.40 dB/100ft
3.6 MHz0.60 dB/100ft
10 MHz0.80 dB/100ft
71.5 MHz2.20 dB/100ft
135 MHz3.10 dB/100ft
270 MHz4.50 dB/100ft
360 MHz5.30 dB/100ft
540 MHz6.60 dB/100ft
720 MHz7.70 dB/100ft
750 MHz7.90 dB/100ft
1000 MHz9.40 dB/100ft
1500 MHz12.10 dB/100ft
2250 MHz15.60 dB/100ft
3000 MHz18.70 dB/100ft

Electricals

Nom. Conductor DCR10.0 Ohm/1000ft
Nom. Inner Shield DCR2.6 Ohm/1000ft (8.5 Ohm/km)
Nom. Outer Shield DCR2.6 Ohm/1000ft (8.5 Ohm/km)
Nom. Capacitance Cond-to-Shield16.9 pF/ft (55.4 pF/m)
Nom. Characteristic Impedance75 Ohm
Nom. Velocity of Prop.80%

Voltage

UL Voltage Rating300 V (CMP)

Mechanical Characteristics

Max. Pull Tension140 lbs (64 kg)
Bulk Cable Weight58 lbs/1000ft

Temperature

UL Temperature200°C
Operating-40°C to +200°C

Bend Radius

Installation Min.2.5 in (64 mm)

Standards and Compliance

Environmental SuitabilityIndoor - Plenum, Indoor
SustainabilityCA Prop 65
Flammability / Reaction to FireNFPA 262
NEC / UL ComplianceCMP
CEC / C(UL) ComplianceCMP.
European Directive ComplianceEU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC ComplianceChina RoHS II (GB/T 26572-2011)
Non-Plenum Number8232A

History

Update and RevisionRevision Number: 0.486 Revision Date: 02-20-2026
FootnoteC - CRATE REEL PUT-UP.
