8233A

Product Number: 8233A

Triax, RG11, 14 AWG Solid BC, Double BC Braids, PVC Jkt, CMR

Triax, RG11, 14 AWG Solid Bare Copper Conductor, PE Insulation, 95% Bare Copper Braid Shield, PVC Insulation, 80% Bare Copper Braid Shield, PVC Jacket, CMR

Availability
Global
Status
Active
Orderable items
2
Request a quoteOrder options (2)

Ships from and sold by A5 IT.

Part numbers

8233A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorPutup TypeLengthUPCFootnoteOrder
8233A 0101000BlackReel1,000 ft612825355649COrder online
8233A 0104000BlackReel4,000 ft612825438236COrder online

Specifications

Product Overview

Suitable ApplicationsAnalog Video; Interconnect camera to CCU (camera control unit)

Construction Details

RG Type11
Overall Cable Diameter (Nominal)0.475 in (12.1 mm)

Conductor

Size14 AWG
StrandingSolid
Nom. Diameter0.064 in
MaterialBC - Bare Copper

Insulation

MaterialPE - Polyethylene (Foam)
Nom. Insulation Diameter0.285 in (7.24 mm)
Color CodeWhite

Inner Shield

Layer1
Shield TypeBraid
MaterialBare Copper (BC)
Coverage95%

Inner Jacket

MaterialPVC - Polyvinyl Chloride
Nom. Diameter0.365 in (9.27 mm)

Outer Shield

Layer1
Outer Shield TypeBraid
MaterialBare Copper (BC)
Coverage80%

Outer Jacket

MaterialPVC - Polyvinyl Chloride
Nom. Diameter0.475 in (12.1 mm)

Electrical Characteristics

Return Loss

FrequencyMin. Return Loss
5 - 850 MHz21 dB
850 - 4500 MHz15 dB

Attenuation

FrequencyNom. Attenuation
1 MHz0.14 dB/100ft
3.6 MHz0.30 dB/100ft
10 MHz0.40 dB/100ft
71.5 MHz1.10 dB/100ft
135 MHz1.60 dB/100ft
270 MHz2.30 dB/100ft
360 MHz2.60 dB/100ft
540 MHz3.30 dB/100ft
720 MHz3.80 dB/100ft
750 MHz4.00 dB/100ft
1000 MHz4.60 dB/100ft
1500 MHz5.90 dB/100ft
2250 MHz7.40 dB/100ft
3000 MHz9.00 dB/100ft
4500 MHz12.50 dB/100ft

Electricals

Nom. Conductor DCR2.6 Ohm/1000ft
Nom. Inner Shield DCR1.7 Ohm/1000ft (5.6 Ohm/km)
Nom. Outer Shield DCR1.5 Ohm/1000ft (4.9 Ohm/km)
Nom. Capacitance Cond-to-Shield16.1 pF/ft (52.8 pF/m)
Nom. Characteristic Impedance75 Ohm
Nom. Velocity of Prop.84%

Voltage

UL Voltage Rating300 V (CMR, CMG)

Mechanical Characteristics

Max. Pull Tension170 lbs (77 kg)
Bulk Cable Weight125 lbs/1000ft

Temperature

UL Temperature60°C
Operating-40°C to +80°C

Bend Radius

Installation Min.5.0 in (130 mm)

Standards and Compliance

Environmental SuitabilityIndoor/Outdoor, Indoor, Aerial - Black only, When supported by messenger wire
SustainabilityCA Prop 65
Flammability / Reaction to FireUL1666 Vertical Shaft
NEC / UL ComplianceCMR
CEC / C(UL) ComplianceCMG.
European Directive ComplianceEU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC ComplianceChina RoHS II (GB/T 26572-2011)
Plenum Number8233P

History

Update and RevisionRevision Number: 0.498 Revision Date: 02-20-2026
FootnoteC - CRATE REEL PUT-UP.

Resources

Belden 8233A technical datasheetIndoor/Outdoor Stadium CablesVideo Distance ChartDate: 2004-01-01

Related video triax cable

1856A

1856A

Triax, RG59, 20 AWG Solid BC, Double 95% BC Braids, Belflex® Jkt

20 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride

1 item
1857A

1857A

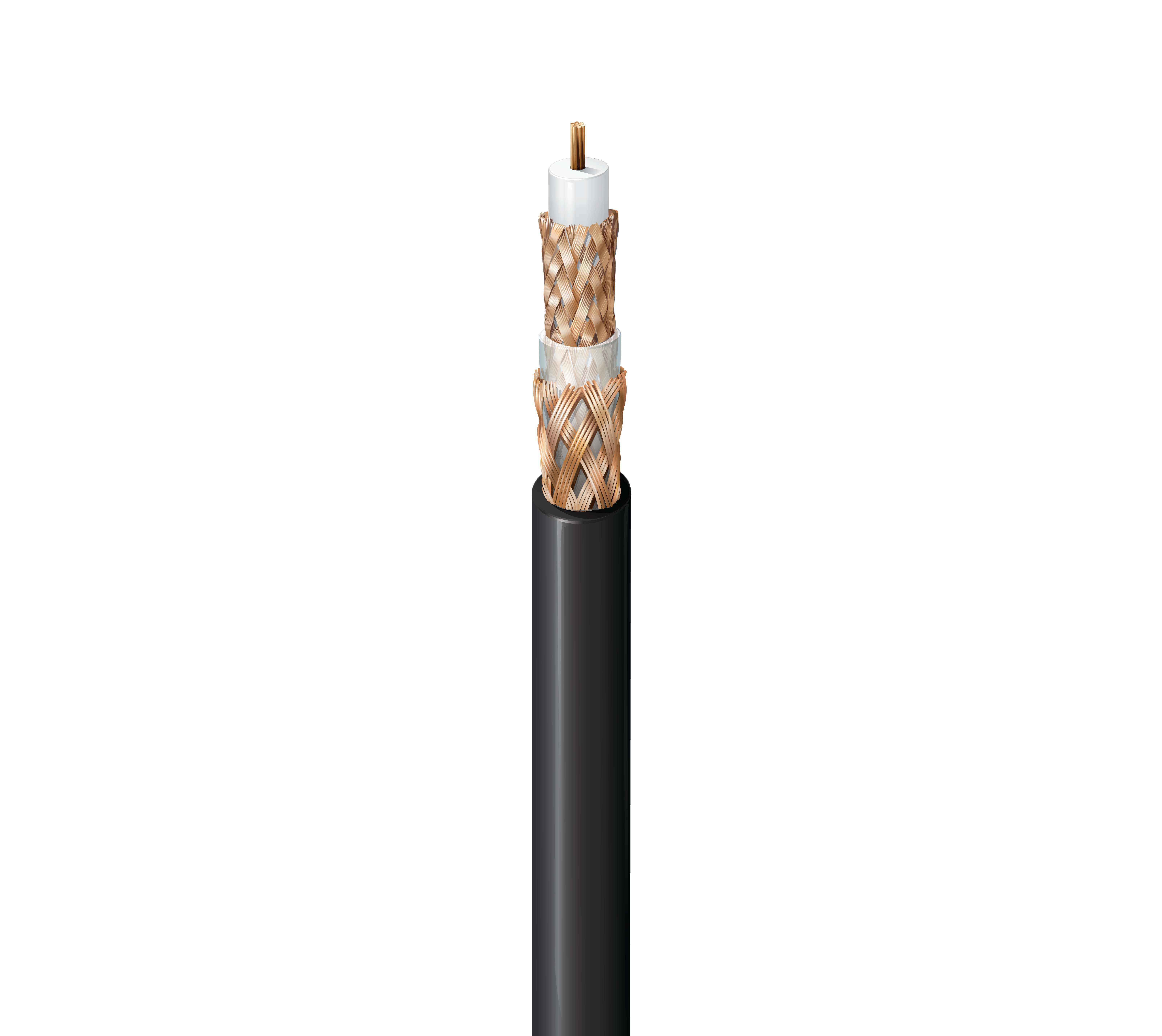

Triax, RG59, 22 AWG Str BC, Double 95% BC Braids, Belflex® Jkt, Flexible
