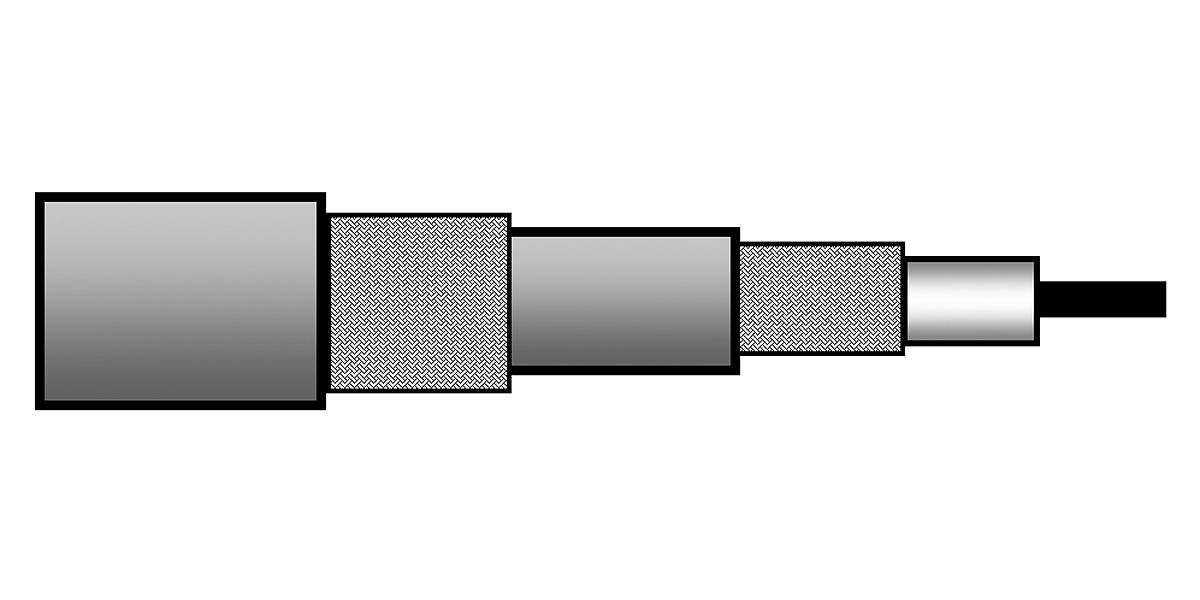

7785E - Triax 14, 11 AWG Str BC, Double BC Braids, PVC Jkt
Triax 14, 11 AWG (7x21) Stranded Bare Copper Conductor, PE Insulation, 80% Bare Copper Braid Shield, PE Insulation, 80% Bare Copper Braid Shield, PVC Jacket.
- Availability
- EMEA | Asia Pacific
- Status
- Discontinued
Specifications
Product Overview
| Suitable Applications | Analog Video; Interconnect camera to CCU (camera control unit) |
|---|
Construction Details
| Series Type | Triax 8/11/14 |
|---|
Conductor
| No. of Elements | 1 |
|---|---|
| Size | 12 AWG |
| Stranding | Stranded |
| Nom. Diameter | 2.2 in |
| Material | BC - Bare Copper |
Insulation
| Element | Insulated Conductor |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Insulation Diameter | 9.7 mm (0.38 in) |
Inner Shield
| Shield Type | Braid |
|---|---|
| Material | Bare Copper (BC) |
| Coverage | 80% |
Inner Jacket
| Material | PE - Polyethylene |
|---|---|
| Nom. Diameter | 11.9 mm (0.469 in) |
Outer Shield
| Outer Shield Type | Braid |
|---|---|
| Material | Bare Copper (BC) |
| Coverage | 80% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 14.5 mm |
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.4 dB/100m |
| 10 MHz | 1.3 dB/100m |
| 20 MHz | 1.7 dB/100m |
| 40 MHz | 2.5 dB/100m |
| 50 MHz | 2.8 dB/100m |
| 60 MHz | 3.1 dB/100m |
| 100 MHz | 4.2 dB/100m |
| 270 MHz | 7 dB/100m |
| 300 MHz | 7.6 dB/100m |
| 540 MHz | 10.1 dB/100m |
| 1000 MHz | 14.3 dB/100m |
Electricals
| Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|---|
| 6.4 Ohm/km (2.0 Ohm/1000ft) | 4.1 Ohm/km (1.2 Ohm/1000ft) | 55 pF/m (17 pF/ft) | 75 Ohm | 81% | |
| 5.7 Ohm/km (1.7 Ohm/1000ft) |
Screening
| Frequency | 30 - 850 MHz |
|---|---|
| Min. Screening Attenuation | 75 dB |
Mechanical Characteristics
| Max. Pull Tension | 550 N (120 lbf) |
|---|
Temperature
| Operating | -40°C To +70°C |
|---|---|
| Installation | -5°C To +70°C |
| Storage | -40°C To +70°C |
Bend Radius
| Stationary Min. | 150 mm (5.9 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor (Not Riser or Plenum) |
|---|---|
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.241 Revision Date: 02-20-2026 |
|---|
