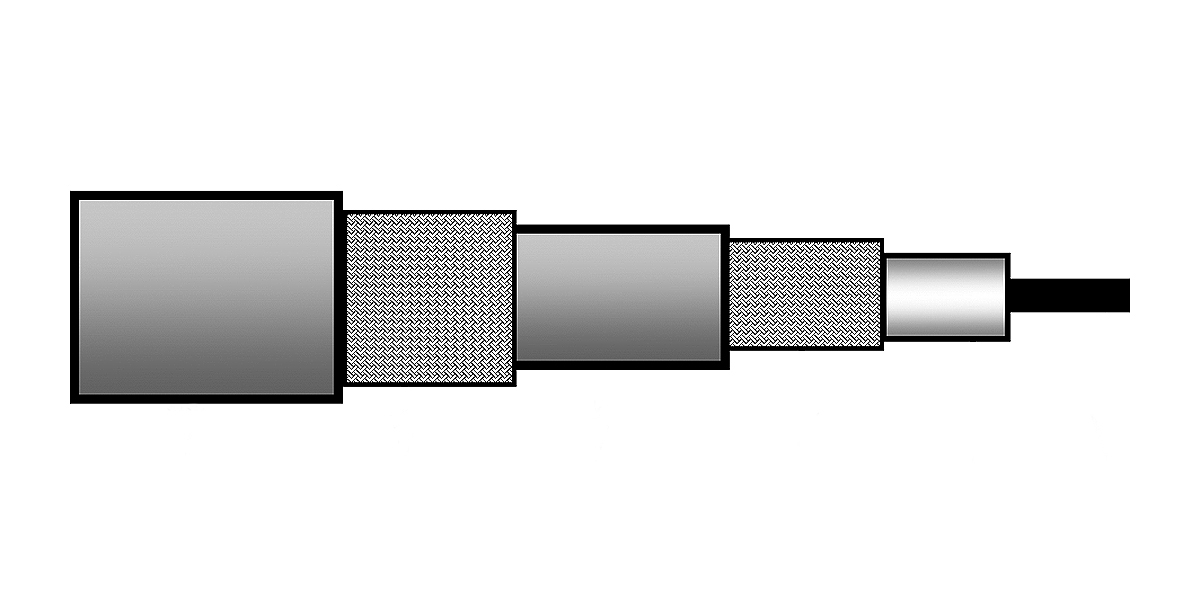

7783AFP - Triax 8, RG-6, 18 AWG Str SPC, SPC + BC Braids, PUR Jkt
Triax 8, RG-6, 18 AWG (7x28) Stranded Silver plated Copper Conductor, PE Insulation, 80% Silver plated Copper Braid Shield, PE Insulation, 80% Bare Copper Braid Shield, PUR Jacket.
- Availability
- EMEA | Asia Pacific
- Status
- Discontinued
Specifications
Product Overview
| Suitable Applications | Analog Video; Interconnect camera to CCU (camera control unit) |
|---|
Construction Details
| Series Type | Triax 8/11/14 |
|---|
Conductor
| No. of Elements | 1 |
|---|---|
| Size | 18 AWG |
| Stranding | Stranded |
| Nom. Diameter | 0.99 mm |
| Material | SC - Silvered Copper |
Insulation
| Material | PE - Polyethylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 4.52 mm (0.178 in) |
Inner Shield
| Shield Type | Braid |
|---|---|
| Material | Silvered Copper (SC) |
| Coverage | 80% |
Inner Jacket
| Material | PE - Polyethylene |
|---|---|
| Nom. Diameter | 6.6 mm (0.26 in) |
Outer Shield
| Outer Shield Type | Braid |
|---|---|
| Material | Bare Copper (BC) |
| Coverage | 80% |
Outer Jacket
| Material | PUR - Polyurethane |
|---|---|
| Nom. Diameter | 8.4 mm (0.33 in) |
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.6 dB/100m |
| 10 Mhz | 2.2 dB/100m |
| 20 MHz | 3.2 dB/100m |
| 40 MHz | 4.6 dB/100m |
| 50 MHz | 5.1 dB/100m |
| 60 MHz | 5.6 dB/100m |
| 100 MHz | 7.5 dB/100m |
| 300 MHz | 13.8 dB/100m |
Electricals
| Nom. Conductor DCR | 32 Ohm/km (9.8 Ohm/1000ft) |
|---|---|
| Nom. Inner Shield DCR | 14 Ohm/km (4.3 Ohm/1000ft) |
| Nom. Outer Shield DCR | 9 Ohm/km (2.7 Ohm/1000ft) |
| Nom. Capacitance Cond-to-Shield | 52 pF/m (16 pF/ft) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 83% |
Screening
| Frequency | 30 - 1000 MHz |
|---|---|
| Min. Screening Attenuation | 75 dB |
Mechanical Characteristics
| Max. Pull Tension | 250 N (56 lbf) |
|---|---|
| Bulk Cable Weight | 139 kg/km (93.4 lbs/1000ft) |
Temperature
| Operating | -40°C To +70°C |
|---|---|
| Installation | -5°C To +70°C |
| Storage | -40°C To +70°C |
Bend Radius
| Stationary Min. | 80 mm (3.1 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| CENELEC Compliance | EN 50117-1 |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.290 Revision Date: 02-20-2026 |
|---|
