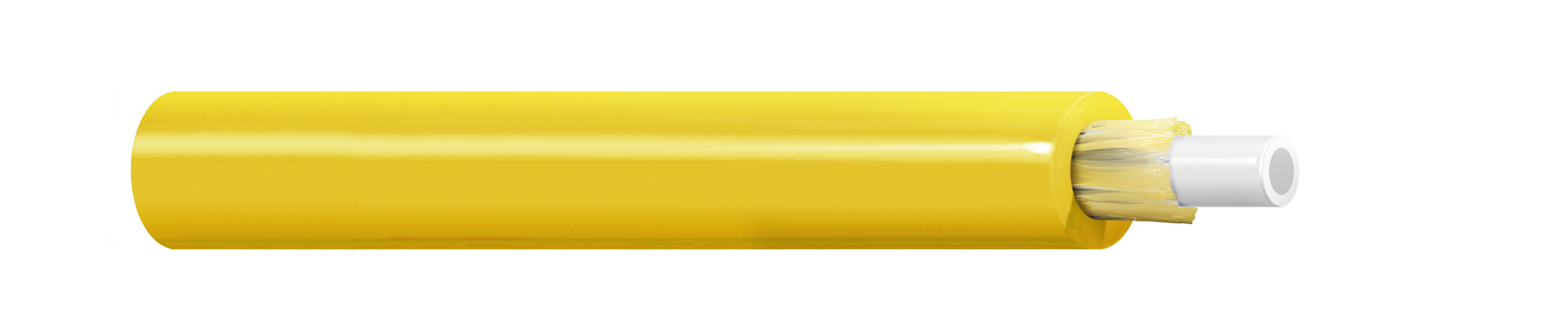

Outdoor Tactical empty tube patchcord PUR jacket 2.8mm furcation tube No fiber.
Outdoor Tactical empty tube patchcord with Polyurethane (PUR) outer jacket. 2.8mm furcation tube No fiber.
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
GMPZ0E0 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| GMPZ0E0.002100 | Orange | Reel | 2,100 m | 8719605076397 | Order online |
| GMPZ0E0.042100 | Yellow | Reel | 2,100 m | 8719605197481 | Order online |
Specifications
Product Overview
| Suitable Applications | Breakout kits. Short distance applications for indoor use. |
|---|
Fiber Specifications
| Fiber Count | 0 |
|---|
Outer Jacket Specifications
| Jacket Material | PUR - Polyurethane |
|---|---|
| Nom. Diameter | 2.8 mm (0.11 in) |
Mechanical Characteristics
| Minimum Bend Radius During Operation | 60 mm |
|---|---|
| Max. Tensile Strength During Installation | 75 N (17 lbf) |
| Bulk Cable Weight | 5.8 kg/km (3.9 lbs/1000ft) |
Mechanical Tests
| Description | Tested Standard |
|---|---|
| Cable Min. Bend Radius Operation (Long Term) | IEC 60794-1-21-E11 |
| Cable Max. Tensile Strength Installation (Short Term) | IEC 60794-1-21-E1 |
| Cable Max. Tensile Strength Operation (Long Term) | IEC 60794-1-21-E1 |
Temperature Range
| Installation Temperature Range | -5 °C to +50 °C |
|---|---|
| Operating Temperature Range | -30 °C to +70 °C |
| Storage Temperature Range | -30 °C to +70 °C |
Standards and Compliance
| Environmental Suitability | Indoor (Not Riser or Plenum) |
|---|---|
| ISO/IEC Compliance | IEC 60794 ISO/IEC 11801-1 |
History
| Update and Revision | Revision Number: 0.97 Revision Date: 09-25-2025 |
|---|
