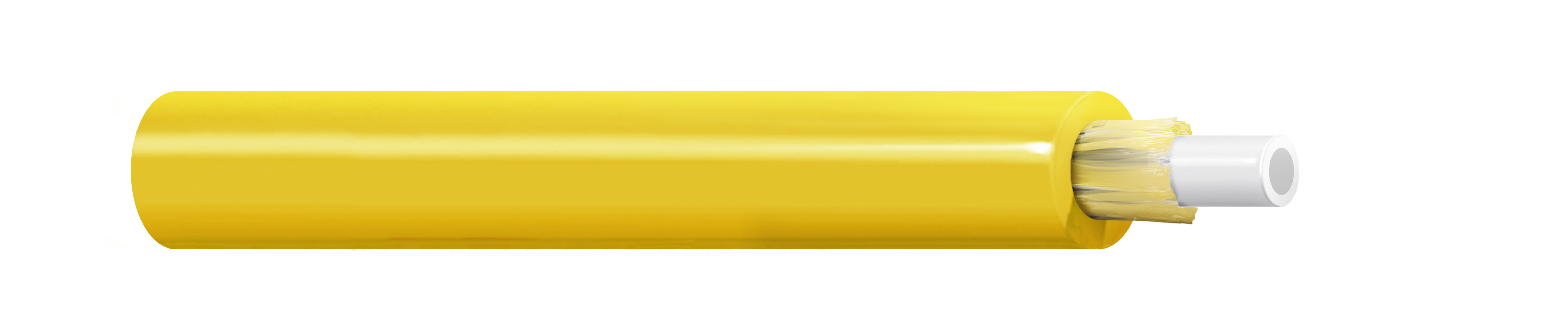

Indoor empty tube patchcord LSZH jacket 2.8mm furcation tube No fiber.
Indoor empty tube patchcord with Low Smoke Zero Halogen outer jacket. 2.8mm furcation tube No fiber.
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
GIPZ0E0 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| GIPZ0E0.012100 | Orange | Reel | 2,100 m | 8719605075871 | Order online |
| GIPZ0E0.002100 | Turquoise | Reel | 2,100 m | 8719605075864 | Order online |
Specifications
Product Overview
| Suitable Applications | Breakout kits. Short distance applications for indoor use. |
|---|
Fiber Specifications
| Fiber Count | 0 |
|---|
Outer Jacket Specifications
| Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 2.8 mm (0.11 in) |
Mechanical Characteristics
| Minimum Bend Radius During Operation | 60 mm |
|---|---|
| Max. Tensile Strength During Installation | 225 N (50.6 lbf) |
| Max. Tensile Strength During Operation | 75 N (17 lbf) |
| Bulk Cable Weight | 7.8 kg/km (5.2 lbs/1000ft) |
Mechanical Tests
| Description | Tested Standard | According to Family Specification |
|---|---|---|
| Cable Min. Bend Radius Operation (Long Term) | IEC 60794-1-21-E11 | IEC 60794-2-10 |
| Cable Max. Tensile Strength Installation (Short Term) | IEC 60794-1-21-E1 | |
| Cable Max. Tensile Strength Operation (Long Term) | IEC 60794-1-21-E1 |
Temperature Range
| Installation Temperature Range | -15 °C to +50 °C |
|---|---|
| Operating Temperature Range | -40 °C to +70 °C |
| Storage Temperature Range | -40 °C to +70 °C |
Standards and Compliance
| Environmental Suitability | Indoor (Not Riser or Plenum) |
|---|---|
| ISO/IEC Compliance | IEC 60794 ISO/IEC 11801-1 |
| European Halogen Free Standards | IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60% |
History
| Update and Revision | Revision Number: 0.111 Revision Date: 09-25-2025 |
|---|
