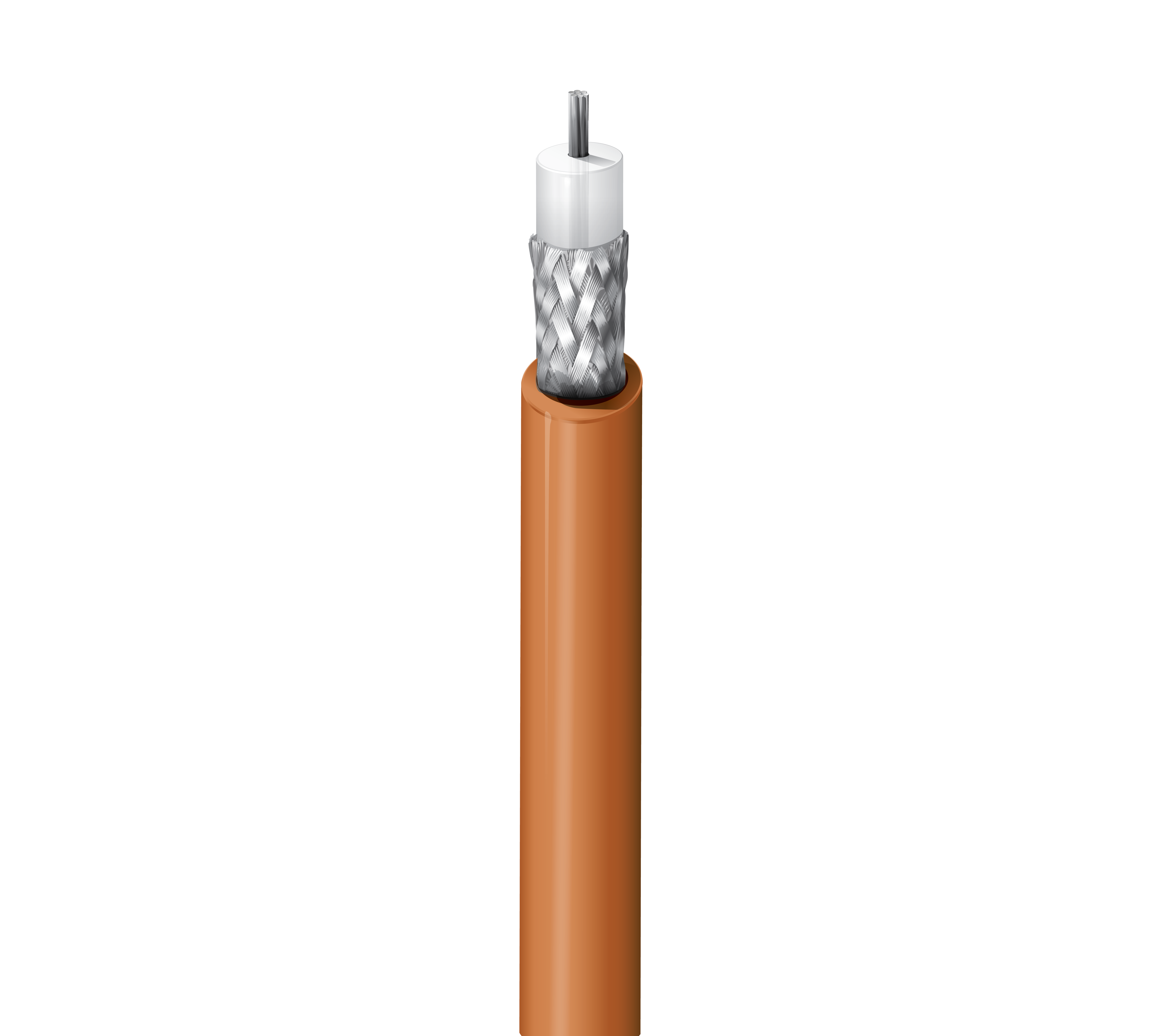

Mil-Spec Coax, 75 Ohm, RG-179, 30 AWG Str SCCS, 95% SC Braid, FEP Jkt, Commercial Non-QPL
Mil-Spec Coax, 75 Ohm, RG-179, 30 AWG (7x38) Silvered Copper Covered Steel Conductor, PTFE Insulation, 95% Silvered Copper Braid Shield, FEP Jacket, Commercial, non-QPL
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
83264 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 83264 001100 | Brown | Reel | 100 ft | 612825203667 | E | Order online |
| 83264 001500 | Brown | Reel | 500 ft | 612825203681 | E | Order online |
| 83264 0011000 | Brown | Reel | 1,000 ft | 612825203674 | C E | Order online |
Specifications
Product Overview
| Suitable Applications | Aerospace, analog video |
|---|
Construction Details
| RG Type | 179 |
|---|---|
| Overall Cable Diameter (Nominal) | 0.100 in (2.54 mm) |
Conductor
| Size | 30 AWG |
|---|---|
| Stranding | 7x38 |
| Nom. Diameter | 0.012 in |
| Material | SCCS - Silvered Copper Covered Steel |
Insulation
| Material | PTFE - Polytetrafluoroethylene |
|---|---|
| Nom. Insulation Diameter | 0.063 in (1.6 mm) |
| Color Code | White |
Outer Shield
| Layer | 1 |
|---|---|
| Outer Shield Type | Braid |
| Material | Silvered Copper (SC) |
| Coverage | 95% |
Outer Jacket
| Material | FEP - Fluorinated Ethylene Propylene |
|---|---|
| Nom. Diameter | 0.100 in (2.54 mm) |
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 3.0 dB/100ft |
| 10 MHz | 5.3 dB/100ft |
| 50 MHz | 8.5 dB/100ft |
| 100 MHz | 10.0 dB/100ft |
| 200 MHz | 12.5 dB/100ft |
| 400 MHz | 16.0 dB/100ft |
| 700 MHz | 19.7 dB/100ft |
| 900 MHz | 22.3 dB/100ft |
| 1000 MHz | 24.0 dB/100ft |
Power Rating
| Frequency | Max. Power Rating |
|---|---|
| 50 MHz | 1,250 W |
| 100 MHz | 865 W |
| 200 MHz | 599 W |
| 400 MHz | 415 W |
| 700 MHz | 308 W |
| 900 MHz | 270 W |
| 1,000 MHz | 255 W |
Electricals
| Nom. Conductor DCR | 232 Ohm/1000ft (761 Ohm/km) |
|---|---|
| Nom. Outer Shield DCR | 8.5 Ohm/1000ft (28 Ohm/km) |
| Nom. Capacitance Cond-to-Shield | 19.5 pF/ft (64.0 pF/m) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 70% |
Voltage
| Voltage Rating | 900 V (Mil-Spec) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 17 lbs (7.7 kg) |
|---|---|
| Bulk Cable Weight | 10 lbs/1000ft |
Temperature
| Operating | -70°C to +200°C |
|---|
Bend Radius
| Installation Min. | 1 in (25 mm) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Aerial - When supported by messenger wire |
|---|---|
| Sustainability | CA Prop 65 |
| Military Compliance | Commercial, non-QPL product (M17/94-RG179) |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.506 Revision Date: 02-20-2026 |
|---|---|
| Footnote | E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'., C - CRATE REEL PUT-UP. |
Resources
Related sdi video coax cable
12823
Coax RG59, #23 Sol BCCS40%, PO Ins, OA BC Brd, PVC Jkt, AIA Armor, PVC Jkt, CMG
23
128241
Coax RG59, #23 Sol BCCS40%, PO Ins, OA BC Brd, PVC Jkt, AIA Armor, PVC Jkt, CMG
BCCS - Bare Copper Covered Steel · PE - Polyethylene · PVC - Polyvinyl Chloride · 300 V RMS
1505FPU
1505FPU - 75 Ohm SDI Coax, RG-59, 22 AWG Str BC, Double 95% TC Braid, PUR Jkt, Flexible
1 · 21 AWG · BC-C - Bare Copper (Compacted) · PE - Polyethylene (Foam)

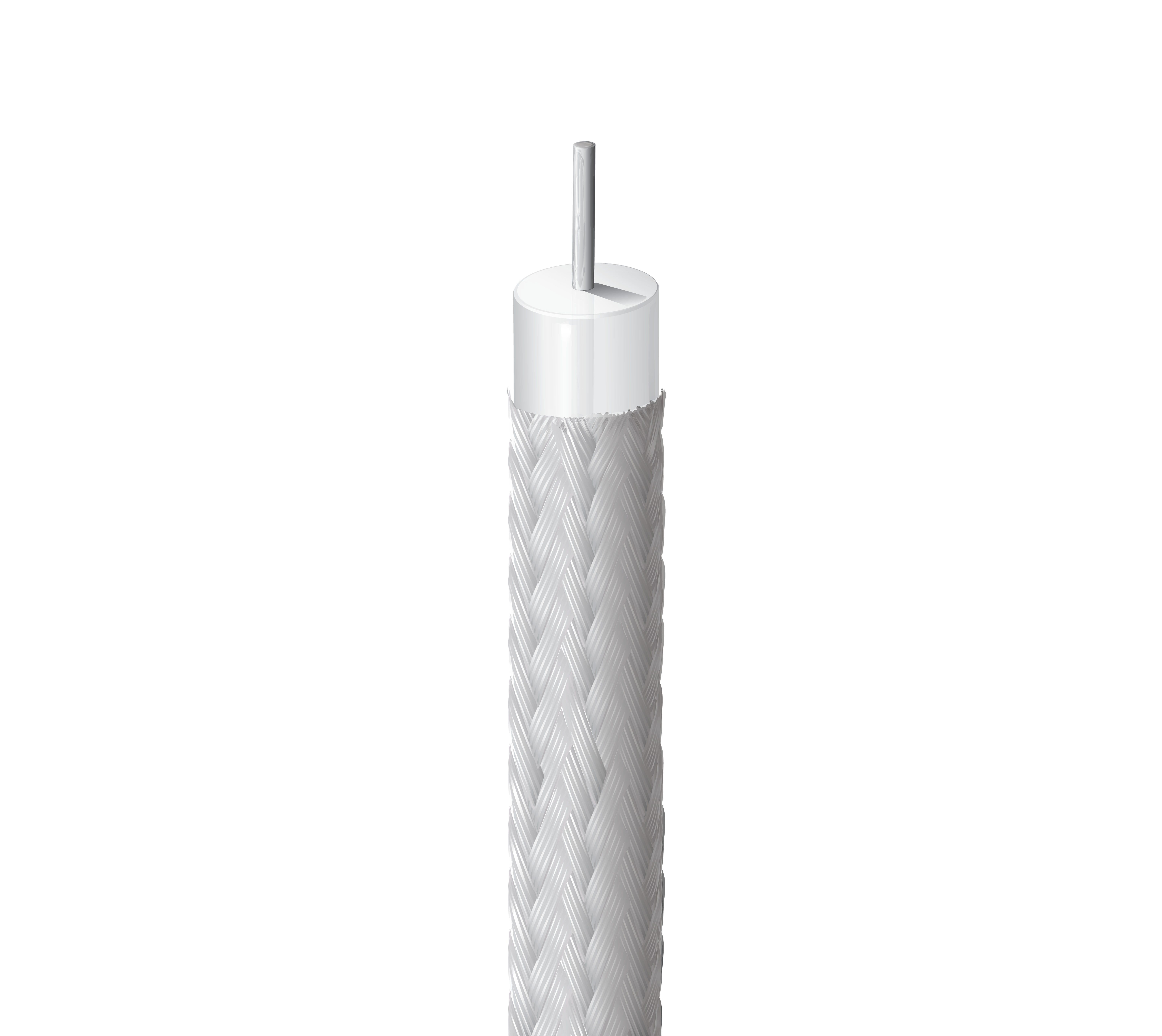

1672A
