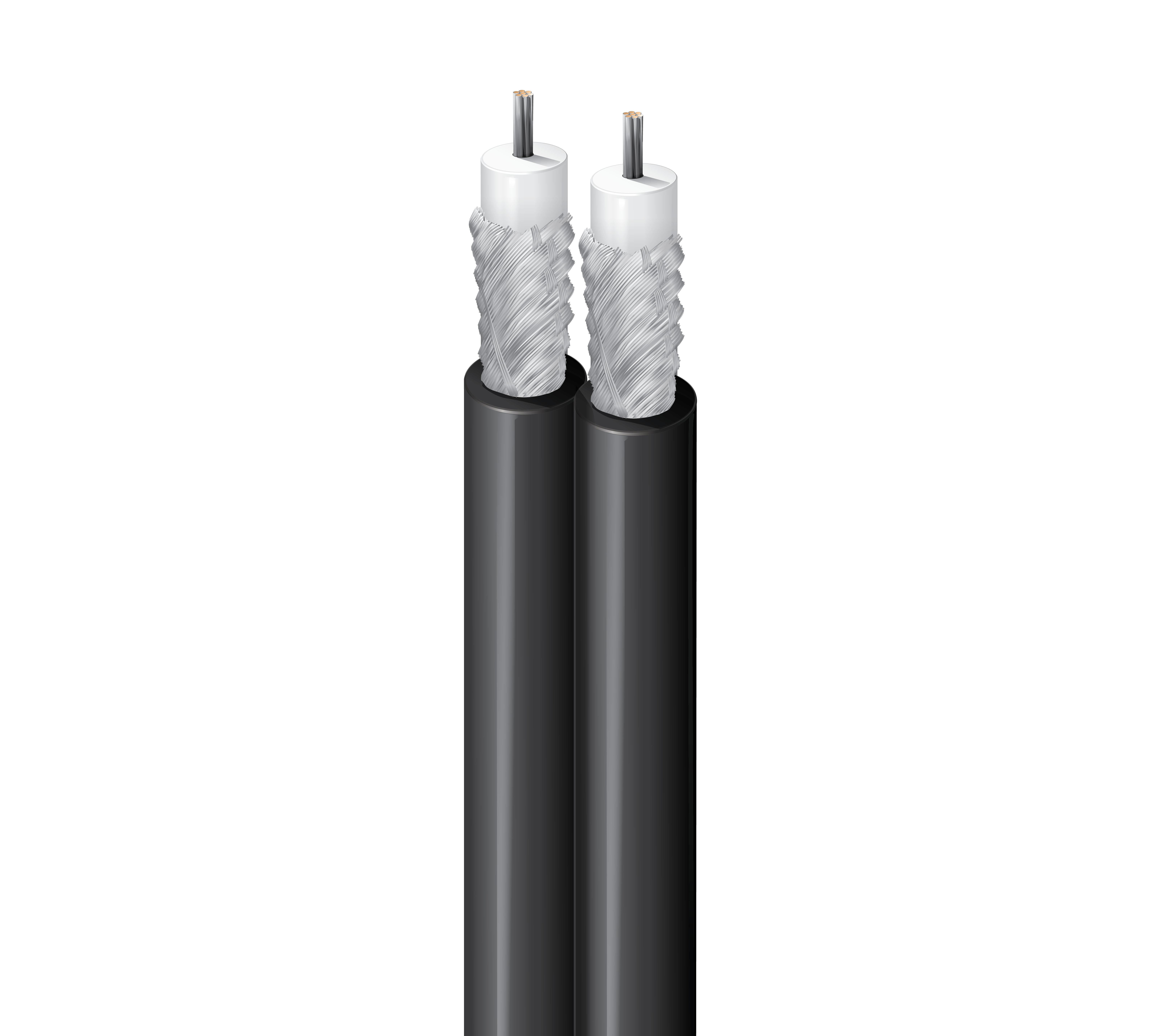

75 Ohm Analog Video Coax, Dual Ultra-miniature RG-59, 30 AWG Str TC, 95% TC French Braids, Flamarrest® Jkt, CMP, Flexible
75 Ohm Analog Video Coax, Dual Ultra-miniature RG-59, 30 AWG (7x38) Tinned Copper Conductors , FEP Insulation, 95% Tinned Copper French Braid Inner Shields, Flamarrest® Jacket, CMP, Flexible
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
7700A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 7700A B59500 | Black, Matte | Reel | 500 ft | 612825415879 | Order online |
| 7700A B591000 | Black, Matte | Reel | 1,000 ft | 612825188223 | Order online |
Specifications
Product Overview
| Suitable Applications | S-Video, Standard analog video |
|---|
Construction Details
| RG Type | Ultra-miniature 59 |
|---|---|
| Overall Cable Diameter (Nominal) | 0.107 in (2.72 mm) |
Conductor
| Size | 30 AWG |
|---|---|
| Stranding | 7x38 |
| Nom. Diameter | 0.012 in |
| Material | TC - Tinned Copper |
Insulation
| Material | PFA - Perfluoroalkoxy (Foam) |
|---|---|
| Nom. Insulation Diameter | 0.053 in (1.3 mm) |
| Color Code | White |
Inner Shield
| Shield Type | French Braid |
|---|---|
| Material | Tinned Copper (TC) |
| Coverage | 95% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.107 x .215 in |
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.7 dB/100ft |
| 5 MHz | 1.7 dB/100ft |
| 10 MHz | 2.3 dB/100ft |
| 30 MHz | 4.1 dB/100ft |
| 50 MHz | 5.3 dB/100ft |
| 100 MHz | 7.6 dB/100ft |
| 200 MHz | 11.8 dB/100ft |
| 400 MHz | 17.6 dB/100ft |
| 700 MHz | 24.2 dB/100ft |
| 900 MHz | 28.0 dB/100ft |
| 1000 MHz | 29.8 dB/100ft |
Electricals
| Nom. Conductor DCR | 92.6 Ohm/1000ft |
|---|---|
| Nom. Inner Shield DCR | 7.5 Ohm/1000ft (25 Ohm/km) |
| Nom. Capacitance Cond-to-Shield | 17.3 pF/ft (56.8 pF/m) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 78% |
Voltage
| UL Voltage Rating | 300 V (CMP) |
|---|---|
| Voltage Rating | 300 V |
Mechanical Characteristics
| Max. Pull Tension | 12 lbs (5.4 kg) |
|---|---|
| Bulk Cable Weight | 20 lbs/1000ft |
Temperature
| UL Temperature | 60°C |
|---|---|
| Operating | -20°C to +60°C |
Bend Radius
| Installation Min. | 2.2 in (56 mm) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Indoor, Aerial - Black only, When supported by messenger wire |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | NFPA 262 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 1807A |
History
| Update and Revision | Revision Number: 0.440 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
