Speaker Cable PVC 4x4.0mm2, CPR Eca.

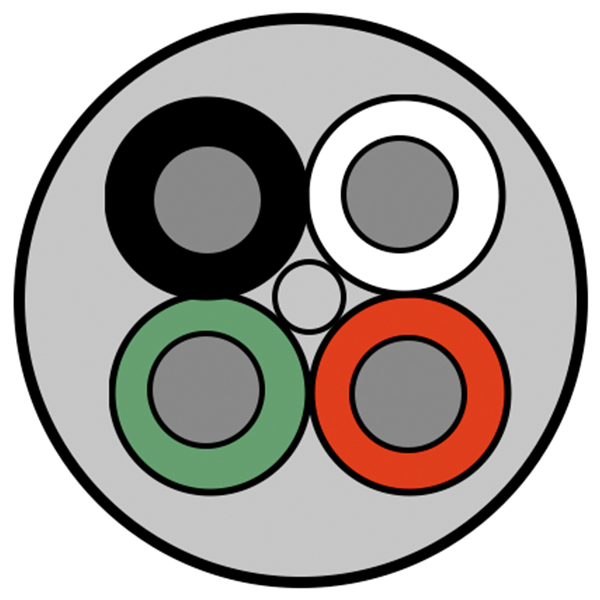

Speaker Cable, 4 Conductor 4.0mm2 (56 x 0.30mm) Oxygen-Free Bare Copper (High Conductivity), PVC Insulation, PVC Jacket, Flexible, CPR Euroclass Eca.
- Availability
- EMEA | Asia Pacific
- Status
- Active
- Orderable items
- 1
Part numbers
BE46383 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| BE46383.00305 | Black | Reel | 305 m | 8719605027603 | Order online |
Specifications
Product Overview
| Suitable Applications | Auditorium, Stadium, Race Track, Church, Temple, Synagogue, Place Of Assembly, Casino, Sound |
|---|
Construction Details
| Outer Jacket1 Table Notes | Flexible Matte Finish Sheath |
|---|---|
| Overall Cable Diameter (Nominal) | 11.00 mm (0.4331 in) |
Conductor
| Size | 4 mm2 |
|---|---|
| Stranding | Stranded |
| Material | BC - Bare Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Insulation Diameter | 3.50 mm (0.138 in) |
| Color Code | Black, Red, White, Green |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 11.00 mm (0.4331 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 4.5 Ohm/km |
|---|
Mechanical Characteristics
Temperature
| Operating | -15°C To +60°C |
|---|---|
| Storage | -15°C To +60°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2) |
| UK Regulation Compliance | UKCA Mark |
History
| Update and Revision | Revision Number: 0.168 Revision Date: 02-20-2026 |
|---|
