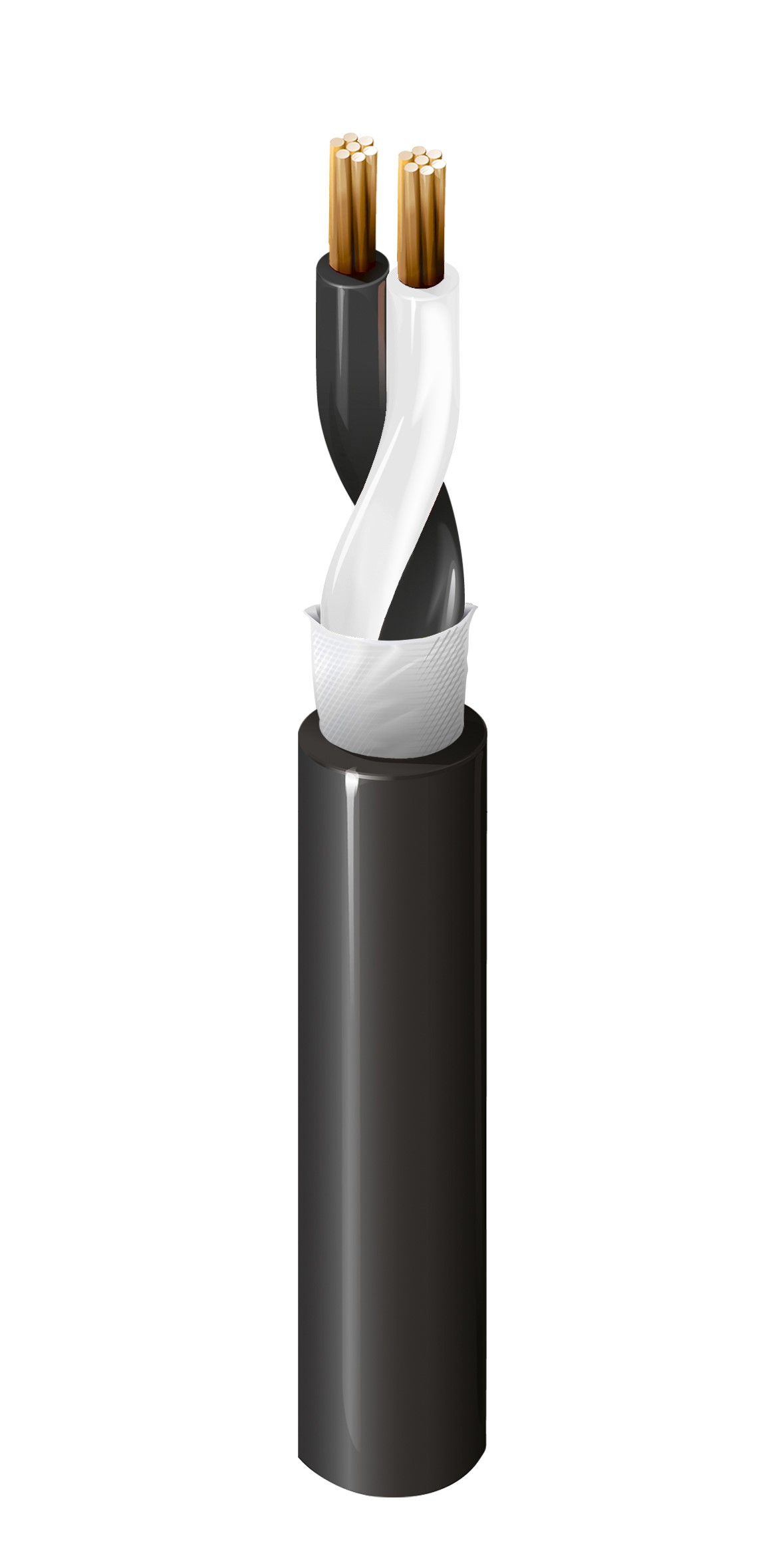

Speaker Cable, 2 Conductor 12 AWG BC, Unshielded, Waterblocked
2 Conductor 12 AWG stranded (19x25) bare copper conductors, PVC/Nylon insulation, PVC jacket.
- Availability
- Asia Pacific
- Status
- Active
- Orderable items
- 1
Part numbers
8812WB is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | Order |
|---|---|---|---|---|
| 8812WB 0101000 | Black | Reel | 1,000 ft | Order online |
Specifications
Product Overview
| Suitable Applications | AUDITORIUM , STADIUM , RACE TRACK , CHURCH , TEMPLE , SYNAGOGUE , PLACE OF ASSEMBLY , CASINO , SOUND |
|---|
Construction Details
Conductor
| Size | 12 |
|---|---|
| Stranding | 19x25 |
| Material | BC - Bare Copper |
Insulation
| Material | Color Code |
|---|---|
| PVC - Polyvinyl Chloride | Black, White |
| Nylon |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Separator | Waterblocking Tape |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 0.403 in |
Electrical Characteristics
Voltage
| UL Voltage Rating | 600 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 170 lbs (77 kg) |
|---|---|
| Bulk Cable Weight | 94 lbs/1000ft (140 kg/km) |
Temperature
| Operating | -30°C To +75°C Wet; -30°C To +90°C Dry |
|---|
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
|---|---|
| Flammability / Reaction to Fire | UL1581 Vertical Tray, 1202 |
| NEC / UL Compliance | NPLF, TC, THHN/THWN Singles |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.42 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
