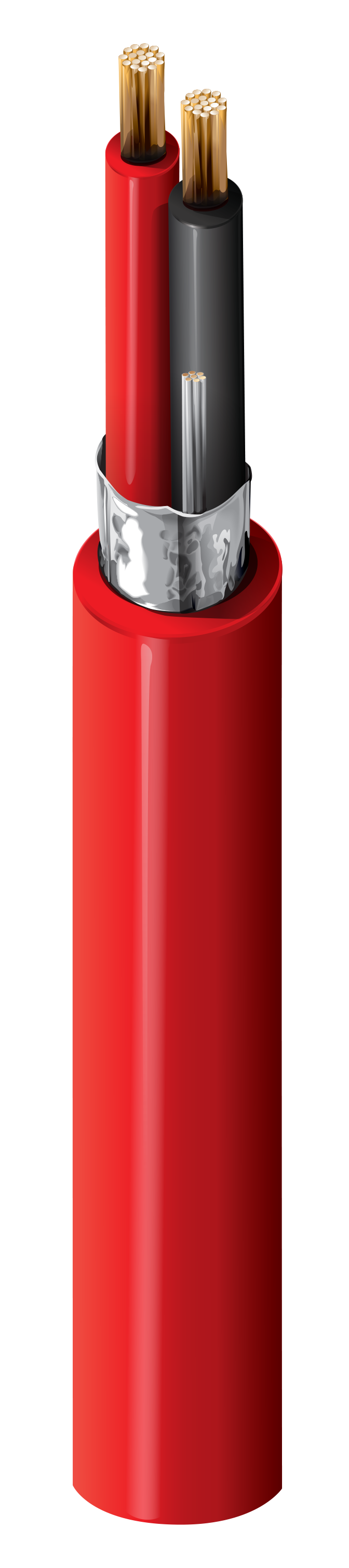

Safe-T-Line® 2x2.5mm2 Str BC, OS, LSZH, EN50200 PH120, Cca
Safe-T-Line 2 x 2.5mm2 Str BC Fire resistant approved Multi-conductor EN 50200 PH120, Shielded, Silicone Rubber insulation, Low Smoke Zero Halogen Jacket, Cca
- Availability
- Global
- Status
- Capability
Specifications
Product Overview
| Suitable Applications | Shielded Fire-Resistant cables for 120 minutes. Cables for permanent laying Fire Alarm systems. Halogen free, low emission of toxic fumes and gases and flame retardants. Suitable for indoor installations in public spaces. Cohabitation with power cables is allowed for 450/750V and 0.6/1kV. |
|---|
Construction Details
Conductor
| No. of Elements | 2 |
|---|---|
| Size | 2.5 mm2 |
| Stranding | Stranded |
| Material | BC - Bare Copper |
Insulation
| Material | Silicone Rubber |
|---|---|
| Color Code | Red, Black |
| Notes | Silicone Rubber G29 type |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Notes | Drain wire 0.5 mm2 tinned copper |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 8.70 mm (0.343 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 8 Ohm/km |
|---|---|
| Nom. Capacitance Cond-to-Cond | 140 pF/m (43 pF/ft) |
| Nom. Inductance | 0.65 uH/m |
Voltage
| Voltage Rating | 100 V |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 10 Kg/100m |
|---|
Temperature
| Installation | -20°C To +90°C |
|---|
Bend Radius
| Installation Min. | 12*D |
|---|
Standards and Compliance
| Environmental Suitability | Indoor - Euroclass Cca |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2, IEC 60332-3-25 |
| CPR Compliance | CPR Euroclass: Cca-s1b,d1,a1 |
| European Halogen Free Standards | IEC 60754-1 - Halogen Amount = Pass, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 120 |
History
| Update and Revision | Revision Number: 0.20 Revision Date: 09-03-2026 |
|---|
