Product Number: 6400FC

Security & Sound, 2 Conductor 20 AWG BC, Shielded, Plenum

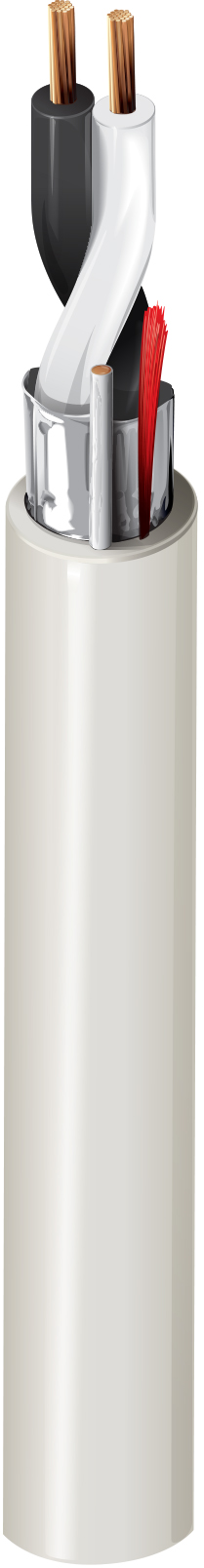

Security & Sound Cable, 2 Conductor 20 AWG stranded (7x28) bare copper conductors with FEP insulation, Beldfoil® shield, Plenum, Flamarrest® jacket with ripcord.

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

6400FC is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
6400FC 877U1000	Natural	UnReel	1,000 ft	612825423898	Order online

Specifications

Product Overview

Suitable Applications	Pro Audio, Intercom/PA Systems, Security Systems

Construction Details

Overall Cable Diameter (Nominal)	0.133 in

Conductor

Element	Conductor(s)
No. of Elements	2
Size	20 AWG
Stranding	7x28
Material	BC - Bare Copper

Insulation

Element	Conductor(s)
Material	FEP - Fluorinated Ethylene Propylene
Nom. Thickness	0.006 in (0.15 mm)
Nom. Insulation Diameter	0.048 in (1.2 mm)
Color Code	Black, Red

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	22 AWG (7x30) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.0165 in (0.419 mm)
Nom. Diameter	0.133 in
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	11.3 Ohm/1000ft (37.1 Ohm/km)

Electricals

Nom. Conductor DCR	10.2 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	52 pF/ft (170 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	93.6 pF/ft (307 pF/m)
Nom. Inductance	0.15 μH/ft (0.49 μH/m)
Max. Current	3.75 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	37.1 lbs (16.8 kg)
Bulk Cable Weight	14 lbs/1000ft

Temperature

UL Temperature	75°C
Operating	-20°C To +75°C

Bend Radius

Stationary Min.	1.33 in (33.8 mm)
Installation Min.	1.33 in

Standards and Compliance

Environmental Suitability	Indoor - Plenum, Indoor
Flammability / Reaction to Fire	NFPA 262 (UL 910), FT6
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
