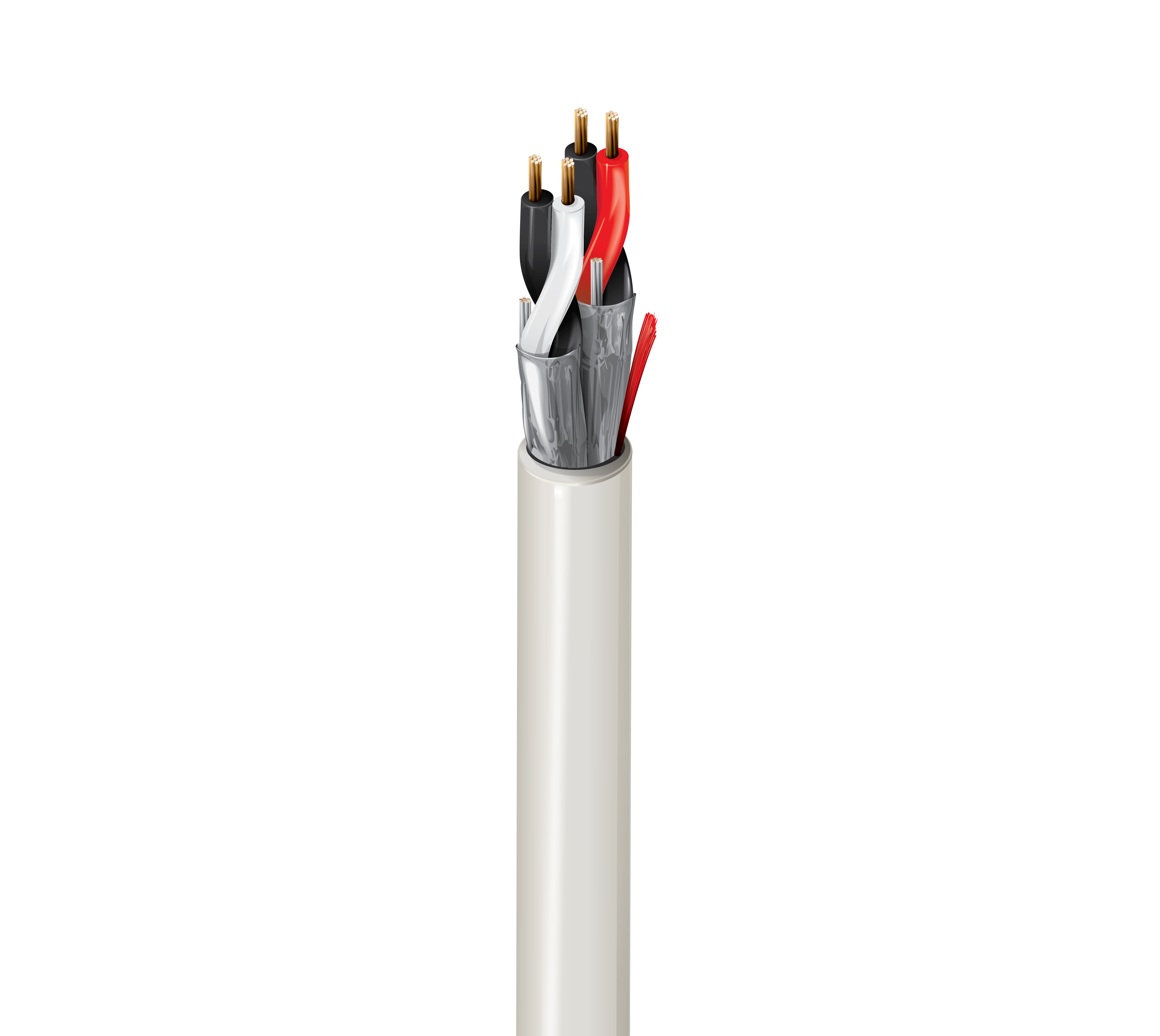

Product Number: 6341PC

Security & Sound, 2 Pair 18 AWG, BC, Individually Shielded, CMP

Security, Pro Audio & Intercom Cable, Plenum-CMP, 2 PR-18 AWG stranded bare copper pairs with FEP insulation, Individually Beldfoil® shielded and Flamarrest® jacket

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

6341PC is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
6341PC 8771000	Natural	Reel	1,000 ft	612825176275	C	Order online

Specifications

Product Overview

Suitable Applications	Pro Audio, Intercom/PA Systems, Security Systems

Construction Details

Overall Cable Diameter (Nominal)	0.281 in (7.14 mm)

Conductor

Element	Pair(s)
No. of Elements	2
Size	18 AWG
Stranding	7x26
Material	BC - Bare Copper

Insulation

Element	Pair(s)
Material	FEP - Fluorinated Ethylene Propylene
Nom. Thickness	0.01 in (0.25 mm)
Nom. Insulation Diameter	0.066 in (1.7 mm)
Color Code	Black and Red, Black and White

Inner Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	24 AWG (7x32) TC

Outer Shield

Material	No Shield

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.0165 in (0.419 mm)
Nom. Diameter	0.281 in (7.14 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Nom. Conductor DCR	6.93 Ohm/1000ft (22.7 Ohm/km)
Nom. Inner Shield DCR	14.4 Ohm/1000ft (47.2 Ohm/km)
Nom. Capacitance Cond-to-Cond	44 pF/ft (140 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	79.2 pF/ft (260 pF/m)
Nom. Inductance	0.16 μH/ft (0.52 μH/m)
Max. Current	14 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	95.1 lbs (43.1 kg)
Bulk Cable Weight	41 lbs/1000ft (61 kg/km)

Temperature

UL Temperature	75°C
Operating	0°C to +75°C

Bend Radius

Stationary Min.	2.81 in (71.4 mm)
Installation Min.	2.81 in (71.4 mm)

Standards and Compliance

Environmental Suitability	Indoor - Plenum, Indoor
Flammability / Reaction to Fire	NFPA 262 (UL 910), FT6
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
