Product Number: 4300FES

Security & Sound, 2 Conductor 18 AWG BC, LSZH, Shielded, SWA, Eca

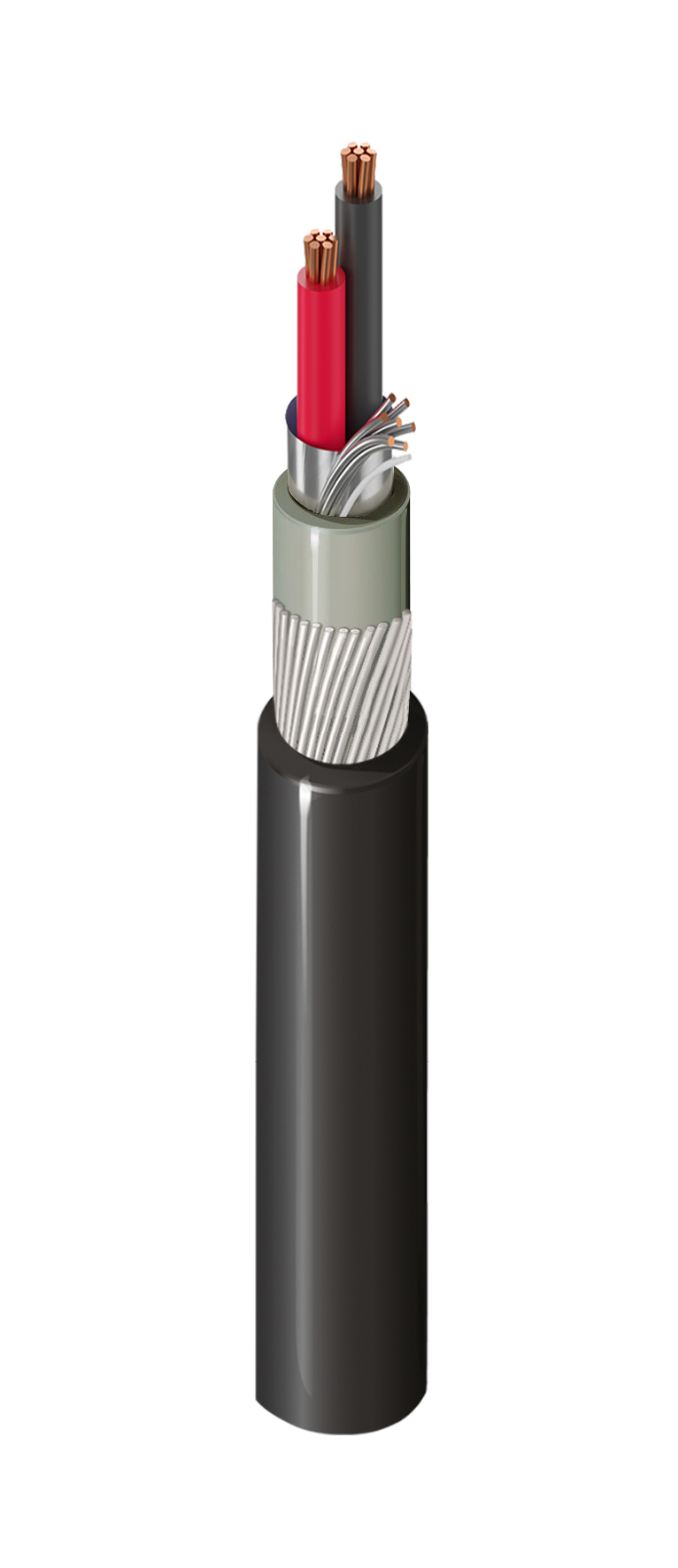

Security & Commercial Audio Cable, 2-18 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield, LSZH inner jacket , Steel Wire Armour, LSZH outer Jacket CPR Eca

Availability: Global
Status: Capability

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	Intercom/PA Systems, Sound/Audio Systems

Product Life Cycle

Life Cycle	Capability - the product is not yet standardly available for orders but can be manufactured

Construction Details

Conductor

Element	Conductor(s)
No. of Elements	2
Size	18 AWG
Stranding	7x26
Material	BC - Bare Copper

Insulation

Element	Conductor(s)
Material	PP - Polypropylene
Nom. Thickness	0.2 mm (0.0079 in)
Nom. Insulation Diameter	1.5 mm (0.059 in)
Color Code	Black, Red

Inner Shield

Shield Type	Tape
Material	Polyester + Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	24 AWG (7x32) TC

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	24 AWG (7x32) TC

Inner Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Thickness	0.8 mm (0.031 in)
Nom. Diameter	4.8 mm (0.19 in)

Armor

Armor Type & Material	SWA - Steel Wire Armor
Armor Thickness	0.9 mm
Coverage	95%

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Thickness	1.3 mm (0.051 in)
Nom. Diameter	9.2 mm (0.36 in)

Electrical Characteristics

Nom Outer Shield DCR	23.6 Ohm/km (7.19 Ohm/1000ft)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	21.3 Ohm/km (6.49 Ohm/1000ft)
Nom. Capacitance Cond-to-Cond	110 pF/m (34 pF/ft)
Nom. Capacitance Cond-to-Other (Conds + Shield)	200 pF/m (61 pF/ft)
Max. Current	5 Amps per Conductor

Voltage

Voltage Rating	300 V

Mechanical Characteristics

Temperature

Operating	-20°C To +70°C
Installation	-20°C To +70°C
Storage	-30°C To +70°C

Bend Radius

Stationary Min.	20.75 mm (0.8169 in)
Installation Min.	41.5 mm (1.63 in)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor - Euroclass Eca, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance - UL 1581 sec 1200 Black Only
Flammability / Reaction to Fire	IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca; CPR UKCA Class: Eca
CENELEC Compliance	EN 50290-2-20
European Halogen Free Standards	IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2)
UK Regulation Compliance	UKCA Mark

Product Notes

Notes	This is a preliminary Technical Design Specification (TDS). The minimum business quantity to offer is 3km for the first order. Please liaise with your Belden representative for confirmation.
