1305A

Product Number: 1305A

CatSnake® Category 5E Tactical Upjacketed Cable, 4 Bonded-Pairs, U/UTP

CatSnake® Category 5E Upjacketed Tactical Cable, 4 Bonded-Pairs, 24 AWG Stranded Bare Copper Conductors, U/UTP, Inner PVC jacket, Outer PVC Jacket

Availability
Global
Status
Active
Orderable items
2
Request a quoteOrder options (2)

Ships from and sold by A5 IT.

Part numbers

1305A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorPutup TypeLengthUPCOrder
1305A B59500Black, MatteReel500 ft612825111184Order online
1305A B591000Black, MatteReel1,000 ft612825111177Order online

Specifications

Product Overview

Suitable ApplicationsCategory 5e Patch, CobraNet, eSnake, Ethersound, Digital Audio Over Ethernet, PoE, PoE+
PatentThis product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents .

Construction Details

Bonded-PairYes
Overall Cable Diameter (Nominal)0.298 in (7.57 mm)

Conductor

Size24 AWG
Stranding7x32
MaterialBC - Bare Copper
No. of Pairs4

Insulation

MaterialPO - Polyolefin
Color CodeWhite/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Inner Jacket

MaterialPVC - Polyvinyl Chloride
Nom. Diameter0.236 in (5.99 mm)
RipcordNo

Outer Jacket

SeparatorCentral Filler
MaterialPVC - Polyvinyl Chloride
Nom. Diameter0.298 in (7.57 mm)
RipcordNo

Electrical Characteristics

Electricals

Max. Conductor DCR93.8 Ohm/km (28.6 Ohm/1000ft)
Max. Capacitance Unbalance90 pF/100m

Delay

Frequency100 MHz
Max. Delay537.6 ns/100m
Max. Delay Skew45 ns/100m
Nom. Velocity of Prop.70%

High Frequency

Frequency [MHz]Max. Insertion Loss (Attenuation) [dB/100m]Min. NEXT [dB]Min. PSNEXT [dB]Min. ACR [dB]Min. PSACR [dB]Min. ACRF (ELFEXT) [dB]Min. PSACRF (PSELFEXT) [dB]Min. RL (Return Loss) [dB]Max./Min. Input Impedance (unFitted) [Ohm]Max./Min. Fitted Impedance [Ohm]
12.465.362.363.360.363.860.820.0100 +/- 15105 +/- 10
44.956.353.352.249.251.848.823.0100 +/- 15100 +/- 10
86.951.848.846.043.045.742.724.5100 +/- 15100 +/- 10
107.850.347.343.840.843.840.825.0100 +/- 15100 +/- 10
169.947.244.239.036.039.736.725.0100 +/- 15100 +/- 10
2011.145.842.836.533.537.834.825.0100 +/- 15100 +/- 10
2512.544.341.333.930.935.832.824.3100 +/- 15100 +/- 10
31.2514.142.939.931.228.233.930.923.6100 +/- 15100 +/- 10
62.520.438.435.421.418.427.924.921.5100 +/- 15100 +/- 10
10026.435.332.313.310.323.820.820.1100 +/- 15100 +/- 10
15533.732.429.44.41.420.017.018.8100 +/- 18100 +/- 10
20038.930.827.89.217.814.818.0100 +/- 20100 +/- 10
25044.229.326.3015.812.817.3100 +/- 20100 +/- 10
30049.228.125.114.311.316.8100 +/- 20100 +/- 10
31050.127.924.914.011.016.7100 +/- 20100 +/- 10
35053.827.124.112.99.916.3100 +/- 22100 ± 10
31049.527.927.918
35053.227.227.217

Voltage

Voltage Rating300 V

Mechanical Characteristics

Max. Pull Tension40 lbs (18 kg)
Bulk Cable Weight38 lbs/1000ft (57 kg/km)

Temperature

Operating-20°C To +75°C
Installation0°C To +50°C
Storage-20°C To +75°C

Bend Radius

Stationary Min.1.25 in (31.8 mm)
Installation Min.3.0 in (76 mm)

Standards and Compliance

Environmental SuitabilityIndoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
ICEA ComplianceS-90-661
NEMA ComplianceNEMA WC-63.1
Data CategoryCategory 5e
TIA/EIA ComplianceANSI/TIA-568.2-D Category 5e
ISO/IEC ComplianceISO/IEC 11801-1, IEC 61156-6
European Directive ComplianceEU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
APAC ComplianceChina RoHS II (GB/T 26572-2011)

Product Notes

NotesElectrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 100 MHz are for Engineering Information Only. Operating Temperatures Are Subject to Length De-rating.

History

Update and RevisionRevision Number: 0.714 Revision Date: 07-14-2026

Resources

Belden 1305A technical datasheet

Related ethernet snake cable

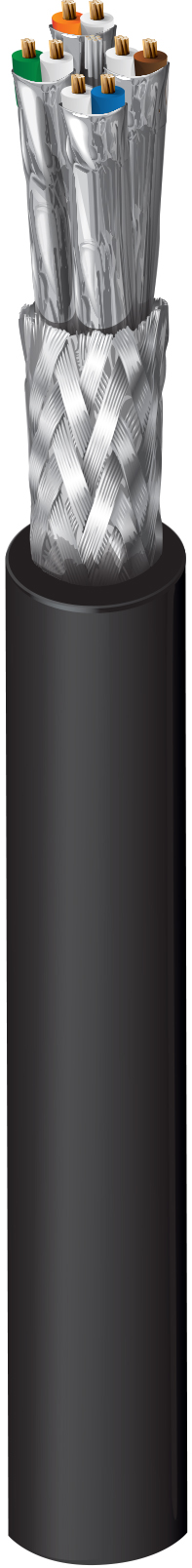

1302E

1302E

CATSNAKE Category 6A Cable, 4 Pair, S/FTP, PVC jacket

24 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride

5 items

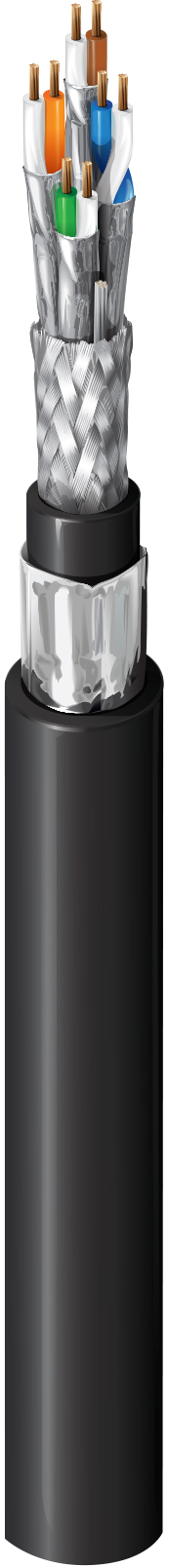

1303E

1303E

CATSNAKE Category 6A Cable, 4 Pair, S/FTP, PVC PVC upjacketed

24 AWG · BC - Bare Copper · PE - Polyethylene (Foam)

6 items

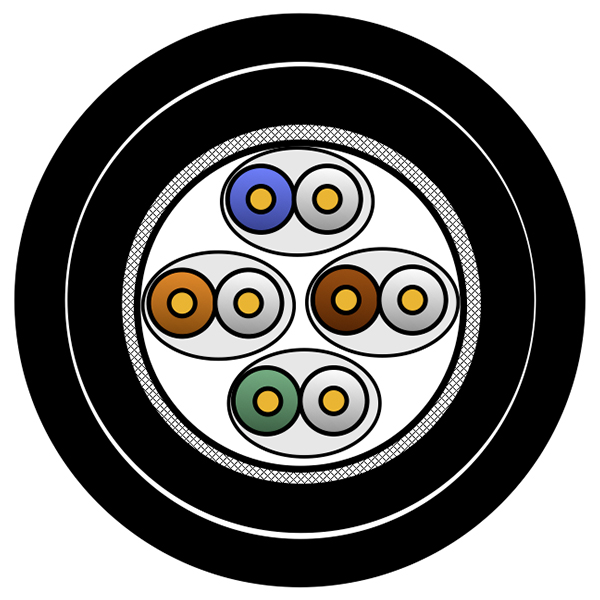

1303EPU
