MICROPHONE CABLE 24 AWG PVC
MICROPHONE CABLE 24AWG/0.22mm2 0.22mm2 PVC
- Availability
- Global
- Status
- Active
- Orderable items
- 6
Part numbers
BE46349 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| BE46349.10100 | Black | Reel | 100 m | 8719605027344 | Order online |
| BE46349.00500 | Black | Reel | 500 m | 8719605027337 | Order online |
| BE46349.001000 | Black | Reel | 1,000 m | 8719605027313 | Order online |
| BE46349.13100 | Blue | Reel | 100 m | 8719605027375 | Order online |
| BE46349.11100 | Green | Reel | 100 m | 8719605027351 | Order online |
| BE46349.12100 | Red | Reel | 100 m | 8719605027368 | Order online |
Specifications
Product Overview
| Suitable Applications | Microphone Cable |
|---|

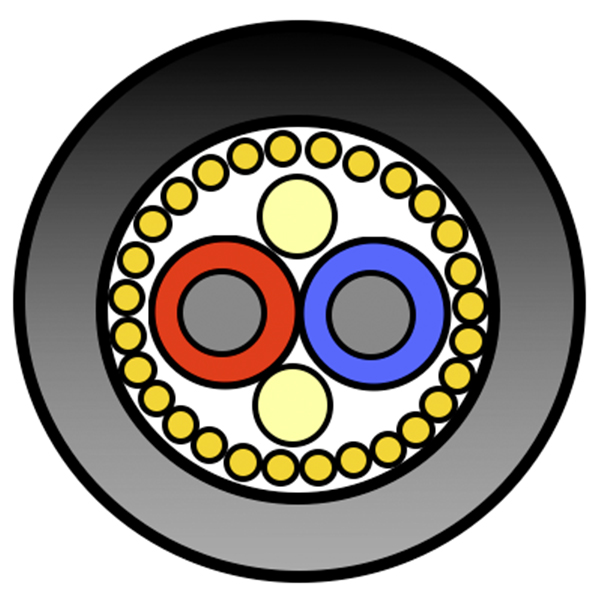

Construction Details
| Outer Jacket1 Table Notes | Flexible Matte Finish Sheath |
|---|
Conductor
| Size | 24 |
|---|---|
| Stranding | Stranded |
| Material | BC - Bare Copper |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Nom. Insulation Diameter | 1.45 mm (0.0571 in) |
| Color Code | Red, Blue |
Outer Shield
| Shield Type | Spiral Serve / Screen |
|---|---|
| Material | Bare Copper (BC) |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 6.10 mm |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 78 Ohm/km |
|---|---|
| Nom. Capacitance Cond-to-Cond | 60 pF/m (18 pF/ft) |
| Nom. Capacitance Cond-to-Shield | 110 pF/m (34 pF/ft) |
Mechanical Characteristics
Temperature
| Storage | -15°C To +60°C |
|---|
Bend Radius
| Installation Min. | 61 mm |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|
History
| Update and Revision | Revision Number: 0.167 Revision Date: 02-20-2026 |
|---|
