AUDIO ANALOG 24 PAIR, 26AWG, ISTP, PVC, STAGE
ANALOG AUDIO 24 PAIR, 26AWG/0.14mm2, ISTP, PVC, STAGE
- Availability
- Global
- Status
- Discontinued
- Orderable items
- 1
Part numbers
BE46306 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | Order |
|---|---|---|---|---|
| BE46306.00250 | Black | Reel | 250 m | Order online |
Specifications
Product Overview
| Suitable Applications | The Belden 46-analog-series is a flexible audio snake cable with an overall braid shield; This makes the cable suitable for mobile applications; Jacketed pairs are individually numbered for easy identification |
|---|
Product Life Cycle
| Life Cycle | Discontinued - the product is no longer manufactured |
|---|

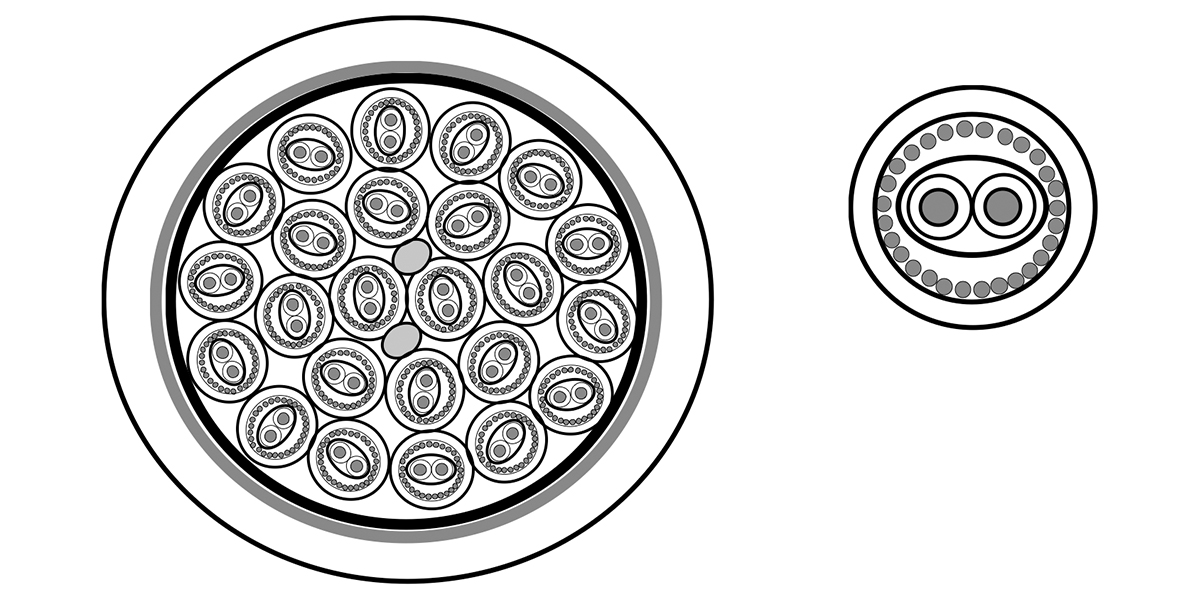

Construction Details
| Inner Jacket Table Notes | Elements numbered 1 - 24 |
|---|---|
| Outer Jacket1 Table Notes | Flexible Matte Finish Sheath |
Conductor
| Size | 26 |
|---|---|
| Stranding | 18x38 |
| Material | TC - Tinned Copper |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Nom. Insulation Diameter | 1.05 mm (0.0413 in) |
| Color Code | Red & White |
Inner Shield
| Shield Type | Material |
|---|---|
| Tape | Polyester |
| Spiral Serve / Screen | Tinned Copper (TC) |
Outer Shield
| Shield Type | Braid |
|---|---|
| Material | Tinned Copper (TC) |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 3.05 mm (0.120 in) |
| Color | Gray (like RAL 7001) |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 22.40 mm (0.8819 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 260 Ohm/km |
|---|---|
| Nom. Capacitance Cond-to-Cond | 70 pF/m (21 pF/ft) |
| Nom. Characteristic Impedence | 90 Ohm |
| Nom. Velocity of Prop. | 66% |
Mechanical Characteristics
Temperature
| Installation | -5°C To +70°C |
|---|---|
| Storage | -30°C To +70°C |
Bend Radius
| Installation Min. | 224 mm (8.82 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|
History
| Update and Revision | Revision Number: 0.192 Revision Date: 08-19-2026 |
|---|
