Product Number: 9395

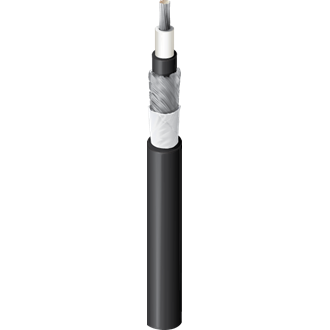

Microphone Cable, 1 Conductor 18 AWG, TC

18 AWG stranded (41x34) high-conductivity TC condcutor, EPDM rubber insulation, conductive textile (100%) plus TC spiral shields (70% coverage), paper tape, CPE jacket.

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

9395 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
9395 0101000	Black	Reel	1,000 ft	612825358633	C	Order online

Specifications

Product Overview

Suitable Applications	Microphone, Musical Instrument

Construction Details

Overall Cable Diameter (Nominal)	0.235 in (5.97 mm)

Conductor

No. of Elements	1
Size	18 AWG
Stranding	41x34
Nom. Diameter	0.047 in
Material	TC - Tinned Copper (High Conductivity)

Insulation

Material	EPDM - Ethylene Propylene Diene Monomer
Nom. Insulation Diameter	0.137 in (3.48 mm)
Color Code	White

Outer Shield

Layer	Outer Shield Type	Material	Coverage	Notes
1	Spiral Serve / Screen	Textile (Conductive)	100%
2	Spiral Serve / Screen	Tinned Copper (TC)	70%
3	Tape		100%	Conductive Dacron Tape

Outer Jacket

Material	CPE - Chlorinated Polyethylene
Nom. Diameter	0.235 in (5.97 mm)

Electrical Characteristics

Electricals

Nom. Conductor DCR	6.5 Ohm/1000ft (21 Ohm/km)
Nom. Outer Shield DCR	11.3 Ohm/1000ft (37.1 Ohm/km)
Nom. Capacitance Cond-to-Shield	55 pF/ft (180 pF/m)
Nom. Characteristic Impedance	35 Ohm
Nom. Velocity of Prop.	62%

Voltage

Voltage Rating	300 V RMS

Mechanical Characteristics

Max. Pull Tension	60 lbs (27 kg)
Bulk Cable Weight	34 lbs/1000ft (51 kg/km)

Temperature

Operating	-30°C To +60°C

Bend Radius

Stationary Min.	2.35 in (59.7 mm)
Installation Min.	2.35 in (59.7 mm)

Standards and Compliance

Environmental Suitability	Indoor (Not Riser or Plenum), Indoor
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
