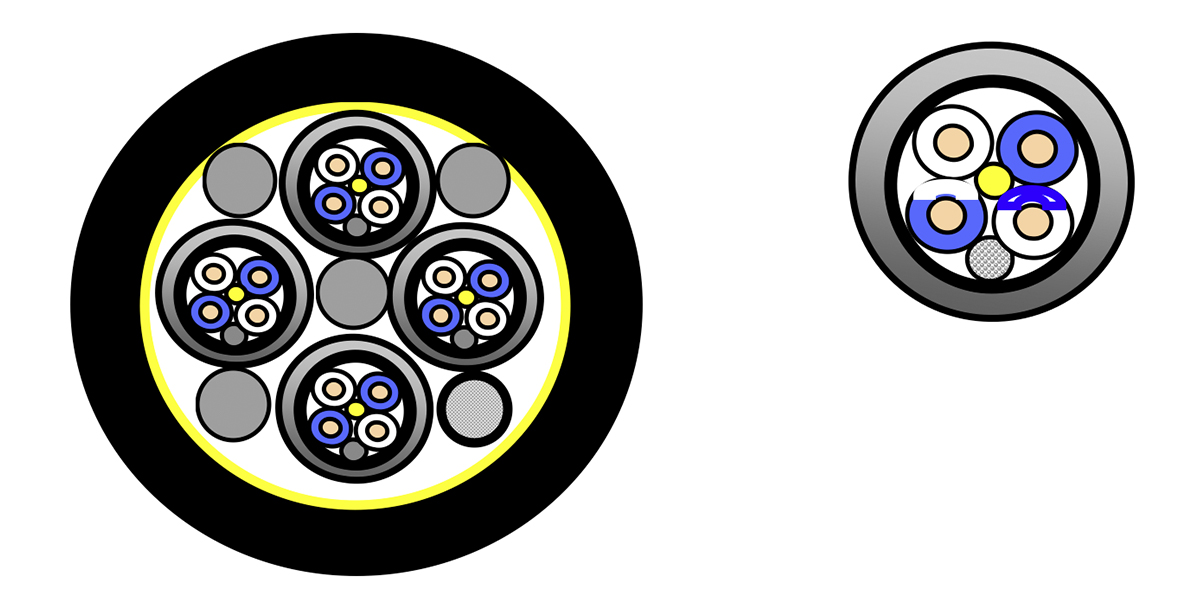

4 x QUAD SNAKE,26AWG, LSZH-C
AUDIO 4 x QUAD SNAKE,26AWG/0.14mm2, LSZH-C
- Availability
- Global
- Status
- Discontinued
- Orderable items
- 3
Part numbers
70065CH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | Order |
|---|---|---|---|---|
| 70065CH.00100 | Black | Reel | 100 m | Order online |
| 70065CH.00500 | Black | Reel | 500 m | Order online |
| 70065CH.001000 | Black | Reel | 1,000 m | Order online |
Specifications
Product Overview
| Suitable Applications | 4 fold star-quad FRNC microphone cable |
|---|
Product Life Cycle
| Life Cycle | Discontinued - the product is no longer manufactured |
|---|
Construction Details
| Inner Shield Table Notes | Aluminum inside |
|---|---|
| Inner Jacket Table Notes | Elements are numbered 1-4 for identification |
Conductor
| Size | 26 |
|---|---|
| Stranding | Stranded |
| Material | BC - Bare Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene | 1.15 mm (0.0453 in) | White & Blue & White/Blue & Blue/White |
| 1, 2, 3, 4 |
Inner Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
Inner Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 3.70 mm (0.146 in) |
| Color | Gray (like RAL 7001) |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 1.40 mm (0.0551 in) |
| Nom. Diameter | 11.70 mm (0.4606 in) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 110.0 Ohm/km (33.53 Ohm/1000ft) |
|---|---|
| Nom. Capacitance Cond-to-Cond | 164 pF/m (50.0 pF/ft) |
| Nom. Capacitance Cond-to-Shield | 222 pF/m (67.7 pF/ft) |
Mechanical Characteristics
Bend Radius
| Installation Min. | 117 mm (4.61 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-3-24 |
History
| Update and Revision | Revision Number: 0.259 Revision Date: 03-13-2026 |
|---|
