2 x QUAD SNAKE, 26AWG, LSZH-C
AUDIO 2 x QUAD SNAKE, 26AWG/0.14mm2, LSZH-C
- Availability
- Global
- Status
- Discontinued
Specifications
Product Overview
| Suitable Applications | 2 fold star-quad FRNC microphone cable |
|---|
Physical Characteristics (Overall)
| Conductor Count | 8 |
|---|---|
| Color Chart1 Table Notes | With ringmarking |
| Inner Shield Table Notes | Aluminum inside |
| Inner Jacket Table Notes | Elements are numbered 1-2 for identification |
Conductor
| AWG | 26 |
|---|---|
| Stranding | Stranded |
| Material | BC - Bare Copper |
| Construction n x D | 19x0.10 mm |
Insulation
| Type | Insulation |
|---|---|
| Material | PE - Polyethylene |
| Nominal Diameter | 1.15 mm |
| Diameter +/- Tolerance | 0.05 mm |
Color Chart
| Number | Quad 1 |
|---|---|
| Color | White & Blue & White/Blue & Blue/White |
Color Chart 2
| Number | Color |
|---|---|
| Quad 1 | 1 |
| Quad 2 | 2 |
Inner Shield
| Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage [%] | 100% |
| Drainwire Material | Stranded tinned copper |
| Drainwire AWG | 26 |
| Drainwire Construction n x D | 7x0.16 mm |
| Drainwire Position | Under shielding foil |
Inner Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Color | Gray (like RAL 7001) |
| Nominal Diameter | 3.70 mm |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nominal Diameter | 10.00 mm |
| Diameter +/- Tolerance | 0.50 mm |
| Nominal Wall Thickness | 1.30 mm |

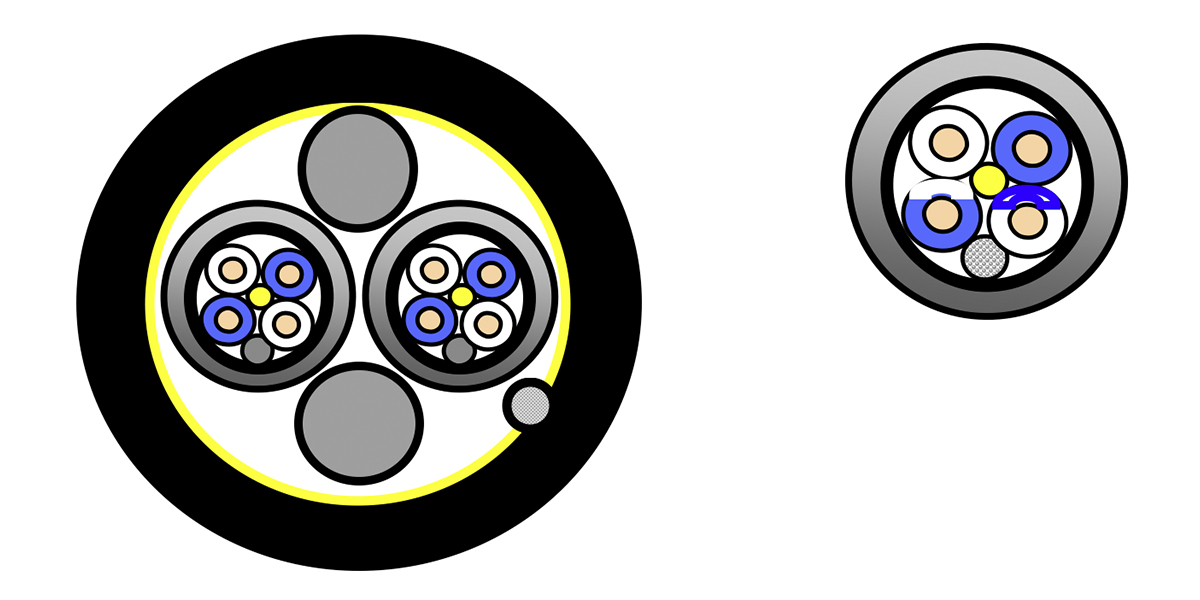

Construction and Dimensions
Cabling
| Description | 2 fillers + 2 quads + 1 stranded tinned copper drainwire (16AWG) (26x0.254 mm) covered with a non-woven foil |
|---|
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | 110.0 Ohm/km |
|---|
Capacitance
| Nom. Capacitance Conductor to Conductor | 164 pF/m |
|---|---|
| Nom. Capacitance Conductor to Shield | 222 pF/m |
Voltage
| Voltage Rating [V] | 300 V |
|---|
Temperature Range
| Other Temp Range | -30 to +70 °C |
|---|
Mechanical Characteristics
| Minimum Bend Radius During Installation | 100 mm |
|---|---|
| Minimum Bend Radius During Operation | 150 mm |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|
Flammability, LS0H, Toxicity Testing
| IEC Flammability | IEC 60332-3-24 |
|---|
History
| Update and Revision | Revision Number: 0.248 Revision Date: 03-13-2026 |
|---|
