AUDIO ANALOG 4 PAIR, 26AWG, LSZH
ANALOG AUDIO 4 PAIR, 26AWG/0.14mm2, LSZH
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
70042 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 70042.00100 | Black | Reel | 100 m | 8719605009814 | Order online |
| 70042.00500 | Black | Reel | 500 m | 8719605009821 | Order online |
Specifications
Product Overview
| Suitable Applications | Audio snake cable used in professional studios; For the transmission of analogue signals |
|---|

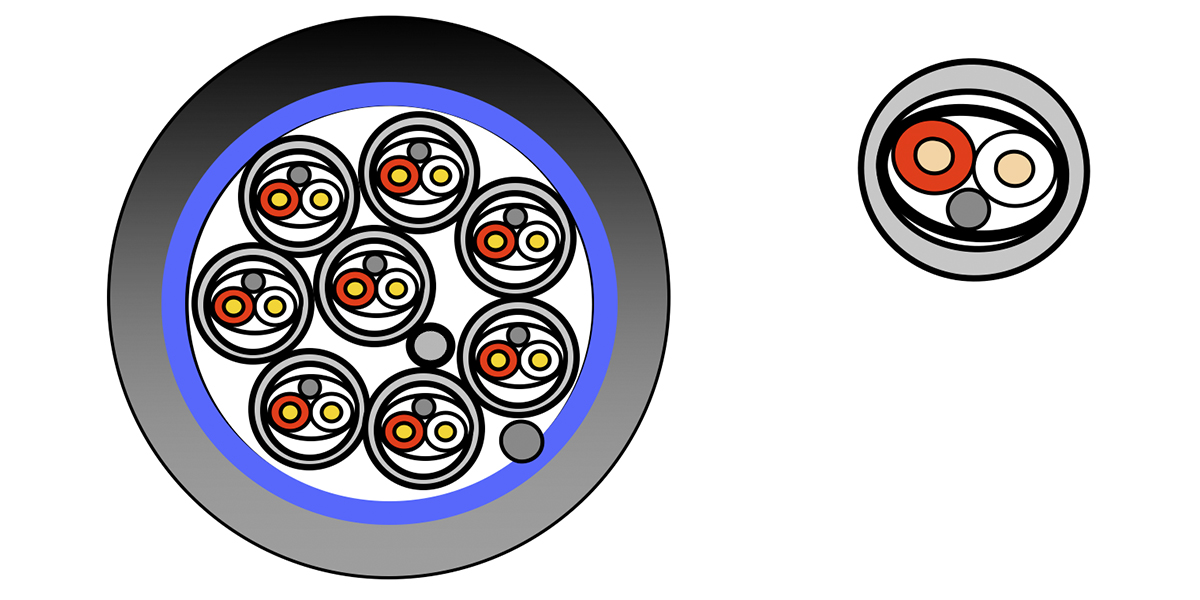

Construction Details
| Inner Shield Table Notes | Aluminum inside |
|---|---|
| Inner Jacket Table Notes | Elements are numbered for identification |
Conductor
| Size | 26 |
|---|---|
| Stranding | 7x34 |
| Material | BC-OFHC - Oxygen-Free Bare Copper (High Conductivity) |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Nom. Insulation Diameter | 1.00 mm (0.0394 in) |
| Color Code | White & Red |
Inner Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
Inner Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 2.80 mm (0.110 in) |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 1.20 mm (0.0472 in) |
| Nom. Diameter | 9.30 mm |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 134.0 Ohm/km (40.84 Ohm/1000ft) |
|---|---|
| Nom. Capacitance Cond-to-Cond | 90 pF/m (27 pF/ft) |
| Nom. Velocity of Prop. | 66% |
Mechanical Characteristics
Bend Radius
| Installation Min. | 93 mm |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| UK Regulation Compliance | UKCA Mark |
History
| Update and Revision | Revision Number: 0.178 Revision Date: 09-07-2025 |
|---|
