AUDIO ANALOG 10 PAIR, 26AWG, LSZH
ANALOG AUDIO 10 PAIR, 26AWG/0.14mm2, LSZH
- Availability
- Global
- Status
- Discontinued
Specifications
Product Overview
| Suitable Applications | Audio snake cable used in professional studios for the transmission of analogue signals |
|---|
Physical Characteristics (Overall)
| Conductor Count | 20 |
|---|---|
| Inner Jacket Table Notes | Elements are numbered for identification |
Conductor
| AWG |
|---|
Insulation
| Diameter +/- Tolerance | 0.03 mm |
|---|
Color Chart
| Number | Pairs 1 t/m 10 |
|---|
Inner Shield
| Drainwire Material | Stranded tinned copper |
|---|---|
| Drainwire AWG | 16 |
Inner Jacket
| Diameter +/- Tolerance | 0.1 mm |
|---|
Outer Shield
| Drainwire Material | TC - Tinned Copper |
|---|---|
| Drainwire AWG | 26 |
| Drainwire Construction n x D | Stranded |
Outer Jacket
| Diameter +/- Tolerance | 0.1 mm |
|---|

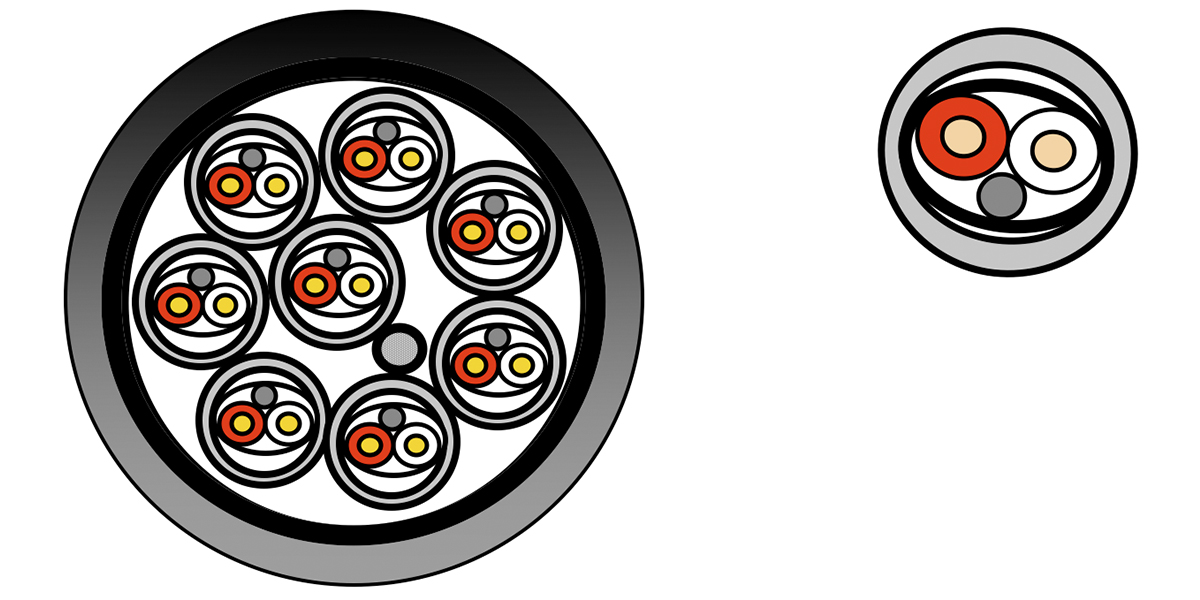

Construction and Dimensions
Cabling
| Description | 10 pairs + drainwire stranded tinnend copper (AWG26)(7x0.16mm) + Filler |
|---|
Electrical Characteristics
Capacitance
| Nom. Capacitance Conductor to Conductor | 90 pF/m |
|---|
Delay
| Nominal Velocity of Propagation (VP) [%] | 66% |
|---|
Temperature Range
| Other Temp Range | -30-+70 °C |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|
Flammability, LS0H, Toxicity Testing
| IEC Flammability | IEC 60332-1-2 |
|---|---|
| LOI of Jacket | 34 % |
| IEC 60754-1 - Halogen Amount | Zero |
History
| Update and Revision | Revision Number: 0.220 Revision Date: 10-07-2025 |
|---|
