AUDIO ANALOG 40 PAIR 26AWG, BRAID PVC
ANALOG AUDIO 40 PAIR 26AWG/0.14mm2, BRAID PVC
- Availability
- Global
- Status
- Discontinued
- Orderable items
- 1
Part numbers
70037 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | Order |
|---|---|---|---|---|
| 70037.00500 | Black | Reel | 500 m | Order online |
Specifications
Product Overview
| Suitable Applications | Audio snake cable used in professional studios; For the transmission of analogue signals |
|---|
Product Life Cycle
| Life Cycle | Discontinued - the product is no longer manufactured |
|---|

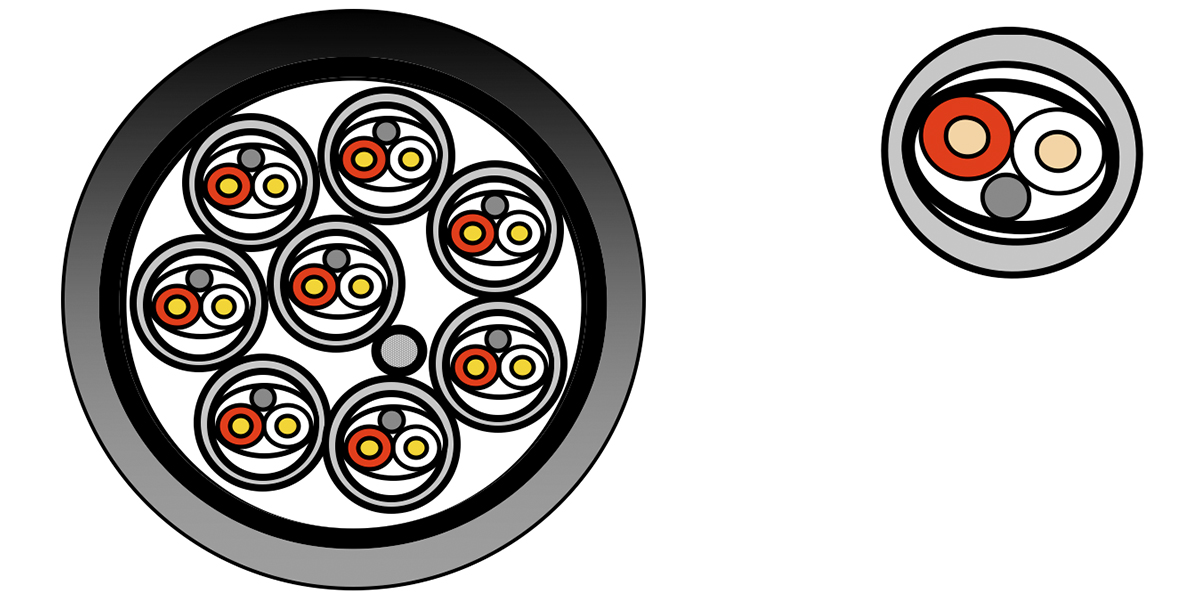

Construction Details
| Inner Shield Table Notes | Aluminum inside |
|---|---|
| Inner Jacket Table Notes | Elements are numbered for identification |
Conductor
| Size | 26 |
|---|---|
| Stranding | 7x34 |
| Material | BC-OFHC - Oxygen-Free Bare Copper (High Conductivity) |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Nom. Insulation Diameter | 1.00 mm (0.0394 in) |
| Color Code | White & Red |
Inner Shield
| Material | Bi-Laminate (Alum+Poly) |
|---|---|
| Coverage | 100% |
Outer Shield
| Shield Type | Material |
|---|---|
| Tape | Polyester |
| Braid | Tinned Copper (TC) |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 2.80 mm (0.110 in) |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 1.50 mm (0.0591 in) |
| Nom. Diameter | 24.40 mm (0.9606 in) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 134.0 Ohm/km (40.84 Ohm/1000ft) |
|---|---|
| Nom. Capacitance Cond-to-Cond | 90 pF/m (27 pF/ft) |
| Nom. Characteristic Impedence | 90 Ohm |
| Nom. Velocity of Prop. | 66% |
Mechanical Characteristics
Bend Radius
| Installation Min. | 244 mm (9.61 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|
History
| Update and Revision | Revision Number: 0.265 Revision Date: 03-13-2026 |
|---|
