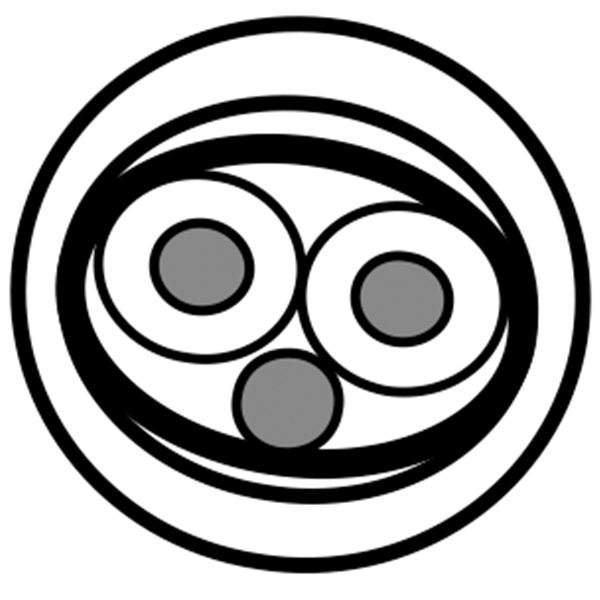

AUDIO ANALOG 1 PAIR, 22AWG, ISTP, PVC
ANALOG AUDIO 1 PAIR, 22AWG/0.34mm2, ISTP, PVC
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
70031E is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 70031E.001000 | Black | Reel | 1,000 m | 8719605009593 | Order online |
Specifications
Product Overview
| Suitable Applications | Single pair 22 AWG screened pair cable for analog audio |
|---|
Construction Details
Conductor
| Size | 22 |
|---|---|
| Stranding | 7x30 |
| Material | BC-OFHC - Oxygen-Free Bare Copper (High Conductivity) |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Nom. Insulation Diameter | 1.16 mm (0.0457 in) |
| Color Code | Red & Black |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 3.5 mm |
Electrical Characteristics
| Nom Outer Shield DCR | 46.9 Ohm/km (14.3 Ohm/1000ft) |
|---|
Electricals
| Nom. Conductor DCR | 46 Ohm/km (14 Ohm/1000ft) |
|---|---|
| Nom. Capacitance Cond-to-Cond | 115 pF/m (35.1 pF/ft) |
| Nom. Capacitance Cond-to-Shield | 220 pF/m (67 pF/ft) |
| Nom. Inductance | 0.56 μH/m (0.17 μH/ft) |
Mechanical Characteristics
| Max. Pull Tension | 120 N (27 lbf) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2 |
History
| Update and Revision | Revision Number: 0.126 Revision Date: 09-07-2025 |
|---|
