AUDIO ANALOG 1 PAIR 26AWG,TPE
ANALOG AUDIO 1 PAIR 26AWG/0.14mm2, TPE
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
70018E is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | Order |
|---|---|---|---|---|
| 70018E.00500 | Black | Reel | 500 m | Order online |
Specifications
Product Overview
| Suitable Applications | 1 PR Audio snake cable for mobile applications |
|---|

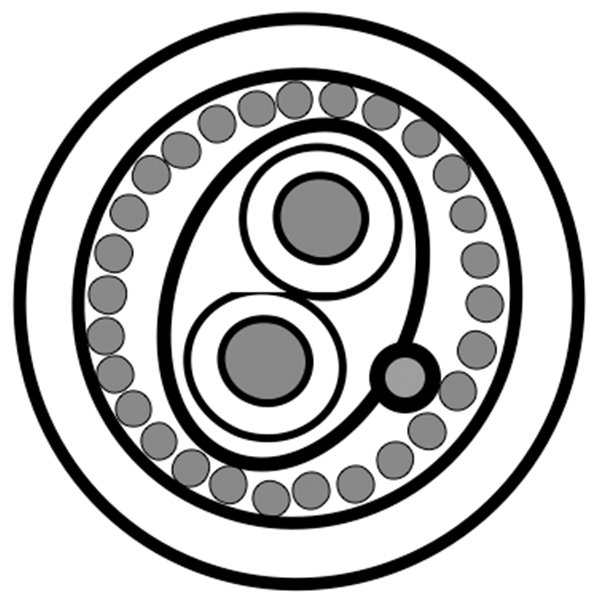

Construction Details
| Inner Jacket Table Notes | Jacket single element |
|---|
Conductor
| Size | 26 |
|---|---|
| Stranding | 18x38 |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Color Code | Red & White |
Inner Shield
| Material | Tinned Copper (TC) |
|---|---|
| Coverage | 90% |
Outer Shield
| Material |
|---|
| Tinned Copper (TC) |
| Tinned Copper (TC) |
Inner Jacket
| Material | TPE - Thermoplastic Elastomer |
|---|
Outer Jacket
| Material | TPE - Thermoplastic Elastomer |
|---|---|
| Nom. Diameter | 4.50 mm |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 148 Ohm/km |
|---|---|
| Nom. Capacitance Cond-to-Cond | 70 pF/m (21 pF/ft) |
Mechanical Characteristics
Bend Radius
| Installation Min. | 70 mm |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|
History
| Update and Revision | Revision Number: 0.103 Revision Date: 09-07-2025 |
|---|
