MICROPHONE CABLE 24 AWG FRNC/LSZH-C
MICROPHONE CABLE 24AWG FRNC/LSZH-C
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
46349CH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 46349CH.00500 | Black | Reel | 500 m | 8719605007407 | Order online |
| 46349CH.001000 | Black | Reel | 1,000 m | 8719605007391 | Order online |
Specifications
Product Overview
| Suitable Applications | Microphone cable |
|---|

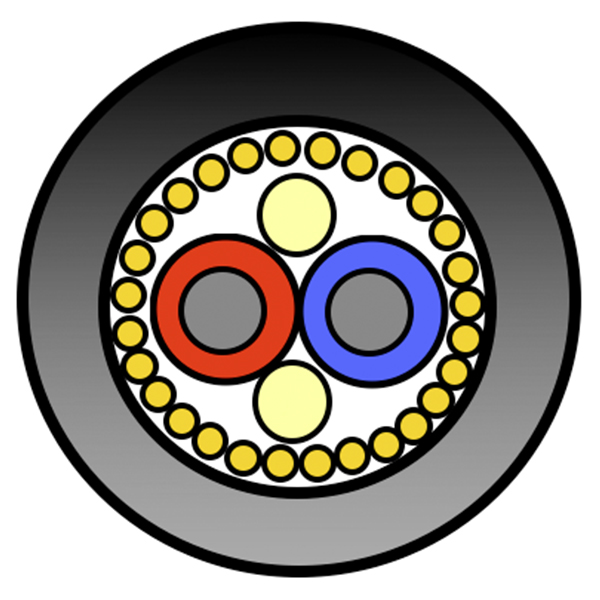

Construction Details
Conductor
| Size | 24 |
|---|---|
| Stranding | 32x38 |
| Material | BC - Bare Copper |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Nom. Insulation Diameter | 1.45 mm (0.0571 in) |
| Color Code | Red, Blue |
Outer Shield
| Shield Type | Spiral Serve / Screen |
|---|---|
| Material | Bare Copper (BC) |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 6.10 mm |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 78 Ohm/km |
|---|---|
| Nom. Capacitance Cond-to-Cond | 60 pF/m (18 pF/ft) |
| Nom. Capacitance Cond-to-Shield | 110 pF/m (34 pF/ft) |
Mechanical Characteristics
Temperature
| Storage | -15°C To +60°C |
|---|
Bend Radius
| Installation Min. | 61 mm |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-3-24 |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
History
| Update and Revision | Revision Number: 0.176 Revision Date: 09-07-2025 |
|---|
