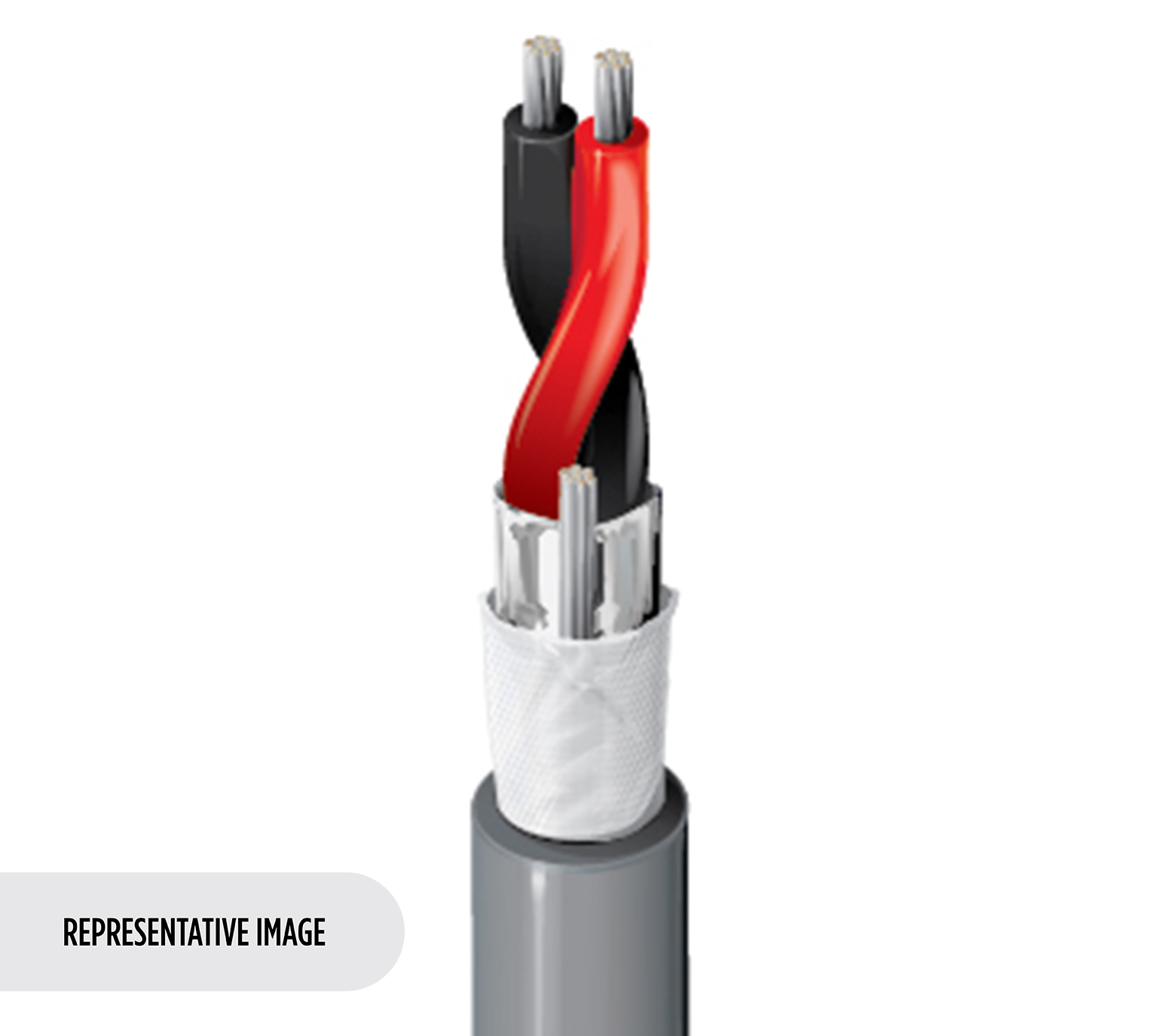

Indoor/Outdoor Stadium, Line Level Audio Cable, 1 Pr #22 Str TC, O/A Foil, CPE Jkt, CMR, Waterblocked
Line Level Audio Cable, 1 Pair 22 AWG (7x30) Tinned Copper, PP Insulation, Overall Beldfoil® Shield, Waterblocking Tape, CPE jacket, CMR
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
2451RW is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 2451RW 0101000 | Black | Reel | 1,000 ft | 612825384847 | Order online |
| 2451RW 0105000 | Black | Reel | 5,000 ft | 612825384854 | Order online |
Specifications
Product Overview
| Suitable Applications | Line level audio; Low voltage analog signals; Dual-purpose indoor/outdoor with no transition, Below-grade, Wet locations |
|---|
Construction Details
| Waterblocking | Waterblock Tape |
|---|---|
| Overall Cable Diameter (Nominal) | 0.158 in (4.01 mm) |
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 22 AWG |
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PP - Polypropylene |
| Nom. Thickness | 0.009 in (0.23 mm) |
| Nom. Insulation Diameter | 0.046 in (1.2 mm) |
| Color Code | Black & Red |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 22 AWG (7x30) TC |
Outer Jacket
| Material | CPE - Chlorinated Polyethylene |
|---|---|
| Nom. Thickness | 0.023 in (0.58 mm) |
| Nom. Diameter | 0.158 in (4.01 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 14.1 Ohm/1000ft (46.3 Ohm/km) |
|---|
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 14.5 Ohm/1000ft (47.6 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 34 pF/ft (110 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 67 pF/ft (220 pF/m) |
| Nom. Characteristic Impedence | 45 Ohm |
| Nom. Delay | 1.5 ns/ft |
| Nom. Inductance | 0.17 μH/ft (0.56 μH/m) |
| Nom. Velocity of Prop. | 66% |
| Max. Current | 2.9 Amps per conductor @ 25°C |
Voltage
| UL Voltage Rating | 300 V (CMR) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 27 lbs (12 kg) |
|---|---|
| Bulk Cable Weight | 13 lbs/1000ft (19 kg/km) |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C to +75°C |
Bend Radius
| Stationary Min. | 1.6 in (41 mm) |
|---|---|
| Installation Min. | 1.6 in (41 mm) |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Water Exposure/Below-Grade Conduit, Indoor, Outdoor, UV Resistance, Aerial - When supported by messenger wire |
|---|---|
| Flammability / Reaction to Fire | UL1666 Riser |
| NEC / UL Compliance | Article 800, CMR |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Print legend includes sequential footage marks. |
|---|
History
| Update and Revision | Revision Number: 0.168 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN. |
