Product Number: 1800F

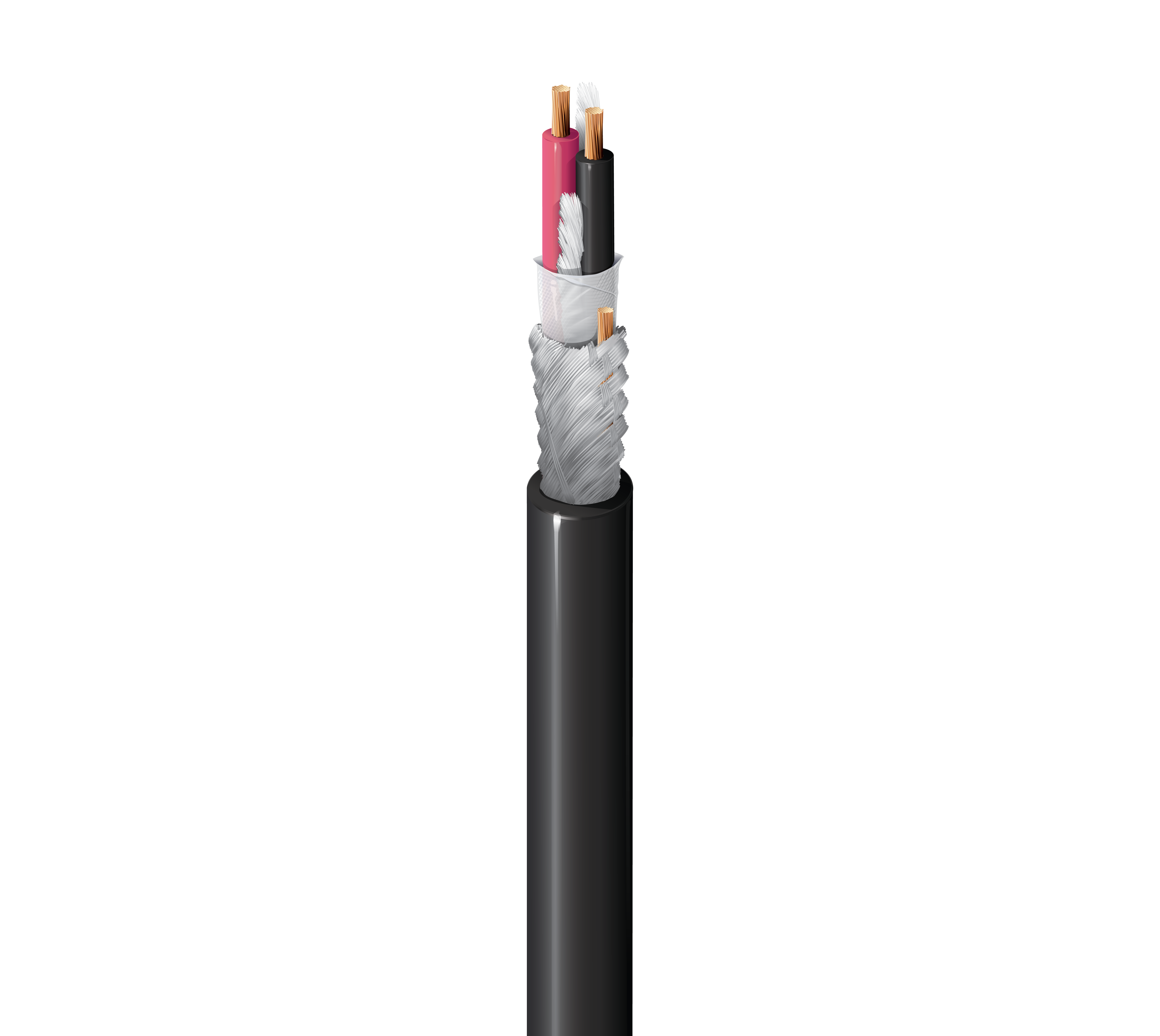

Digital Microphone Cable, 1 Pr #24 Str BC, 95% TC French Braid, PVC Jkt, CL2R, Flexible

Digital Microphone Cable, 1 Pair 24 AWG (42x40) Bare Copper, PE insulation, 95% Tinned Copper French Braid Shield, Matte PVC jacket, CL2R-rated, Flexible

Availability: Global
Status: Active
Orderable items: 9

Ships from and sold by A5 IT.

Part numbers

1800F is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
1800F B59500	Black, Matte	Reel	500 ft	612825122845	C	Order online
1800F B591000	Black, Matte	Reel	1,000 ft	612825122838	C	Order online
1800F B59U1000	Black, Matte	UnReel	1,000 ft	612825122821	—	Order online
1800F G7XU1000	Blue, Matte	UnReel	1,000 ft	612825122876	—	Order online
1800F U90U1000	Gray, Matte	UnReel	1,000 ft	612825122890	—	Order online
1800F G7WU1000	Green, Matte	UnReel	1,000 ft	612825122869	—	Order online
1800F G7VU1000	Red, Matte	UnReel	1,000 ft	612825122852	—	Order online
1800F Z4BU1000	Violet Z4B	UnReel	1,000 ft	612825122906	—	Order online
1800F G8MU1000	Yellow, Matte	UnReel	1,000 ft	612825122883	—	Order online

Specifications

Product Overview

Suitable Applications	Digital microphone; Flexible interconnect cable for digital audio

Construction Details

Overall Cable Diameter (Nominal)	0.211 in (5.36 mm)

Conductor

Element	Pair(s)
No. of Elements	1
Size	24 AWG
Stranding	42x40
Material	BC - Bare Copper

Insulation

Element	Pair(s)
Material	PE - Polyethylene (Foam)
Nom. Thickness	0.017 in (0.43 mm)
Nom. Insulation Diameter	0.058 in (1.5 mm)
Color Code	Red & Black
Notes	HDPE

Outer Shield

Shield Type	French Braid
Material	Tinned Copper (TC)
Coverage	95%
Drainwire Type	26 AWG (30x40) BC
Notes	Paper tape under braid with drain over tape

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.037 in (0.94 mm)
Nom. Diameter	0.211 in (5.36 mm)

Electrical Characteristics

Nom Outer Shield DCR	6.42 Ohm/1000ft (21.1 Ohm/km)

Electricals

Element	Pair(s)
Nom. Conductor DCR	23.7 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	12 pF/ft (39 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	26 pF/ft (85 pF/m)
Nom. Characteristic Impedence	110 Ohm
Nom. Inductance	0.18 μH/ft (0.59 μH/m)
Nom. Velocity of Prop.	76%
Max. Current	3.8 Amps per conductor @ 30°C

High Frequency (Nominal/Typical)

Nom. Insertion Loss (Attenuation)
0.46 dB/100ft
0.67 dB/100ft
0.7 dB/100ft
0.83 dB/100ft
1.04 dB/100ft
1.09 dB/100ft
1.3 dB/100ft
1.66 dB/100ft
1.75 dB/100ft
2.23 dB/100ft
2.89 dB/100ft
3.07 dB/100ft
3.71 dB/100ft
4.53 dB/100ft
4.78 dB/100ft
7.11 dB/100ft

Voltage

Voltage Rating	100 V

Mechanical Characteristics

Max. Pull Tension	40 lbs (18 kg)
Bulk Cable Weight	23 lbs/1000ft

Temperature

UL Temperature	60°C
Operating	-20°C to +60°C

Bend Radius

Stationary Min.	2.1 in (53 mm)
Installation Min.	2.1 in (53 mm)

Standards and Compliance

Environmental Suitability	Indoor - Riser, Indoor
Flammability / Reaction to Fire	UL 1666 Riser
NEC / UL Compliance	Article 725, CL2R
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	AES/EBU
