Product Number: 1512ENH

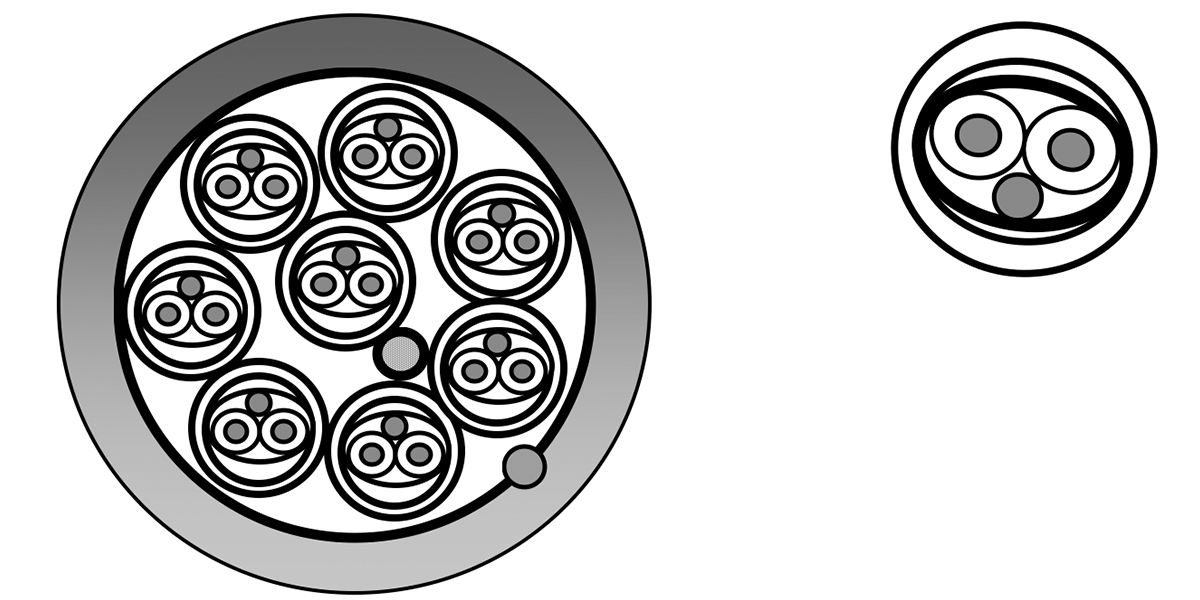

AUDIO ANALOG 8 PAIR 24AWG, BELDFOIL, LSZH

Name: Belden 1512ENH
Brand: Belden
SKU: 1512ENH

ANALOG AUDIO 8 PAIR 24AWG/0.22mm2, BELDFOIL, LSZH

Ships from and sold by A5 IT.

Part numbers

1512ENH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	EAN	Order
1512ENH.00500	Gray	Reel	500 m	8719605001771	Order online
1512ENH.001000	Gray	Reel	1,000 m	8719605001757	Order online

Suitable Applications	8-pair 24AWG halogen-free multi-core cable; For analogue audio

Inner Shield Table Notes	Aluminum inside
Inner Jacket Table Notes	Jacket single element, elements are numbered 1 - 8

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	2.86 mm (0.113 in)

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Thickness	1.00 mm (0.0394 in)
Nom. Diameter	11.70 mm (0.4606 in)

Max. Conductor DCR	88.5 Ohm/km
Nom. Inner Shield DCR	52 Ohm/km (16 Ohm/1000ft)
Nom. Capacitance Cond-to-Cond	92 pF/m (28 pF/ft)
Nom. Capacitance Cond-to-Shield	180 pF/m (55 pF/ft)
Nom. Inductance	0.75 μH/m (0.23 μH/ft)

Max. Pull Tension	610 N (140 lbf)

Installation Min.	175 mm (6.89 in)

Environmental Suitability	Indoor/Outdoor - Euroclass Dca, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance - UL 1581 sec 1200 Black Only
Flammability / Reaction to Fire	IEC 60332-1-2
CPR Compliance	CPR Euroclass: Dca-s1,d1,a1
CENELEC Compliance	EN 50290-2-20
European Halogen Free Standards	IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
UK Regulation Compliance	UKCA Mark
