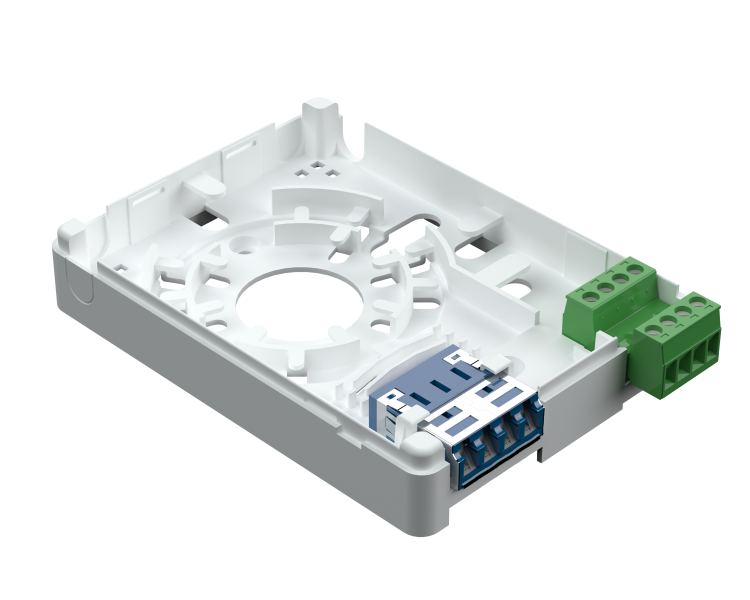

DuetConnect Hybrid Termination Box
DuetConnect HTB 4C/4F LC Quad OS2 Pigtails, Adapters with Shutter, White
- Availability
- Global
- Status
- Active
Specifications
Physical Characteristics (Overall)
| Overall Height | 0.92 in |
|---|---|
| Overall Width | 3.54 in |
| Overall Depth | 5.23 in |
| Front Connection | Flush |
| Packaging | Individually packaged in a box. |
| Weight | 0.161 lbs |
Connectors
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Adapter Sleve | Zirconia-Ceramic | ||
| Front Fiber Connector Body | Plastic - UL94V-0 | Blue | LC Quad |
| Box Assembly | Plastic - UL94V-0 | White | |
| Front Copper Connector Body | Plastic - UL94V-0 | Green |
Construction and Dimensions
| Max Capacity | 4 Fibers, 1 LC Quad Adapter |
|---|
Temperature Range
| Installation Temperature Range | -10°C to 60°C |
|---|---|
| Storage Temperature Range | -10°C to 75°C |
Mechanical Characteristics
Dimensions
| Width | 3.54 in |
|---|---|
| Height | 0.92 in |
| Depth | 5.23 in |
Standards
| UL Rating | Tested to UL2043 for Plenum spaces |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|
Product Notes
| Included Parts | (2) 900μm Pigtails, (4) Slim Splice Protection sleeve 25mm, (2) Self-locking cable tie /4.0, (2) TRI-COMBO PAN HD 6-32 MACH. SCREW 1.25 LG. |
|---|
History
| Update and Revision | Revision Number: 0.19 Revision Date: 02-12-2025 |
|---|
