Connected Train Networks
Strong operational capabilities and enhanced rider experience Speak to an expert
Elements to consider for connected train network systems
The mass transit industry stands on the brink of a transformative era, where Connected Rail Systems and The Connected Train Network are not just concepts but actionable realities. Belden, with its forefront technology solutions, is at the helm of this transformation, ensuring that the deployment of these systems enhances operational efficiencies, safety, and passenger satisfaction across the globe.
On-train networks provide services to all onboard systems. Some relate to train control and operation and strongly affect operational capabilities. Others influence riders’ travel experiences and ability to stay connected to the world outside the train.
Train control systems
Control systems govern functions like speed & braking, automated guidance & door controls—critical devices that typically run on a private, closed network.
Operational systems (e.g., closed-circuit television (CCTV) & public address (PA) systems) perform necessary functions to extend oversight capabilities to onboard environments.
Passenger experience systems ensure riders are remain connected—or information, entertainment or productivity—during the journey.
Train operations systems
Operational systems (e.g., closed-circuit television (CCTV) & public address (PA) systems) perform necessary functions to extend oversight capabilities to onboard environments.
Onboard experience systems
Passenger experience systems ensure riders are remain connected—or information, entertainment or productivity—during the journey.
Key benefits of connected train networks
Onboard automation & surveillance improvements to improve passenger safety & security
Improve onboard information transparency & passenger services to improve passenger experience
Predictive maintenance for rolling stock to reduce unplanned failures & maintenance costs
Automate onboard operations of rolling stock to increase productivity & limit errors
Reduce distance between trains on the same track & operate more trains simultaneously to increase rolling stock utilization
Establishing reliable network connections onboard rolling stock presents unique challenges. The constant vibration of the train in motion complicates calibration of the delicate balance required to manage multiple systems with varying levels of criticality competing for bandwidth across public and private networks.
Key products for connected train networks

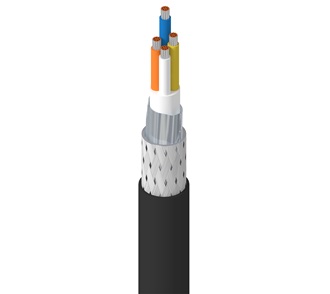

RailTuff Cat 5e, PROFINET, AWG 22 (19),EN 45545 HL 1-3, ECE R118.03
With a design small enough to fit almost any application, the M12 Power Series still offers a high...
Railtuff ® 7, 4PR #24 Str TC, XLPE ins, S/FTP, LSZH Jkt, EN 45545 HL 1-3, ECE R118.03
Achieve simple LTE train-to-ground connections or complex 5G communications with a modular range of...
